China leading dryingtechnology grain drying machine

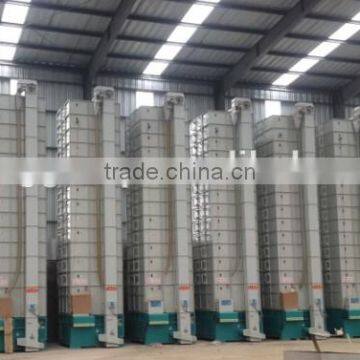

Grain dryers(as the picture I), it have single tower,dual-tower,tri-tower,and multi-tower combination type.This machine special for grains enterprise,plants and managing specialized productions households,under the condition of market economy,improve economic benefit,safe storage for the high moisture grains,development and design this dryer machine for the grains,oil plants,seeds, grazing grass seed and other plants,the technical level of domestic and foreign similar products in the leading level.supporting heat source in the machine as:Coal furnace,rice husk furnace(it can burn straw,halm,wood,bamboo bits and so on),nano-far-infrared,superconduct-heating,steaming,oil,air,gas producer.Except the tirad-stage higher drying new technology and new process,it is our first new design in the market.This machine dryer mainly for the unhusked rice,corn,wheat,bean,rapeseed,seed grain,grass seed and the other granular material.

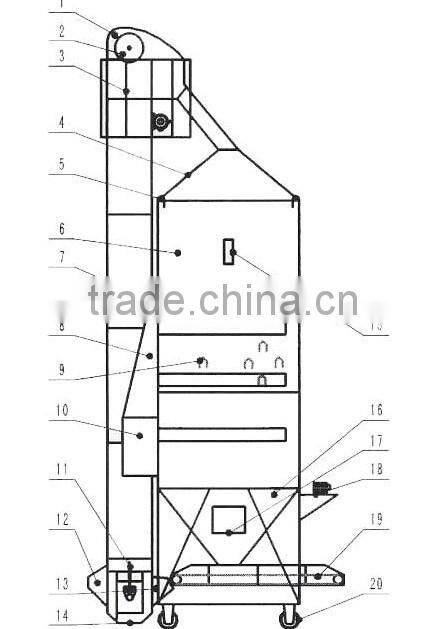

Dryer Structure Diagram
1. Elevator 2.Elevator main drive 3.Guard Bar 4.Manhole 5.Lifting Hook 6. Tower Body 7.Elevator Fixed Bottom 8. Hot-blast Air Pipe 9.Exhaust Duct 10.Hot-blast Main Pipe 11.Elevator with tension governor motion 12.Grain Feed Hopper 13.Cycle Feed Hopper 14.Clean bottom plate 15. Observe Hole 16. Row grain below storage hooper 17. Bottom observe hole 18.Uniform distribution row grain mechanism
Working Principle
The grain which have been cleaned,send to the dryer tower by elevator,stockpiling on the storing grain prothole by dead-load,stop load material.Fire hot blast furnace,close draft fan cooling resist,open draft fan hot blast resist,open draft fan supply heat air.After one hour start the row grain cycle facility,the grain will be Uniform distribution cycle move,contact with hot blast then heater,the moisture of the grain will be discharge from inner to outer,till reach dryer requirement.Then open the below fast row grain hole make the grain out of the dryer.After finished dryer,High moisture grain,it is control the reduce moisture scope according to the requirement.Single tower cycle dryer is batch cycle,have dry and cooling functions design.Dual-tower combined type,composition by the heat-cool tower and Dual-tower.Tri-tower or Multi-tower combination,composition by plural heat tower and one cooling tower, it is continuation working type,it can be satisfied with different variety reduce moisture 0.5-6% for one time,if reduce moisture more than 7-20%,it will be reduce the capacity.
Raw materials:
Technical parameters of small scale stationary grain dryer:
model |
DY30 |
capacity |
30 |
Heat rate |
0.15-0.6 |
Size |
4*2.5 |
height |
5-7 |
Reduction of moisture |
3%-10% |
Heating medium |
clean air |
All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and also can supply the services of solving the problems occured during the transaction, such as customs cleaning.
1.Pre-sale services:
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investment
(1) Select equipment model;
(2) Design and manufacture products according to clients’ special requirement;
(3) Train technical personnel for clients.
2.Services during the sale:
Respect clients; devote ourselves to improving the total value of clients.
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients’ worries.
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
(4) Examine the equipment regularly;
(5)Take initiative to eliminate the troubles rapidly at site;
(6) Distribute the guarantee fittings door-to-door;
(7)provide perfect service;
(8)Provide technical exchanging;
(9)Provide maintenance for big items.
Your prompt inquiry is highly appreciated. I will reply you asap when I get your inquiry.
Henan Doing Mechanical Equipment Co,Ltd. Is a professional manufacturer of grain dryer, We have been in stationary dryer manufactuering industry for 40 years. With rich experiences, our engineer team helps customers design different stationary grain dryer machines with different capacities .
Any more question about grain dryer , please feel free to contact us at any time.
