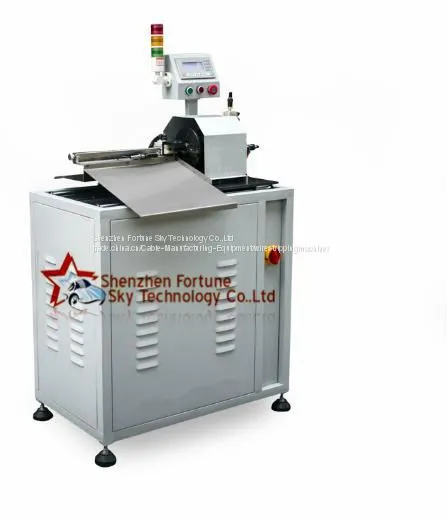

Fully Automatic Rotary-Cut Hose Cutting Machine
Machine Working Video
Applicable materials: PE, PC, PP, PVC, ABS, PS, PET tubes, Hose and etc.
Features
1.) Precise control of length, size can easily be changed with fixture.
2.) With plastic extruder automatic cutting, without manual guarding.
3.) No chipping, smooth incision.
4.) No indentation, no scratches, no deformation;
5.) Diameter from10mm to 100mm can be customized.
6.) Thickness of pipe from 0.5mm to 6mm can be cut without chips.
7.) Special pipe can be assigned with special devices and cutting tools.
8.) Design for different specifications and different materials, flexibility, fast processing.
Technical Parameters:
Power supply: 220V / 360V 450W
Weight: 70kg
Speed: automatic speed, step-less speed
Maximum cutting tube: 100mm
Cut-off length: 3mm-1000mm (or longer)
Appearance size: 1300x800x1100 (mm)
After-sales warranty:
Machine warranty for one year, life-long maintenance
1. This machine has the advantages of no chipping, no noise, low power, etc. It has obvious advantages compared with the lifting knife cutting machine. It has the advantages of energy saving, no waste of raw materials, low cost and manual processing burr, which is the first choice for business cutting equipment. Pipe cutting end smooth, vertical, cut than the gate-type shear-shaped deformation of the mouth. Particularly suitable for cutting PP-R, PE, PP, PVC pipes and rubber pipes. Specifications are: φ20-φ75, φ20-φ110, φ75-φ160, φ75-φ160 Another φ75-φ250, φ110-315 for users to choose, but also according to customer requirements for non-standard design. The machine is equipped with the advantages of no dust, high efficiency, smooth cutting, low energy consumption, no pollution and so on. It is a good equipment for all enterprises to choose cutting technology.
(1) Equipment Overview:
The cutting machine is composed of the lower frame, upper cover, cutting main body, height adjustment and other parts.
The lower frame is welded by square tube, and it is mainly used for cutting body. It is equipped with guide rail, guide rail and linear sliding seat. Four bottom feet are welded with four bottom plates.
Cutting the main body by the table board, support plate, bearing, rotating shaft, sliding sleeve, feed cylinder, cutting devices and compression devices and other components.
(2) Machine features:
2. The machine features no chips, no noise, low power, etc., compared with the lift knife cutting machine has obvious advantages, with energy saving, no waste of raw materials, low cost, saving manual processing burr, is the first choice for business cutting equipment replacement . Pipe cutting end smooth, vertical, cut than the gate-type cutting machine without cutting deformation.
