Manufacturer Directly Selling Logs Chipping Machine With Downside Outlet

Manufacturer Directly Selling Logs Chipping Machine With Downside Outlet photo-1
US$ 1,600 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
China Dafu
Model Number:
type2L*600
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name China Dafu
Model Number type2L*600

Specifications

the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.

Disk Timber Chipping Machine
If you need Drum Chipping Machine, please contact us.

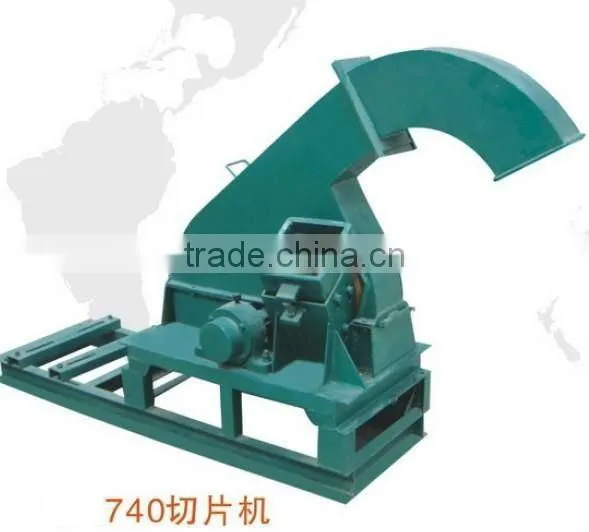

Introduction of Disk Timber Chipping Machine :

Screw plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
Timber Chiping Machine

Specifications of Disk Timber Chipping Machine
Mobel of machine 2L×640 2L×1000
Diameter of cutter head(mm) 640 1000
Rotary speed of cutter head(r/min) 970 740
Quantity(sheet) of fly cutter 6 6
Length of wood chip,thickness(mm) 15-35 2-3 15-35 3-7
Mode of feeding Declination Declination
Dimension of feeding opening(mm) 150×140 250×250
Productive Capacity (t/h) 3-5 5-8
Power of electric motor(kw) 37 75
Maximum diameter of cutting wood(mm) 100 200
Mode of discharging Up Up
Weight of complete machine (kg) 1192 3375
External dimension (length×width×height) 2002×1175×1360 2820×1838×1892
Notice: Any change of Timber Chipping Machine technical data shall not be advised additionally.
