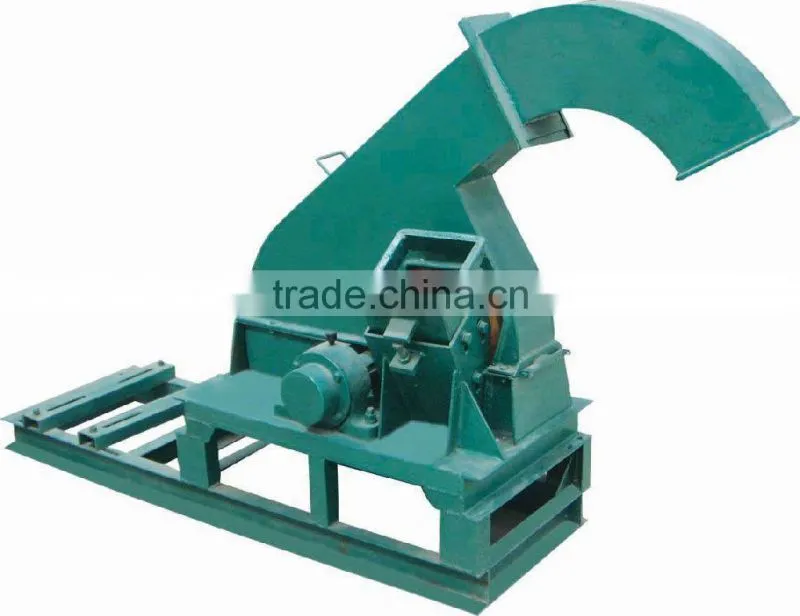

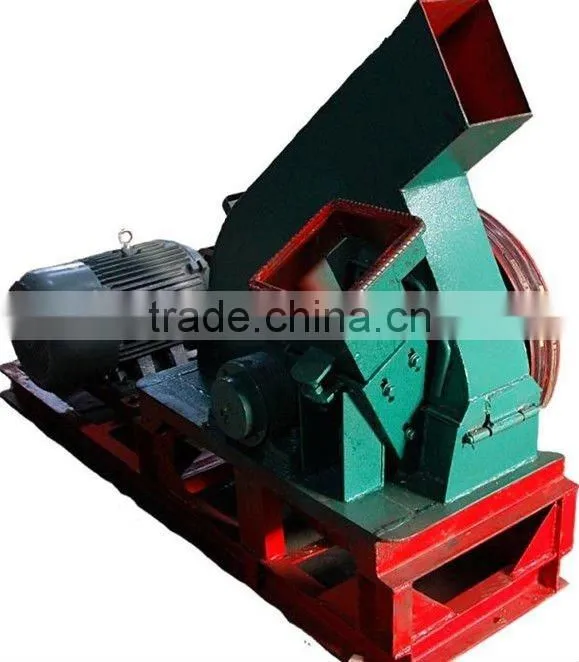

Timber Chipper Machine in Forest Industry

Name: Timber Chipper Machine in Forest Industry
Brand: DAFU
SKU: 138008289

US$ 1,500 - 5,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

DAFU

Model Number:

2L800-type machine

Henan Dafu Mechanical Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name DAFU

Model Number 2L800-type machine

Specifications

Wood chipping machine is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc.

Wood chipping equipment introduction:

The chipper supplied by us are special wood chipping machine to produce high quality wood. This machine is widely applied to papermaking, shaving board and MDF area or wood produce base.
The chipper highly structured, reasonable structure, easy installation, operation and maintainence, high production capacity. When cutting the raw wood, the wood chips is high quality and also the chips length can regulate freely in the defined range.
The chipper is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
The chipper can be made by user specific requirement.

Specifications of Disk Timber Chipping Machine

Mobel of machine	2L×640	2L×1000
Diameter of cutter head(mm)	640	1000
Rotary speed of cutter head(r/min)	970	740
Quantity(sheet) of fly cutter	6	6
Length of wood chip,thickness(mm)	15-35 2-3	15-35 3-7
Mode of feeding	Declination	Declination
Dimension of feeding opening(mm)	150×140	250×250
Productive Capacity (t/h)	3-5	5-8
Power of electric motor(kw)	37	75
Maximum diameter of cutting wood(mm)	100	200
Mode of discharging	Up	Up
Weight of complete machine (kg)	1192	3375
External dimension (length×width×height)	2002×1175×1360	2820×1838×1892
