Specifications
wood chipping machinecan cut log and small-diameter log with less than 200mm diameter,
CE,ISO9001:2000
big scale production
China high efficient wood chipping machine

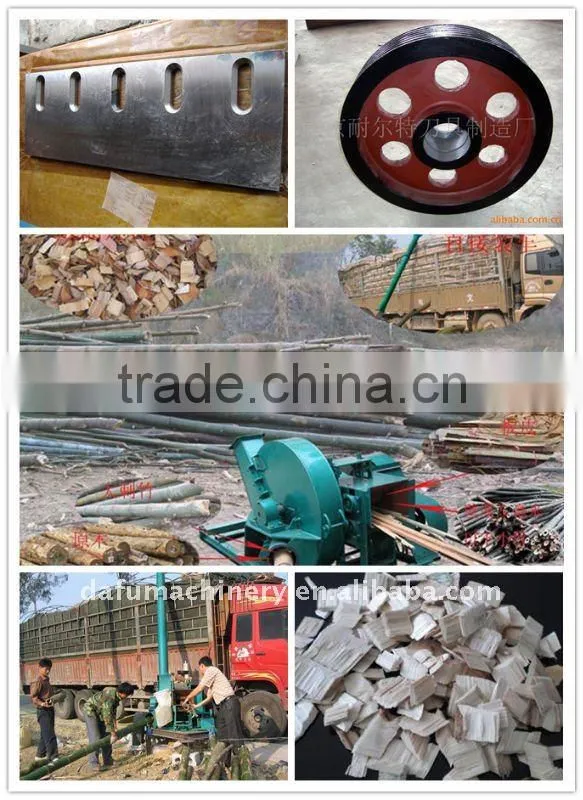

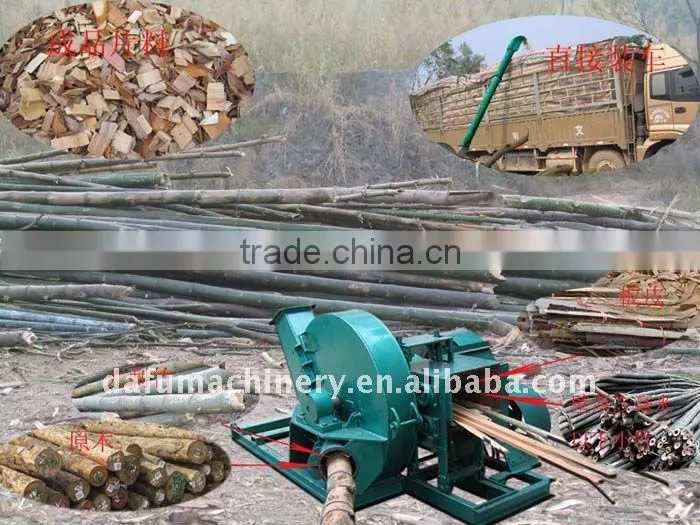

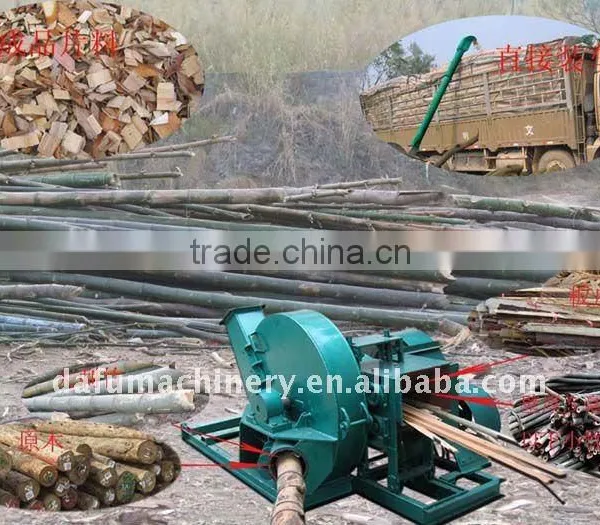

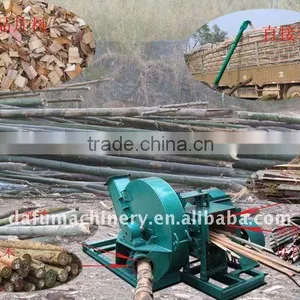

Introduction of wood Chipping Machine:
Screw plate-shaped chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc
Specifications of Disk Timber Chipping Machine
Model of machine |
2L×640 |
2L×1000 |
Diameter of cutter head(mm) |
640 |
1000 |
Rotary speed of cutter head(r/min) |
970 |
740 |
Quantity(sheet) of fly cutter |
6 |
6 |
Length of wood chip, thickness(mm) |
15-35 2-3 |
15-35 3-7 |
Mode of feeding |
Declination |
Declination |
Dimension of feeding opening(mm) |
150×140 |
250×250 |
Productive Capacity (t/h) |
3-5 |
5-8 |
Power of electric motor(kw) |
37 |
75 |
Maximum diameter of cutting wood(mm) |
100 |
200 |
Mode of discharging |
Up |
Up |
Weight of complete machine (kg) |
1192 |
3375 |
External dimension (length×width×height) |
2002×1175×1360 |
2820×1838×1892 |
