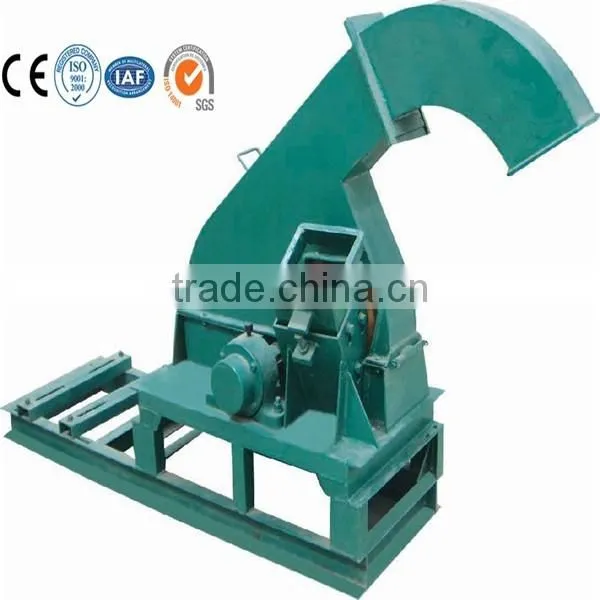

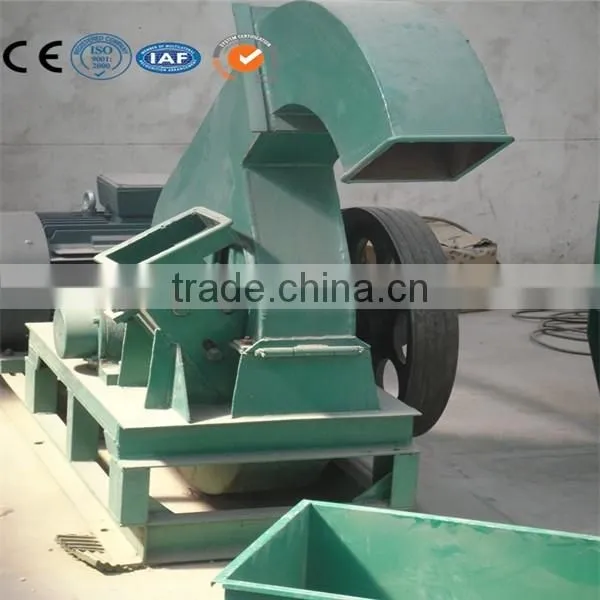

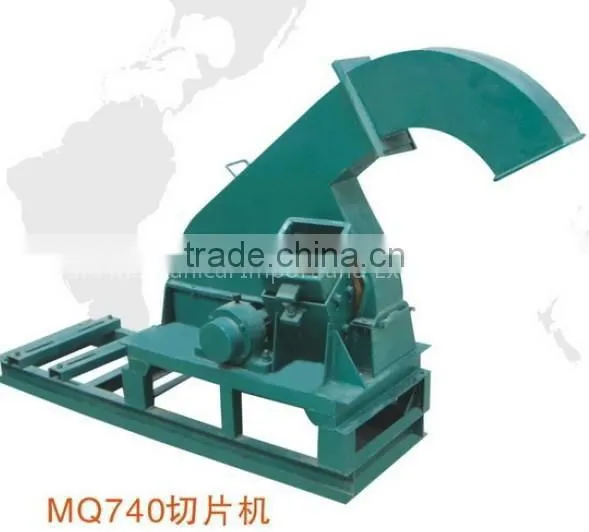

Best Selling Disk Timber Chipping Machine

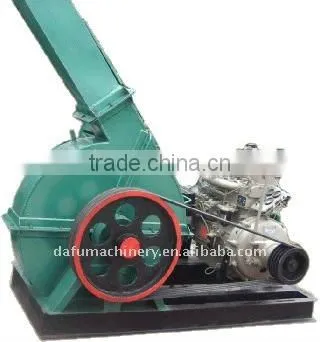

Disk timber chipping machine China famous brand wood cutting machine with high quality can cut log and smalldiameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc. You can choose the motor such as electric motor or diesel motor.
Wood chipping equipment introduction:
1,The chipper supplied by us are special wood chipping machine to produce high quality wood. This machine is widely applied to papermaking, shaving board and MDF area or wood produce base.
2,The chipper highly structured, reasonable structure, easy installation, operation and maintainence, high production capacity. When cutting the raw wood, the wood chips is high quality and also the chips length can regulate freely in the defined range.
3,The chipper is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
4,The chipper can be made by user specific requirement.
The working principle
It is using a blade cutter and high-speed airflow impact collision double crush functions and at the same time expected to complete the micro-separation processes. Crushed in the process of cutting blades, rotor high-speed airflow, with the cutting blade rotation direction, the material in the flow acceleration, and repeated at the same time the impact of materials subject to double smash, smash the accelerated rate of materials.
Specifications of Disk Timber Chipping Machine
Mobel of machine |
2L×640 |
2L×1000 |
Diameter of cutter head(mm) |
640 |
1000 |
Rotary speed of cutter head(r/min) |
970 |
740 |
Quantity(sheet) of fly cutter |
6 |
6 |
Length of wood chip,thickness(mm) |
15-35 2-3 |
15-35 3-7 |
Mode of feeding |
Declination |
Declination |
Dimension of feeding opening(mm) |
150×140 |
250×250 |
Productive Capacity (t/h) |
3-5 |
5-8 |
Power of electric motor(kw) |
37 |
75 |
Maximum diameter of cutting wood(mm) |
100 |
200 |
Mode of discharging |
Up |
Up |
Weight of complete machine (kg) |
1192 |
3375 |
External dimension (length×width×height) |
2002×1175×1360 |
2820×1838×1892 |
If you are interested in themachineryby us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!
Henan Dafu Mechanical Im and Ex Co.,Ltd
Tel: 86-371-67822251
Website:
https://img13.fr-trading.com/
