Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale

Name: Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale
Brand: DAFU
SKU: 138007741
Availability: InStock

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale thumbnail-1

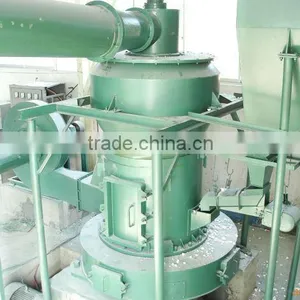

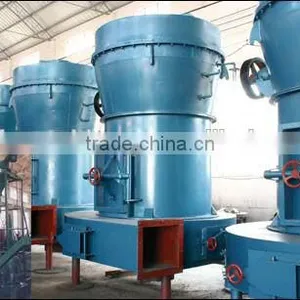

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale thumbnail-2

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale thumbnail-3

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale thumbnail-4

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale photo-1

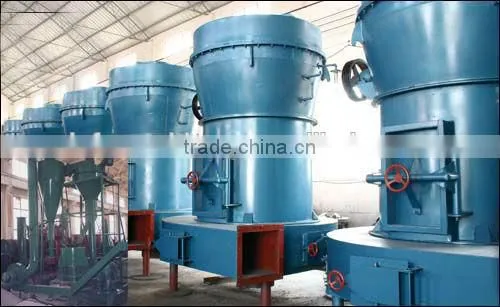

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale photo-2

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale photo-3

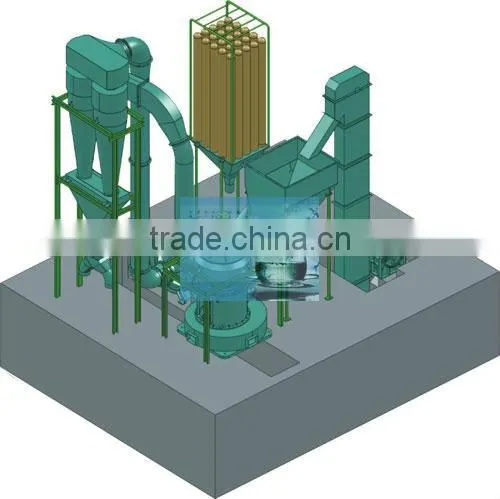

Higher Performance High Pressure Suspension Grinder With Favorable Price for Sale photo-4

US$ 4,000 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Raymond Mill

Motor Type:

Other, according to model

Contact Supplier Request Quote Chat Now

Henan Dafu Mechanical Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Tianjin or Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Raymond Mill

Motor Type Other, according to model

Power(W) 7.5kw-

Capacity(t/h) depend on the model

Place of Origin Henan, China

Brand Name DAFU

Model Number YGM series

Dimension(L*W*H) depend on the model

Weight According to model

Certification CE&ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

specifications

strong grinding force

expanding grinding area 30-80mesh

expanding grinding area

reasonable price

long service time

Company Information

Henan Dafu Mechanical Import and Export Co., Ltd.

Henan Dafu Mechanical Import and Export Co., Ltd. is specialized in manufacturing

mining machinery with more than 20 years' development and is located in Zhengzhou,
Henan Province in China.

Mian production line

Gypsum Powder / Board Production line	Gypsum Block Production line	Sulfur Powder Production line
Wood Charcoal Producing Line	Stone Production Line	Sand Making Line
Autoclave Aerated Concrete Production Line	Autoclaves/ oil press machine	wood processing machine

the products have won many awards of varied levels and passed the attestation of ISO9001 Quality Control System SGS of Sweden. Our clients spread all over the country. Products are sold to South Korea, Taiwan, Indonesia, Vietnam, Portugal, Germany and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.

Product Description

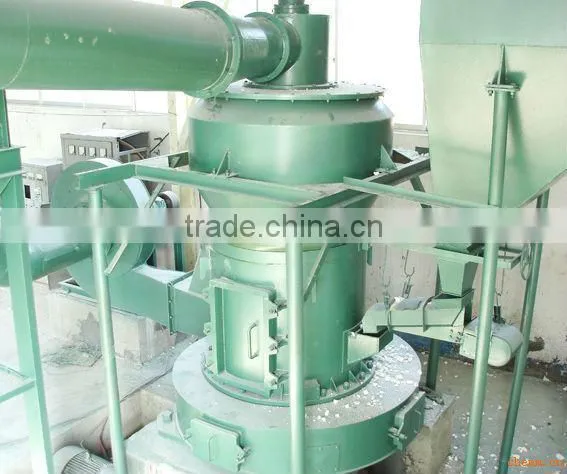

High Pressure Suspension Grinder

Introduction of High Pressure Suspension Grinder:
High Pressure Suspension Grinder is mainly applied to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical, and mining, etc. it can produce powder from various non-flammable and non-explosive mineral materials with Mohs hardness below 9.3 and humidity below 6%, such as quartz, feldspar, calcite, talcum, barite, fluoride, Xircom, cinder, white lime, cement clinker, activated carbon, dolomite, granite, soft coal, coking coal, lignite, magnesia, chromium oxide green, gold ore, red clay, clay, kaolin, coke, coal Gangue, porcelain clay, kyanite, fluorspar, bentonite, medicinal stone liparite, diabase, pyrophyllite, shale red stone, emeraldite, basalt, gypsum, graphite, carborundun, heat insulating material, etc.

Features of the High Pressure Suspension Grinder:

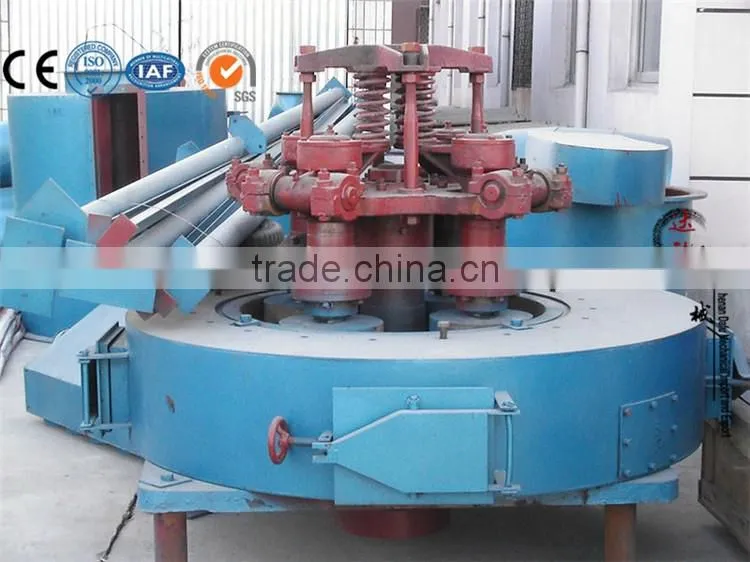

1. Compared with the common Raymond grinding mill under the same power conditions, the capacity can be increased by 10%, under the performance of high-pressure springs, the rollers grinding pressure on raw materials can be raised by 1500kgf.
2. All the mineral materials with Mohs hardness below 9.3 can be crushed.
3. The final product size ranges from the maximum particle diameter of 0.95mm (20mesh) to the finest diameter of 0.038mm (400 mesh). A few materials can reach 0.013mm (1000 mesh).
4. Its dust-removing effect fully meets the national dust discharge standard.
5. The classifier is easy for adjustment.
6. The grinding device adopts a superposition multi-grade sealing with good sealing performance.

spacifications of High pressure Suspension Grinder

Type	Roller			Ring		freeding size(mm)	Fineness of product(mm)	power(kw)
Type	No	Diameter(mm)	Height(mm)	Inside Diameter(mm)	Height(mm)	freeding size(mm)	Fineness of product(mm)	power(kw)
YGM65	3	210	150	650	150	<15	0.613-0.033	15
YGM75	3	260	150	780	150	<15	0.613-0.033	18.5
YGM85	3	270	140	830	140	<20	0.613-0.033	22
YGM85B	3	270	150	830	150	<20	0.613-0.033	22
YGM95	4	310	170	950	170	<25	0.613-0.033	37

Notice: Any change of High Pressure Suspension Grinder technical data shall not be advised additionally.

Notice: Any change of Raymond Mill technical data shall not be advised additionally.

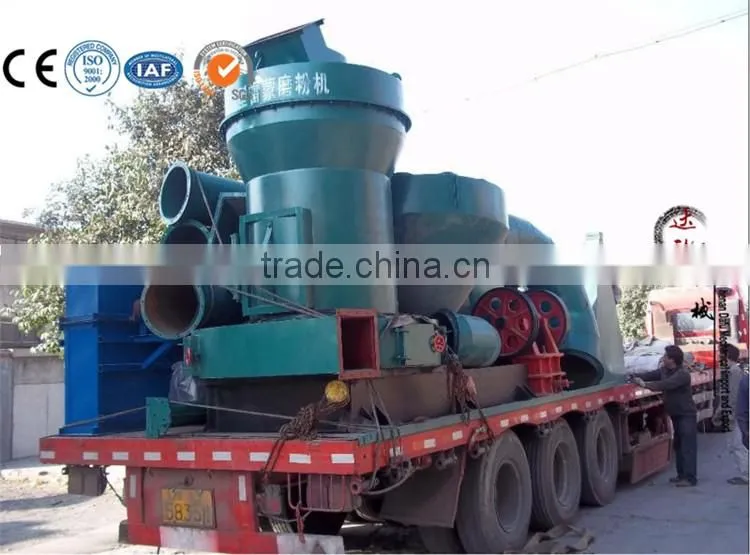

Packaging & Shipping

Our machines and equipments are packed in standard package that fit for long distance road transportation and shipping. We ensure our customers can receive the undamaged machine in good condition.

Packaging Details:

standard export packing, 20ft, 40ft container. equipment fittings,electric motor and power cabinet

will be packed in wooden case. bulk

Delivery Detail:

10-30 working days after receiving the payment

Our Services

One year free warranty

Technician-online support

Email to solve

Engineers available to service machinery overseas

FAQ

Why choose us?

high quality

The products have won many awards of varied levels and passed the attestation of ISO9001 Quality Control System SGS of Sweden. Our clients spread all over the country. Products are sold to South Korea, Taiwan, Indonesia, Vietnam, Portugal, Germany and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.

How to decide the type of equipments we need?

Please show us the packing details ,the usage of your products and the capacity of the machinery and so on. We will show you suitable type.

Note

If you are interested in the Raymond Mill by us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!
