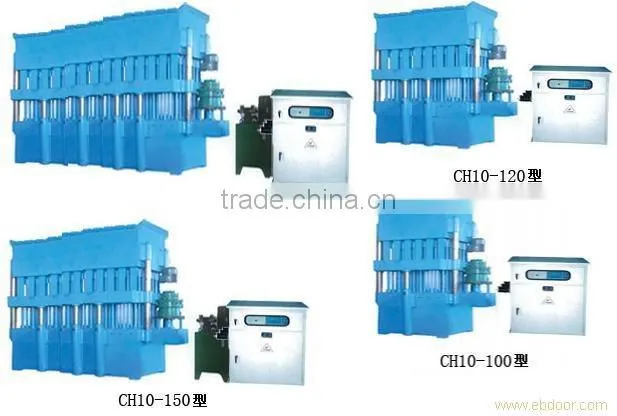

Help CenterProfessional Gypsum Board Production Line
Related Products
-
Gypsum Powder Production Line 2014 DAFUUS$ 2,000 - 250,000MOQ: 1 Set -
Gypsum Powder Producing Equipment With30,000 Tons Annual OutputUS$ 1,000 - 20,000MOQ: 1 Set
-
High Technology Gysum Powder Production LineUS$ 3,000 - 4,000MOQ: 1 Set
-
High Efficiency Gypsum Plaster Production LineUS$ 99,999 - 299,999MOQ: 1 Set
-
China Popular Gypsum Powder MachineryUS$ 99,999 - 299,999MOQ: 1 Set
Gypsum board production line:
1. Capacity
2 million m2/y~50 million m2/y (thickness of 9.5mm)
2. Automation Fully automatic
3. Drying system Using hot air for drying
4. Fuel: Coal, natural gas, heavy oil and diesel oil
5. Main materials
Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp (adding selectively according to different raw materials and kinds of products) Quantity of raw material required for producing per m2 gypsum board (referenced data) (thickness of gypsum board: 9.5mm)

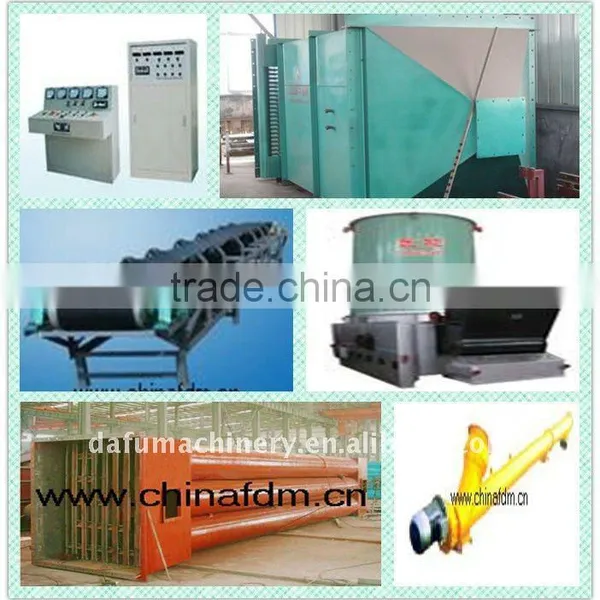

Gypsum board production line is the equipment producing gypsum boards that are new building materials. The process is: gypsum slurry is made from plaster/ water and other additives, in a continuous mixer. This slurry spreads on the shielding paper in a uniform stream, combination with down paper at the shaping station. The slurry is complete sealed with the up-down paper through extrusion shaping machine and form regular board. Once formed, the board travels with steady speed on a series of setting belts. During this journey, the plaster core has time to set or harden. At the shear, the long train of board is cut into panels of specific length. These cut boards are then turned over and passed into a multi-level dryer. During the drying period, the excess water, which was required to form the initial slurry is gently evaporated off. After the boards have dried they are trimmed and stacked to form pallets. These pallets are then placed in the warehouse. The production line includes three main parts: raw material warehouse, heat power system and joint settings.
Raw material Specification:
Calcined gypsum powder
Fineness 0.2mm,Remnant 10%
Initial set time 3.5-5.5 minutes
Final set time 7.5-10.5 minutes
Crystal water 4.5%-5%
Half-water gypsum powder 65%
Bending strength (2 hours) 1.8 Mpa
