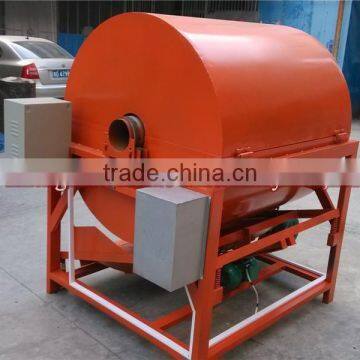

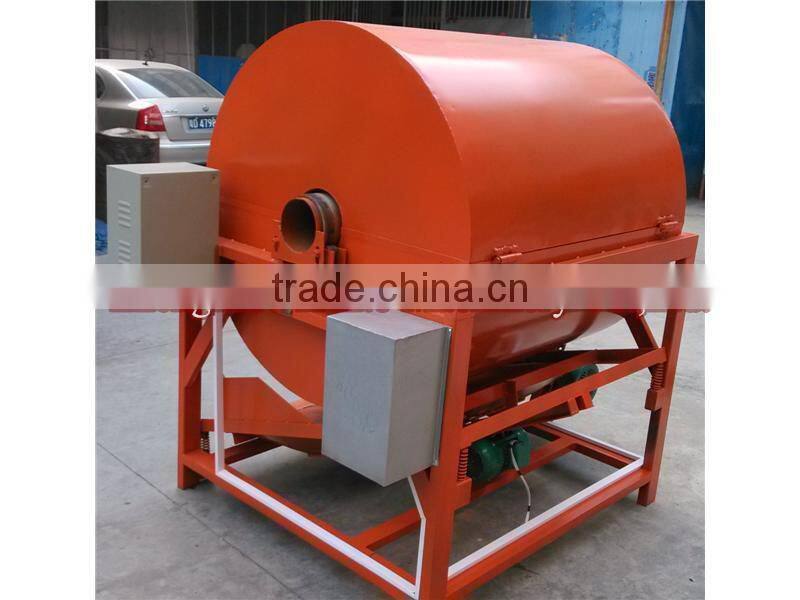

Printed Circuit Board Recycling Equipment Easy To Operate
1.Machine introduction:
1)This Printed Circuit Board Recycling Machine (electronic component dismantling machine) is mainly used to dismantle the electronic component from PCB of computer, TV set, and other electrical application facility. The PCB is heated by 7 electric resistance heaters to 250℃ to melt solder. The inner drum will spin out the solder and electronic component through 20mm*20mm screen from PCB board inside the drum. Then, the solder will be separated from the electronic component through vibrating screen 4mm*4mm. Solder recovery rate is 80%, and the purity is 60% as there is small pieces electronic component inside the solder. The recycled solder will be refined in an electrical resistance furnace to get the purity of 95%.
2)Compared with manual way, this dismantling equipment is automatical operation, high efficient, lowcost, small covering area, easy operation, and no dust pollution. The PCB after dismantled, called base board, can be recycled by physical methods to get copper and other non-metal material. The dismantling rate can be to achieve 95%.
3)And its shell is double-layer and heat preservation.
2.Technical parameters:
Model |
HTO-HSJ200 |
Model of reduction gears |
Zqh650 ratio of 23.34 |
Power |
15.2kw |
Voltage |
110v |
Capacity |
200kg/h |
Drum screen |
20*20mm |
Vibrating screen |
4*4mm |
Dismantling rate |
95% |
Dimension |
2000*1200*1000mm |
Machine weight |
1.2ton |
Packing |
Fumigation-free wooden case |
3.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
