Construction Using Foam Concrete Making Machine

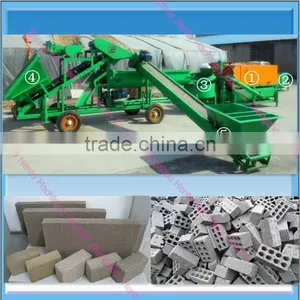

1.Machine introduction:
This line use the technology of pump transportation.The whole process line include four parts: feeding conveyor, concrete mixing machine, foam machine used in block , foam agent and pump, the transportation capacity is 10~15m³/h, the max level transportation distance is 50m, the max horizon distance is 400m.
2.Applications:
Floor/roof casting
Block
Wall panel
Framed wall and house structure casting
Subway and coal mining backfill
3.Machine features:
1).the machines is with wheels, then the process line is easy to move, so it can be used for many places, such as construction plant, block plant, and so on.
2).Light weight, the main machine is only 600kg, you also can equip with the forklift, it will save more time, labour and costLow consumption, the whole line is about 15kw.
3).Use the pump to transport the cement foam
It can use plant type foam agent, animal type foam agent and synthetic foam agent.
You can adjust the volume of the raw material.
4.Working Flow Chart:
5.Working Scene:
6.Main parameters:
Model |
HTO-BM80 |
Capacity |
10-15(m3/h) |
Pump pressure |
1.5Mpa |
Power |
11kw for foam generator/2.2 kw for mixer/1.5kw for convey belt |
Horizon transpotation distance |
400m |
Level transportation distance |
600mm |
7.Contact information:
If you need further information, please contact us freely, we will do our best to cooperate with you.
