Best Price Grain Conveyor/ Grain Elevator
1.Machine Introduction of Best Price Grain Conveyor/ Grain Elevator :
Grain Elevator is an advanced material conveying machine. It is compact, flexible and labor-saving. It can load and unload quickly and easily. It can convey by positive pressure separate or suction by vacuum separate or convey by positive and vacuum pressure at the same time after a simple combination. It can be used to convey granular materials on horizontal, inclined and vertical such as soybean, rice, wheat, corn, sorghum, barley malt, plastics and resins etc.Grain Pneumatic Conveyor is widely used to handle materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in barn, farm, railway stations, docks, grain processing and brewing industries. When using this machine to convey grains, grains have to be selected and dehydrated.
Grain Elevator
is composed of the high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. Its working principle is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube (WK-20 and WK-30 through the dust collector).
1. Strong power and big conveying quantity
2. Flexible application and grain hanging conveyor
3. Advanced technology and cost-saving
4. Safe and simple installation and commissioning.
5. Simple structure and less&easy maintenance.
6. High efficiency and energy-saving.
7. Easy operation.
2.Technical Parameters of Best Price Grain Conveyor/ Grain Elevator :
Machine Model |
HTO-WK5 |
HTO-WK10 |
HTO-WK15 |
HTO-WK20 |
HTO-WK30 |
Convey capacity(t/h) |
5 |
10 |
15 |
20 |
30 |
Power of Air Blower (KW) |
7.5 |
11 |
15 |
22 |
37 |
Power of Close the wind machine(KW) |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
Total power(KW) |
8.25 |
11.75 |
16.1 |
23.1 |
38.5 |
Air Pressure (water column/mm) |
1000 |
1500 |
1600 |
2200 |
3300 |
Air mass flow(m3/H) |
800 |
1500 |
1600 |
3000 |
3500 |
Feed pipe diameter(mm) |
124 |
150 |
150 |
160 |
160 |
Horizontal maximum transmission distance(m) |
30 |
50 |
70 |
80 |
100 |
Max lift height (m) |
5 |
12 |
12 |
18 |
20 |
Total weight(KG) |
450 |
550 |
650 |
800 |
1000 |
Dimension(length * width * height) mm |
1780*1058*1550 |
1780*1058*1550 |
2080*1148*1800 |
2350*1350*2250 |
2600*1600*2500 |

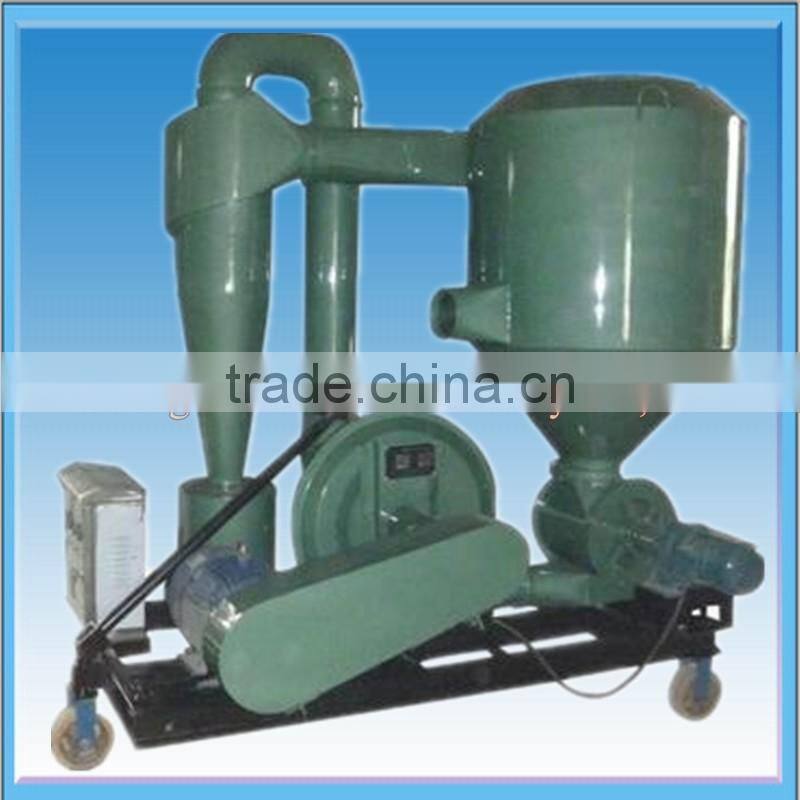

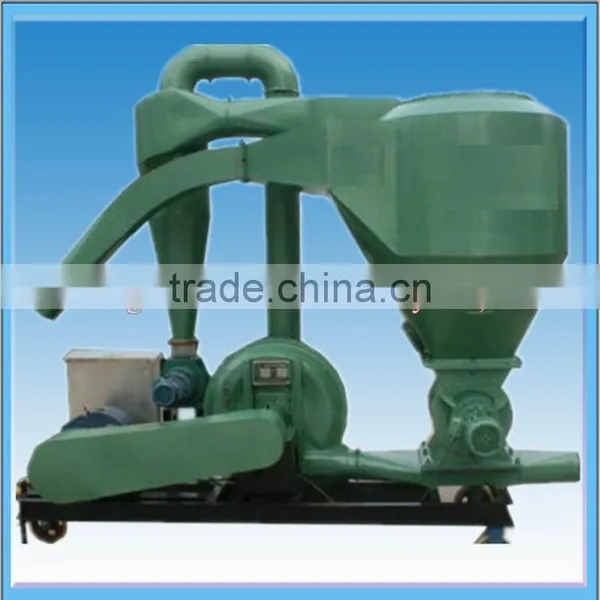

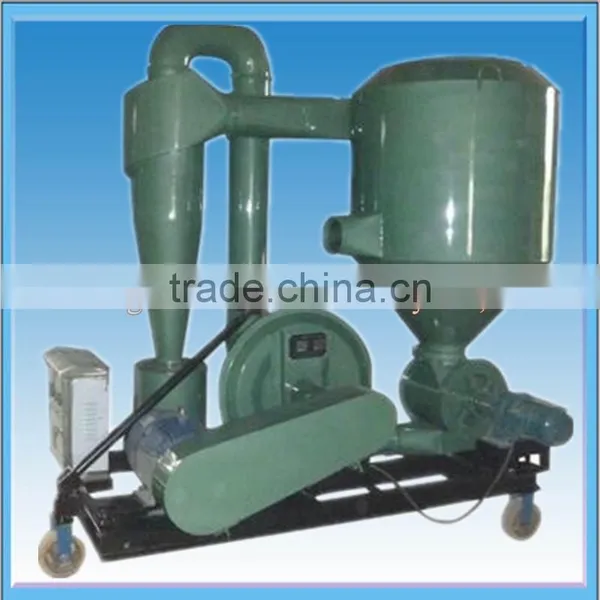

3.Photos of Grain Pneumatic Conveyor: Grain Elevator
4.Contact Information for Grain Elevator :
If you need further information, please contact us freely, we will do our best to cooperate with you.
