High Quality Rope Making Machine China Supplier
1.Machine introduction of High Quality Rope Making Machine China Supplier
1.This machine is suitable for making ropes with Nylon, PE, PP, yarns or strands .
2.It consists of rope making device and strand making device can produce rope with Dia.3-26mm after continuous operation once omit extra working steps from strand making to rope making, thereby the production efficiency is greatly improved.
3.There is no waste yarn or scrap coming out during the production process, so the ropes are more attractive and durable.
4.Raw material requirements: plastic wire, round wire, flat wire, monofilament, cotton and linen isometric fiber
5.Good quality ensure the stability and low cost, 10 years experience in this field could deduce the repairment, high efficiency, low noise
2.Technical parameters of High Quality Rope Making Machine China Supplier
Model |
Speed(r/m) |
Rope diameter |
Motor |
Dimension |
Daily Capacity |
HTO-JX77 |
320 |
20 -26mm |
18KW-4 |
14.8m * 2.5m * 2.1m |
1.5-2T |
HTO-JX66 |
350 |
16 -22mm |
15KW-4 |
13m * 2.3m * 2.1m |
0.9-1.5T |
HTO-JX55 |
420 |
10 -16mm |
7.5KW-4 |
6.86m * 2m * 2.1m |
0.8-1.1T |
HTO-JX44 |
620 |
5 -8mm |
5.5KW-4 |
5m * 1.9m * 1.8m |
0.3-0.6T |
HTO-JX33 |
900 |
3 -6mm |
3KW-4 |
4m * 1.9m * 1.8m |
0.2-0.4T |

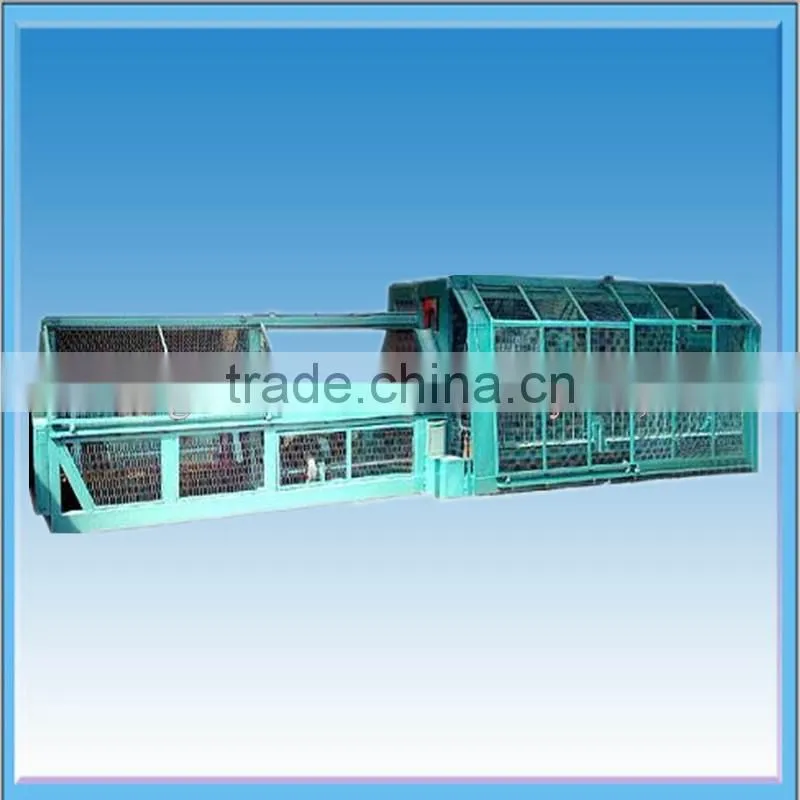

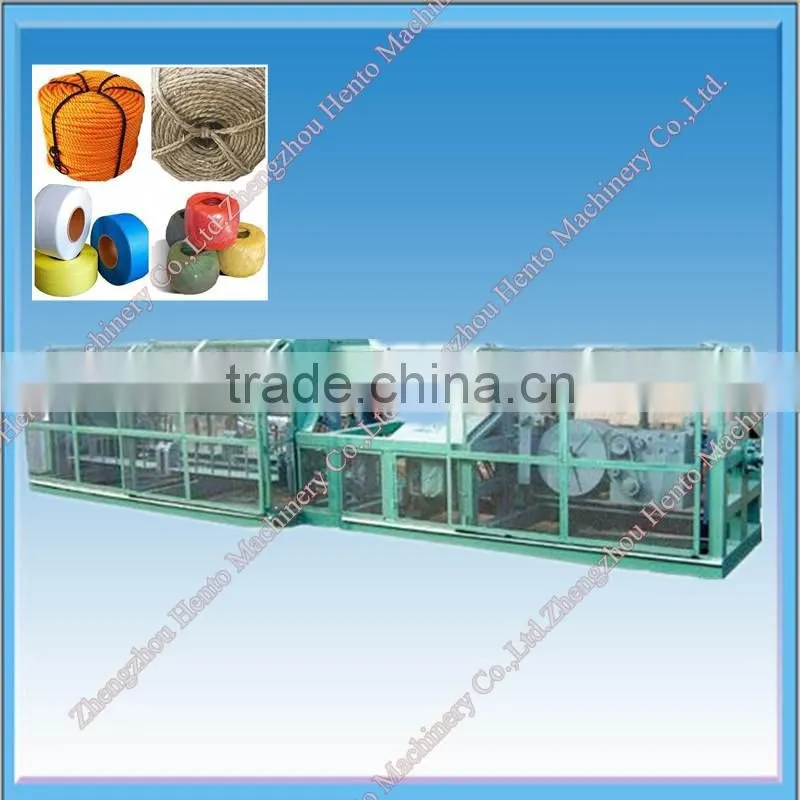

3.Pictures of High Quality Rope Making Machine China Supplier
4.Contact information for High Quality Rope Making Machine China Supplier
If you need further information, please contact us freely, we will do our best to cooperate with you.
