Best price black enameled steel sectional water storage tank for drinking water
Huili offers Enamelled Steel sectional water tanks that are made from hot pressed moulded panels.To ensure usage safety,The assembled steel water tanks material adopts Q235 steel plate,which treated by sintering enamel in high temperature conditions. Threr are 3 sizes for single panels 500 x 500mm,1000 × 500mm and 1000 × 1000mm standard plate. Water quality complies with the State Construction Standard(Design Atlas 02S101).
Enameled steel water tank Description
New type drinking watet enameled steel sectional water storage tank
Enamel water tank, the use of advanced technology, choose high quality materials, through high heat sintering enamel, make water tank panel forming dense glaze layer, and steel interface between iron penetration.
The combined type enameled pressed steel water tank is our new type product. This water tank uses the scope is widespread, not only suitable for the new construction and also provided the convenient condition to the old building water tank renewal. The water tank can store cold water, also the hot water, acid proof, bears the alkali, doesn't infiltrate, leak proof, distort, and corrode.
Combined type enameled pressed steel water tank water storage volume from 0.125~2000 m3.

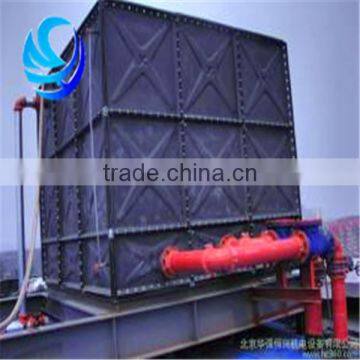

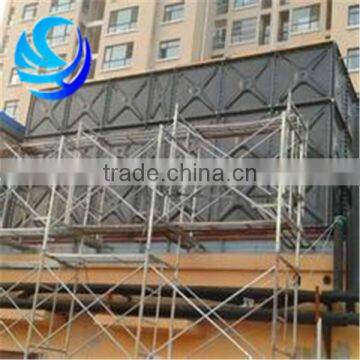

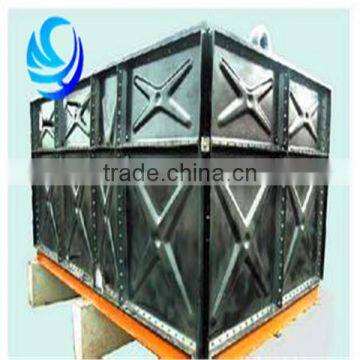

Product Showing:

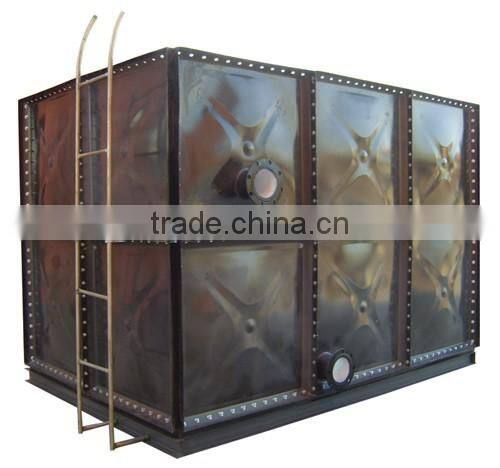

Enameled steel water storage tank for drink water
Application
•Storage and regulation of living water supply & construction water supply.
•Temporary water storage tanks for expansion of the heating system, condensate tank and
construction, geological survey, industry, National defense project etc.
•Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water
treatment, medicine, petroleum, chemical and so on.
•Taking flexible, reasonable plate design, suitable for all sizes combined water tank.
Suitable for living water with PH value:6.5-8.5, using life:≥20 years
Advantages
1. It is not easy to deformation;Strong vibration resistance;Resistance to impact large
4. Enamel water tank is cleaning and hygiene,White and beautiful.Ensure no pollution to water quality
5. Composite plate assembly at the scene.Convenient, quick and flexible and adaptable
6. Acid and alkali resistance, corrosion resistance
7. No leaking , sealed performance is good.
8. Storage of hot water is better than other water tank .
9. Enamel water tank level off is smooth, easy to clean.
Specification Parameter:
High quality enameled steel water tank with acid resistance and alkali resistance
Product Name |
Enamel water tank |
Process technique |
Stamping forming process |
Raw materials |
Enamel steel panel, FRP |
Accessories |
Stainless steel, hot dip galvanizing |
Bottom case |
Channel steel |
Foundation |
Concrete base |
Panel size |
1*1m, 1*0.5m, 0.5*0.5m |
Panel thickness |
2mm to 4mm |
Standard |
National standard or factory standard |
Color |
Black |
Grade |
Food grade(drinking water grade) |
Volume |
0.125~2000CBM |

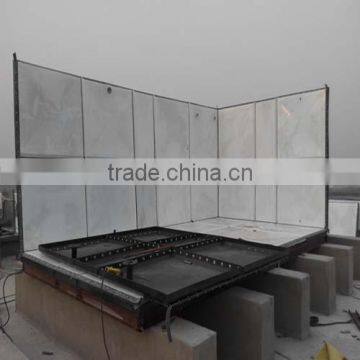

Concrete Base (Standard)
* Width: 300mm
* Height:600mm(Include Steel Skid)
* Space: Max 1m
* Outer Dimension: W+400mm
* Horizontal Degree: 1/500

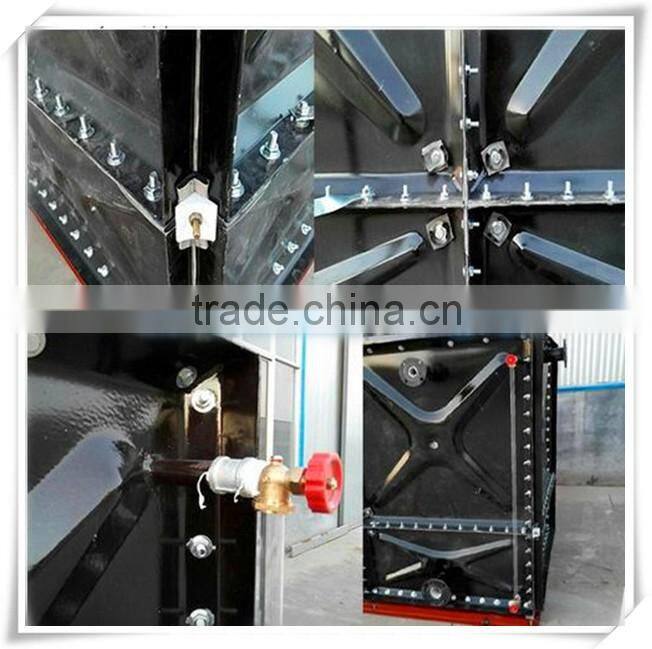

Product Detail:
Panel of the water tank
Enamel sheet steel water tank is made of high quality, made into different specifications of thesingle panel. Including: 1m × lm,lm×0.5m,0.5m× 0.5m
Accessories
1 Bolt. nut & washers: hot-dipped galvanized material.
2 Sealing material: Non-toxic P.V.C foam tape shall be used in between the joints.
3 Covers: The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator: Internal & external ladder shall be made of hot-dipped galvanized material.
Selection and using
1.Supply your water tank sizes ,the position of connective pipes and pipe diameter.
2.The water tank can be supplied with the whole sets.
3.Use water storage temperature for 4-65°c.
4.Without other weldments inside and outside the tank,avoiding destroying the enamel surface
5. The tank should be cleaned regularly ,When testing the water to prevent debris into the box
6.Users with the tank to take over the position of the seams on the board, the company
shall be adjusted, pipe diameter is constant.

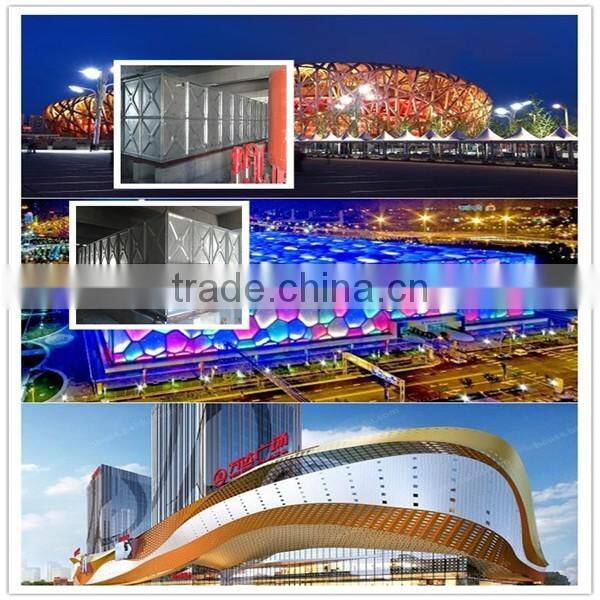

Success Case:
Our water tanks including SMC water tank Stainless steel water tank and Enameled steel water tank are used for Bird's Nest, The Water Cube, Wanda Plaza etc.
Our certification:

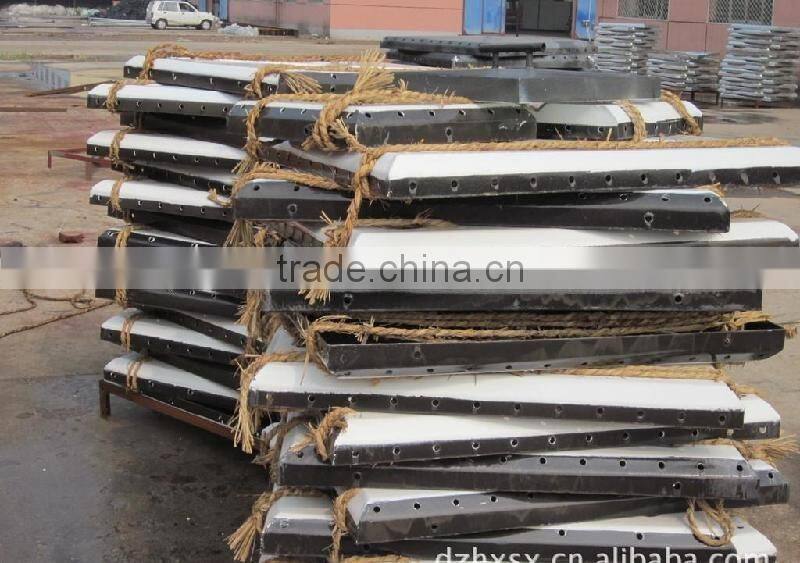

Packaging and Shipping
Our company:
Dezhou Huili tank Co. Ltd., is a professional production enterprise specializing in the production and design of the water tank.
Company tenets: quality first, customer first and best credibility! The same price with best quality, the same quality with highest reputation!The company has a professional after-sale service institution, each service branch are
provided with a fixed installation and after sale service personnel to ensure the user to get a response from us in the first time.
Our customer:
Our certification:
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it
would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
