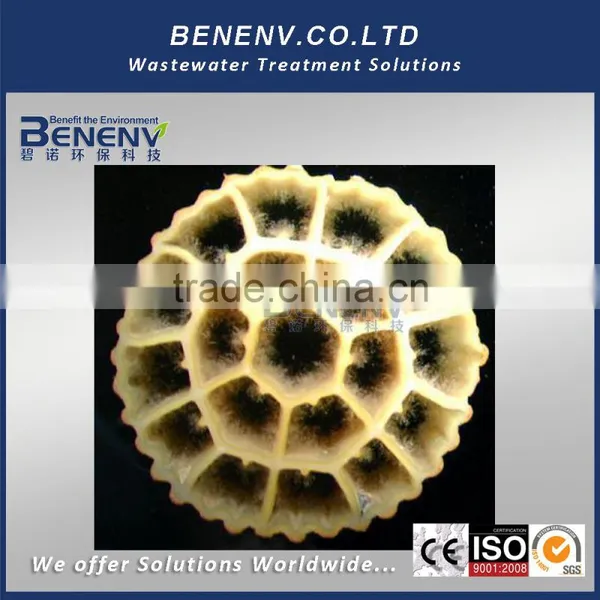

Biofilm Reactor MBBR Tannery Wastewater Treatment
MBBR is a moving media system, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.
The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR biofilm carrier can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move. Our MBBR biofilm carrier is new-developed media, has better treatment effect compared with traditional media.
Technical specification of MBBR biofilm carrier:
| BENENV MBBR | |
|
|
| Model Specification | B1-10-7.5 | B3-25-10 | B5-25-8 |
| Diameter×Height (mm) | Φ10×7.5 | Φ25×10 | Φ25×8 |
| Density (g/cm3) | 0.96-0.99 | 0.96-0.99 | 0.96-0.99 |
| Mean thickness (mm) | 0.40 | 0.35-0.40 | 0.30-0.35 |
| Weight (kg/m3) | 150-160 | 100-110 | 110-120 |
| Surface area (m2/m3) | ≥750 | ≥600 | ≥750 |
| Dosing ratio (%) | 10-50 | 15-65 | 10-60 |
| Material | HDPE | HDPE | HDPE |
| Service life (year) | ≥20 | ≥20 | ≥20 |
MBBR biofilm carrier can be used in both aerobic process and anaerobic process.
MBBR is a cost-effective solution for existing activated sludge plants that need more advanced treatment. Because little or no additional tankage is required, it is an ideal solution for plants with limited space for expansion. It is also an excellent choice for space efficient, high performance new plant designs.
BENENV has clients in over 37 countries!
