Product Details
Place of Origin | Jiangsu, China | Brand Name | BENENV | |
Model Number | Dissolved Air Flotation |
Product Description
DAF with Effective Air Compressor for Electric Water Treatment Dissolved Air Flotation Systems DAF
Dissolved air flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid ,oil and grease etc. Benenv Wastewater dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
Product name | Dissolved air flotation |
Model | BNDAF-020 |
Application | Wastewater treatment |
Maximum capacity | 20m3/h |
Net weight | 4t |
Running weight | 27t |
Power | 6.69Kw |
Motor | Bauer, Nissei, Sew |
Material | Stainless steel or carbon steel |
Service life | > 10 Years |
Warranty | 2 Years |
Operation | 24 hours automatic running |
After-sales service provided | Engineers availble to service machinery overseas |
Payment | Paypal, T/T, Western Union, Escrow, MoneyGram |
Brief Introduction of Dissolved Air Flotation
A large numbers of fine and uniform bubble (5 ~ 80μm), bubbles, water, floc (oil) three-phase mixture, as a carrier, bubbles mixed with floc particles suspended in the water. Connect, adhesion, form floc with bubbles and float to the liquid surface, scraping scum to achieve separation of impurities, water purification.
Parameter
The dimensions and other information of Benenv dissolved air flotation are as follows:
DAF System Model | Capacity | Power(kw) | Dimension(m) | Pipe connection(DN) | ||||||
(m3/h) | Recycle pump | Air compressor | Skimming system | L/L1 | W/W1 | H/H1 | (a) Water inlet | (b) water outlet | (c) sludge outlet | |
BNDAF-002 | ~2 | 0.75 | 0.55 | 0.2 | 3.2/2.5 | 2.4/1.16 | 2.2/1.7 | 40 | 40 | 80 |
BNDAF-003 | ~3 | 0.75 | 0.55 | 0.2 | 3.5/2.8 | 2.4/1.16 | 2.2/1.7 | 80 | 80 | 100 |
BNDAF-005 | ~5 | 1.1 | 0.55 | 0.2 | 3.8/3.0 | 2.4/1.16 | 2.2/1.7 | 80 | 80 | 100 |
BNDAF-010 | ~10 | 1.5 | 0.55 | 0.2 | 4.5/3.8 | 2.7/1.36 | 2.4/1.9 | 100 | 100 | 100 |
BNDAF-015 | ~15 | 2.2 | 0.75 | 0.2 | 5.5/4.5 | 2.9/1.6 | 2.4/1.9 | 100 | 100 | 100 |
BNDAF-020 | ~20 | 3 | 0.75 | 0.2 | 5.7/4.8 | 3.2/2.2 | 2.4/1.9 | 150 | 150 | 150 |
BNDAF-030 | ~30 | 3 | 0.75 | 0.2 | 6.5/5.5 | 3.2/2.2 | 2.5/2.0 | 150 | 150 | 150 |
BNDAF-040 | ~40 | 5.5 | 0.75 | 0.2 | 7.7/6.7 | 3.6/2.6 | 2.5/2.1 | 200 | 200 | 150 |
BNDAF-050 | ~50 | 5.5 | 0.75 | 0.2 | 8.1/7.1 | 3.6/2.6 | 2.5/2.1 | 200 | 200 | 150 |
BNDAF-060 | ~60 | 7.5 | 1.5 | 0.2 | 9.5/8.4 | 3.8/2.8 | 2.5/2.1 | 250 | 250 | 150 |
BNDAF-070 | ~70 | 7.5 | 1.5 | 0.2 | 10.0/9.0 | 3.8/2.8 | 2.5/2.1 | 250 | 250 | 150 |
BNDAF-080 | ~80 | 11 | 1.5 | 0.2 | 10.5/9.5 | 4.0/3.0 | 2.5/2.1 | 250 | 250 | 150 |
BNDAF-100 | ~100 | 15 | 2.2 | 0.2 | 11.7/10.6 | 4.2/3.2 | 2.5/2.1 | 300 | 300 | 150 |
BNDAF-120 | ~120 | 15 | 2.2 | 0.2 | 12.5/11.4 | 4.4/3.4 | 2.5/2.1 | 300 | 300 | 150 |
Application Industry
The aim of dissolved air flotation is to separate the fine suspended solids in water, algae and micro-floc. And dissolved air flotation can be used in the following industries:
l Separate or recycle waste oil or grease in : oil exploration and refining, biodiesel, machining , food production and catering and so on. |
l High concentration organic wastewater treatment: paper, printing and dyeing, textile, leather, pharmaceutical, fermentation wastewater and so on. |
l Biochemical effluent liquid separation: the anaerobic effluent solid-liquid separation, aerobic (activated sludge process, contact oxidation, filter) biochemical water solid-liquid separation, the secondary settling tank Effluent treatment and so on. |
l Farm and slaughter house wastewater treatment: cattle, pigs, chickens farm, slaughter house wastewater. |
l Manufacturing waste: electroplating, painting, etc. |
l Purification: river, landscape, recycle water and so on. |
Characteristics Advantages
Core Technology of Dissolved Air Flotation
l Micro-bubble generation technology |
l Forth circulation and flocculation technology |
Characteristics and Advantages of Dissolved Air Flotation
l Overall specialized, compact structure, and high performance |
l Huge markets ,high maturity, stable performance and reliable operation |
l Hydraulic load: 3 ~ 5 m3 / (m2.h) |
l Maximum inlet SS concentration is ≤ 1000 mg/L |
l Automatic scum discharge, solid content can be up to 30 ~ 100 mg/L |
l Applied for the wastewater with suspended solids & floc density lighter than water or close to the water and weak precipitation phenomenon |

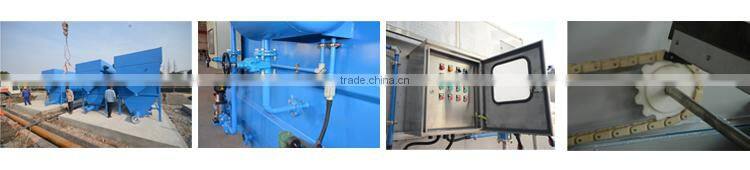

Factory View
Why Choose Us?
1. BENENV has more than 2 decades of experience in wastewater and sludge treatment. |
2. We introduce Japanese technology and hire Japanese experts, thus our product is far more better than other Chinese manufacturers. |
3. We only use the best parts from best supplier. |
4. We have our own R&D center and complete manufacture system. |
