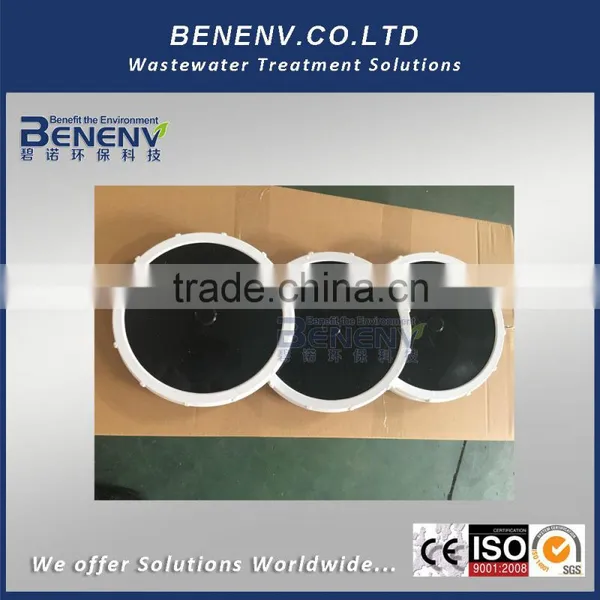

EPDM disc air diffuser
Introduction:
EPDM disc air diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble diffusers produce a plethora of very small air bubbles which rise slowly from the floor of a wastewater treatment plant or sewage treatment plant aeration tank and provide substantial and efficient mass transfer of oxygen to the water. The oxygen, combined with the food source, sewage, allows the bacteria to produce enzymes which help break down the waste so that it can settle in the secondary clarifiers or be filtered by membranes.
Characteristic:
1. Use imported material, good elasticity, long life time
2. Little bubble diameter, high oxygenate efficiency
3. Proof deposit,install convenient
Technical Parameter:
Membrane material: EPDM/silicone/NBR
Plastic Tray material: ABS/UPVC/PP
| EPDM disc air diffuser Model | φ215mm | φ260mm | φ300mm |
| Working air flow (m3/h) | 1.5-3 | 2-5 | 2-8 |
| Designed air flow(m3/h) | 2 | 3 | 4 |
| Service area(m2/piece) | 0.25-0.45 | 0.35-0.65 | 0.45-0.75 |
| Oxygen utilization ratio(%) | >30 | >30 | >30 |
| Oxygenate capability(kgO2/h) | 0.13-0.35 | 0.18-0.45 | 0.25-0.5 |
| Water submerged depth(m) | 4-8 | 4-8 | 4-8 |
| Theoretic dynamic efficeny(kgO2/kw.h) | 6.5 | 6.5 | 6.5 |
| Drag loss(pa) | <3000 | <3000 | <3000 |
Applications:
1. EPDM disc air diffuser is used in wastewater plant, such as city sewage water treatment plant, etc.
2. EPDM disc air diffuser is used for mixing oxygen/ozone into water.

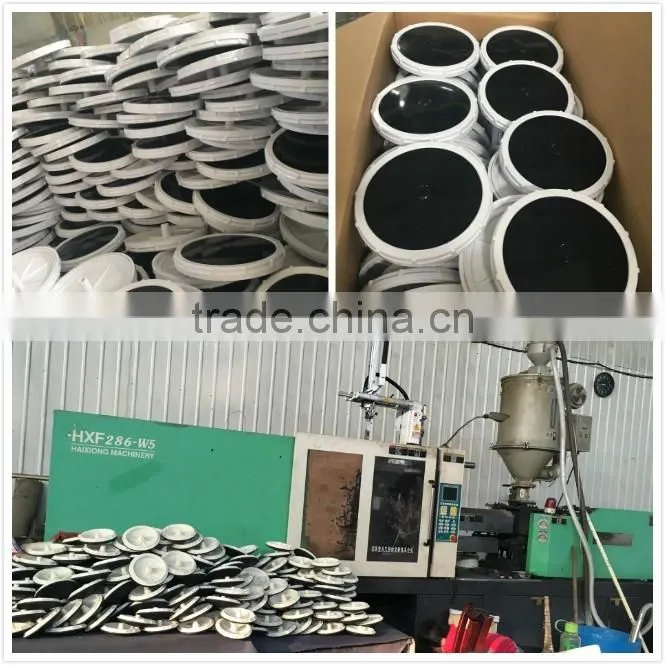

Workshop:
Located in Yixing, Jiangsu Province, near to Shanghai national airport, welcome to visit us.
