Specifications
1. Unique design2. reasonable structure
3. attractive and handsome appearance

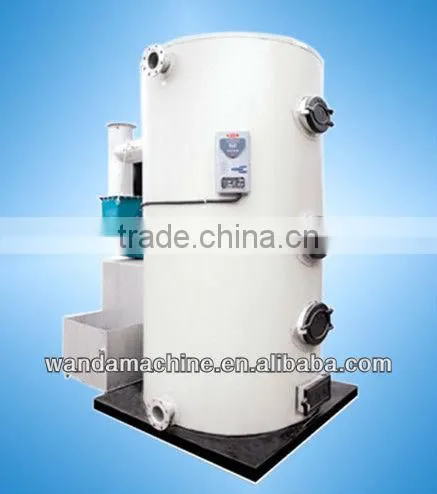

Hot sale gas boiler
Product features and characteristics:
1.Unique design , reasonable structure , attractive and handsome appearance.
2.The furnace heated area is large, thermal efficiency significant, two-way vaporization combustion, fast ignition speed (1-8 min)
3. Equipment with a large capacity coal storage room, feeding can burn for hours at a time.
4. The latest smoke-free, dust removal and coal saving technology, discharge smoke temperature blow 100 . Don’t need to set up high
chimney, environmental friendly, achieve coal emissions standards.
5. The long process of fuel gas, super heat absorption area, coal-saving more.
6. The boiler body by the hot dip galvanized processing, water clean and pure, durable in use.
·Scope of application:
Outdoor bathing place, swimming pool, sauna center, leisure club, factory, school etc large place heat supply.
CLSG series coal gasification boiler technical parameter:
Model |
unit |
CLSG0.2-95/70-WM |
CLSG025-95/70-WM |
CLSG0.35-95/70-WM |
CLSG0.48-95/70-WM |
CLSG0.60-95/70-WM |
Heating power |
MW |
0.2 |
0.25 |
0.35 |
0.48 |
0.60 |
Capacity of hot water |
4.4 |
5.4 |
7.3 |
9.05 |
12.05 |
|
Working pressure |
Mpa |
ordinary pressure
|
||||
Heating efficiency |
≥89 |
≥89 |
≥90 |
≥90 |
≥90 |
|
|
coal consumption
|
Kg/h |
30-36 |
39-45 |
40-56 |
50-60 |
60-80 |
Boiler weight |
496 |
606 |
733 |
802 |
920 |
|
Heating area |
sq.m |
1000-1500 |
1500-2000 |
2000-2500 |
2500-3000 |
3000-4000 |
Fuel |
Two class bituminous coal, three class bituminous coal, smokeless bituminous coal
|
|||||
Dimension |
mm |
1000×1000×2300 |
1150×1150×2400 |
1250×1350×2450 |
1280×1450×2600 |
1350×1550×2600 |
The inlet and outlet of water diameter |
mm |
50 |
65 |
65 |
80 |
80 |
Chimney height |
mm |
12000 |
12000 |
12000 |
16000 |
16000 |
Diameter of chimney |
190 |
219 |
219 |
219 |
219 |
|
