Specifications
1.Heating efficiency:95%2.Environmental friendly
3.Automatic operation
4.Low consumption
5.Quality Gurantee

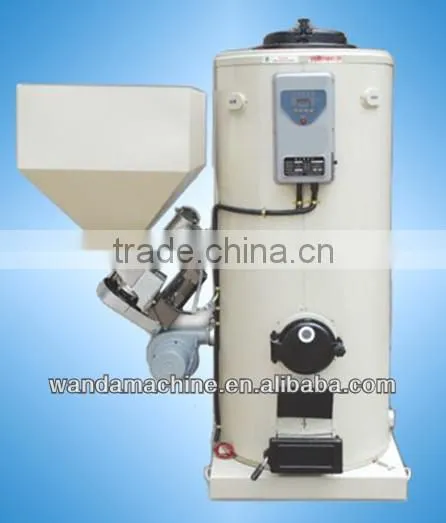

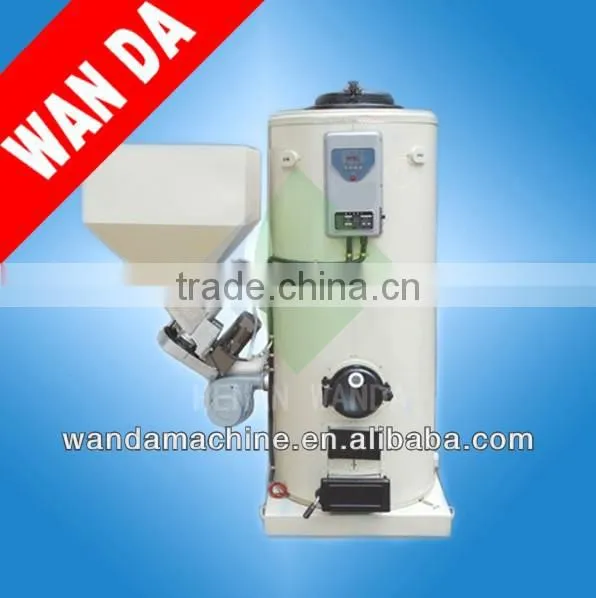

Vertical automatic biomass pellet boiler with low consumption
introductin:
Biomass hot water boiler belong to the Atmospheric pressure hot water boiler, is operating under atmospheric pressure condition, don't need the yearly check, don't need a professional to personnel operation. Boiler overall compact structure, small volume, no need set up tall chimneys, easy installation, the boiler body after heat zinc processing, water quality clean and durable.
Product characteristic
Biomass fuels are pedicled crops or sawdust after processing production of strip environmental protection new energy, it's diameter is 0.8 cm, and length is 4 ~ 5 times it's diameter, broken rate is less than 1.5% ~ 2.0%, dry basis moisture content less than 10% ~ 15%, ash content less than 1.5%, sulfur and chlorine content are less than 0.07%, the nitrogen content is less than 0.5%. The biomass fuel is one of the government key support new rural construction projects, belong to the state support to promote energy conservation, environmental protection biomass fuels, energy conservation, environmental protection and renewable resources, sources extensive.
Range of application:
Widely used in plants greenhouses supply heating; Hotels, guesthouses, sauna bath center, beauty salon, villas, factories, schools and enterprises and institutions,scouring bath,heating and drying with hot water.
Specification:
Model |
CLHSO.058-M |
CLHS0.08-M |
CLHS0.12-M |
Rated Thermal Power(Kcal/H) |
5x104 |
7x104 |
10x104 |
Working Pressure(Mpa) |
Normal pressure |
Normal pressure |
Normal pressure |
Temperature(°C) |
<=85 |
<=85 |
<=85 |
Heating Efficiency(%) |
90 |
90 |
90 |
Heating Area(m2) |
400-500 |
500-700 |
700-1000 |
Voltage(V) |
220 |
220 |
220 |
Water Input(L) |
65 |
108 |
166 |
Weight(kg) |
300 |
360 |
500 |
Diameter of cool water input(mm) |
50 |
50 |
50 |
Diameter of hot water input(mm) |
50 |
50 |
50 |
Diameter of Chimney (mm) |
140 |
140 |
140 |
Dimension(mm) |
1300*1200*1500 |
1300*1200*1650 |
1300*1300*1650 |
Contact person: Martin Wanda
TEL: 86-371-60101636
FAX: 86-371-60101636
Mobile: 86 15890616421
Skype: A-z5628893
Web: http://www. .
Send Inquiry to This Supplier
