Fully Automatic Gold Plated Contact Wire Lug Crimping Machine
Equipped with reliable high-precision technology, CM-D01 uses a compact module design, the highest speed of processing can be up to 5000pcs per hour, a variety of configuration options can be directly processed wire harness from AWG18 to AWG28, use the optimal combination of components to ensure excellent productivity.
Machine Working Video
Feature:
Compact modular design, greatly reducing the machine footprint.
High-end and high-precision components ensure reliable quality.
Easy operation can be realized through touch screen and iconized KINCO software.
Can be a one-time rapid completion of wire cutting, wire stripping, lug crimping, wire twisting.
Speed, high output, a greater limit for the enterprise to save labor.
Description:
Product Type: CM-D01
Name: Gold Plated Contact Wire Lug Crimping Machine

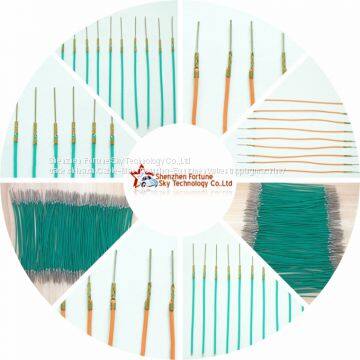

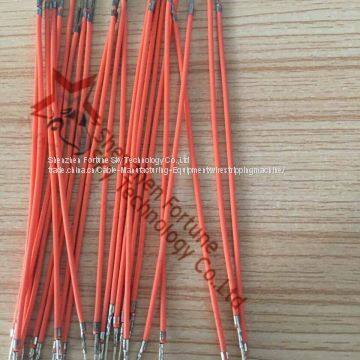

Product Features: Double-ends wire cutting, stripping, one end crimping, the other twisting, can be full stripped and half stripped.
Appearance size: 700 long X600 wide X1500 high (MM)
Machine weight: 213KG (including wooden box package)
Display: digital LCD touch screen
Run mode: automatic operation + manual operation
Adjust the knife way: electric knife
Tool material: Sweden ASP60 powder high speed steel
Pneumatic accessories: Original Asia off
Screw Guide: Taiwan's original silver
Cutting line length: 20mm-999999mm
Cutting line tolerance: change range 0.01mm + cut length x0.2% or less
Stripping length: 0.00MM-12.00MM
Suitable wire: AWG18-AWG28
Cutting line speed: about 7600 / hour
Processing capacity: about 4200 / hour
Terminal pressure: Standard 2.0T, other crimp force need to order
Air pressure: 5KG (requires stable and dry air)
Configuration Power: AC220V
Rated power: 0.75KW
Detection device: 1. Lug detection; 2. Wire detection; 3. Crimp detection; 4. Air pressure detection
