Specifications
High quality ceramic fiber boardLow thermal conductivity and shrinkage
High working tmperature
very competitive prices
fire resistant board high quality ceramic fiber board

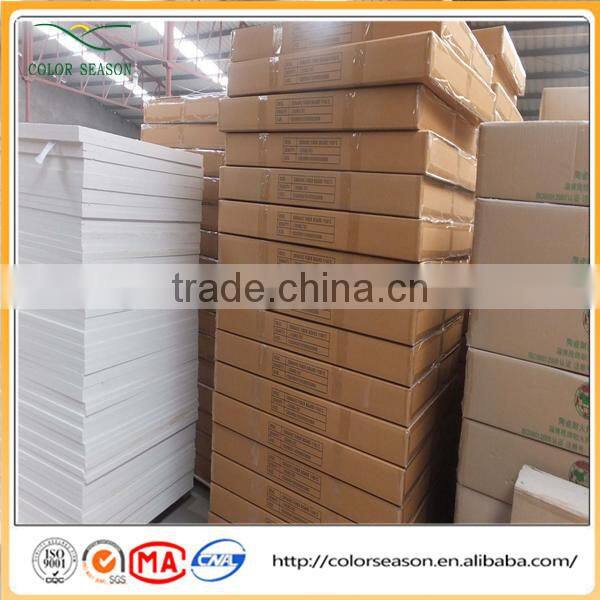

Ceramic Fiber Board Packing

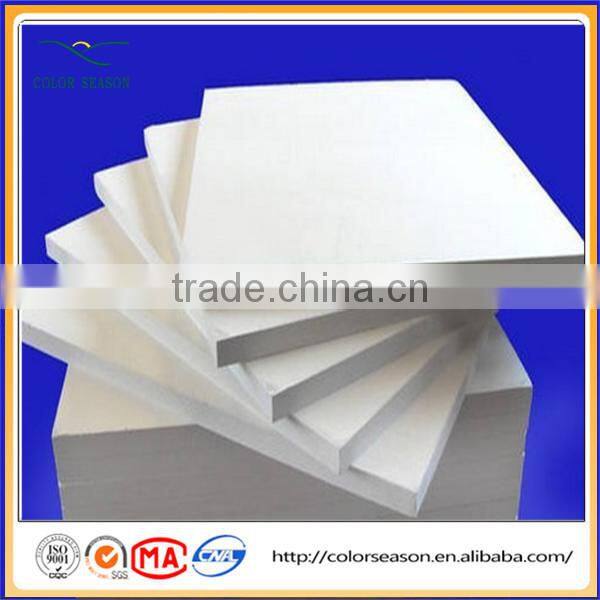

Ceramic Fiber Board Introduction
The ceramic fiber board are made of different refractory fiber bulks with excellent chemical
stability,organic and inorganic bond bywet method and vacuum forming processing which is
applitical to many kinds of industries .The fiber board with a characteristics of hard, flexible,
excellent strength and resistance against corrosion.
Ceramic fiber board | |
Dimension(mm) |
2400/1200x1200/600x(3-100) |
BulkDensity(kg/m3) |
280-600 |
Packaging Details |
Carton box, woven bag outside with plastic bag inside |
Applications |
Furnace, Kiln liner, Astronavigation, Shipbuilding |
Ceramic Fiber Board Application
1.All kinds of industrial furnace hot face and back face insulation
2.Kiln liner of the high-temperature furnace, kiln cars, door damper, furnace temperature
to separate plate
3.Deep processing products molding mould, like Craft glass etc
4.Astronavigation,Shipbuilding heat insulation,fireproofing, sound proofing, insulation.
Ceramic Fiber Board Technical Data
ITEM |
Standard |
Prue |
High Aluminum |
Zirconium |
|
Classification temperature(℃) |
1260 |
1260 |
1360 |
1430 |
|
Work temperature(℃) |
1050 |
1100 |
1200 |
1350 |
|
Color |
white |
white |
white |
white |
|
Density(kg/m3) |
280-600 |
280-600 |
280-600 |
280-600 |
|
Permanent.linear shrinkage(%) |
-3 (1000℃) |
-3 (1100℃) |
-3 (1250℃) |
-3 (1350℃) |
|
|
Thermal conductivity (w/m.k) |
0.09(400℃) 0.176(800℃) |
0.09(400℃) 0.176(800℃) 0.22(1000℃) |
0.132(600℃) 0.22(1000℃) |
0.76(600℃) 0.22(1000℃) |
|
Tensile.strength(Mpa) |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
|
|
Chemical Composition(%) |
AL2O3 |
46 |
47-49 |
52-55 |
39-40 |
|
AL2O3+SIO3 |
97 |
99 |
99 |
- |
|
AL2O3+ SIO3+ ZrO2 |
- |
- |
- |
99 |
|
ZrO2 |
- |
- |
- |
15-17 |
|
Fe2O3 |
<1.0 |
0.2 |
0.2 |
0.2 |
|
Na2O + K2O |
≤0.5 |
0.2 |
0.2 |
0.2 |
Size(mm) |
2400/1200x1200/600x(3-100), other size due to your demand. |
||||
Package |
Cartons |
||||
Ceramic Fiber Board Features
Low thermal conductivity and shrinkage
Low heat storage
Excellent resistance against chemical attack
Easy to machine ,cut and install
Good thermal stability, high temperature not pulverization
Without binders and corrosive substances
Good sound-absorbing performance
Insulation stuffing in the corner and complex space
