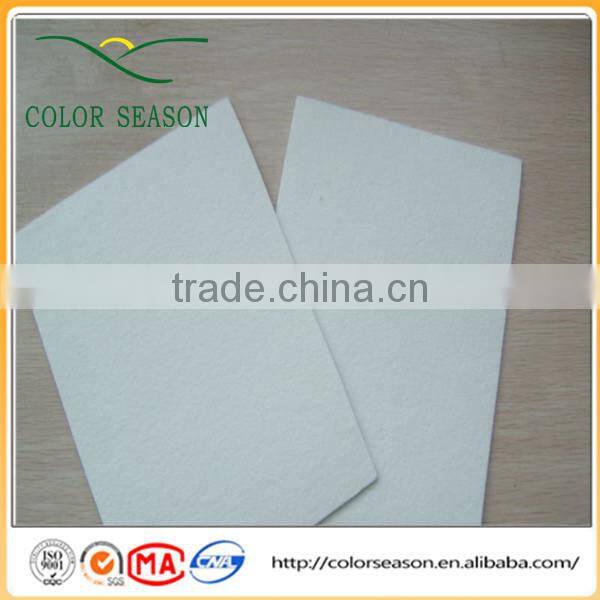

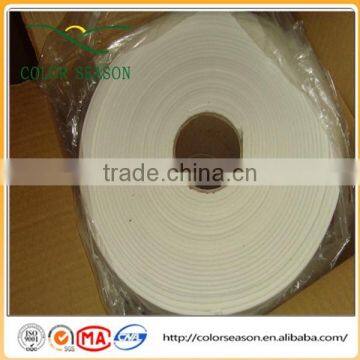

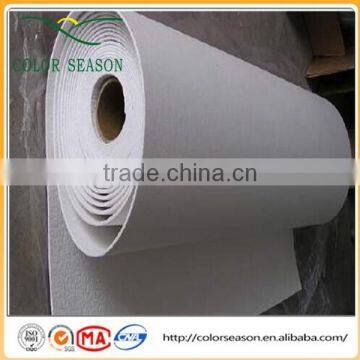

Color Season Ceramic Fiber Paper for Thermal Insulation

Specifications

easy to install
Low thermal conductivity
good electric insulation
excellent corrosion resistant

Colorseason Ceramic Fiber Paper For Insulation



1)Ceramic fiber Paper is made from high-purity ceramic fiber by adding a small amount of binder which will completed burnt out during using process, through production technology with scientific selection and strict control binding.

2)it product shows excellent thermal insulation properties and construction performance, suitable for use in deep processing (multi-layer composite, punching, etc.); and excellent resistance to molten infiltration, allowing itself to be used for casting washer separation in the construction and glass industries.

3) Application

*Industrial insulating ,sealing and protecting materials

*Electric and thermal insulation materials for electric industry

*Insulation materials for instrument-equipment

*Insulating materials for motor industry

*Filling materials for expansion slot

*Insulating materials as the sinter resistance

*Sealing gasket for molten metal

*Fireproof materials

Tech data:

Type		Standard ceramic fiber paper	High pure ceramic fiber paper	High Aluminium ceramic fiber paper	Zirconium ceramic fiber paper
Chemical analysis (%)	AL2O3	43	47	55	38
	SiO2	53	51	44	44
	Fe2O3+Ti2O3	≤1.2	≤0.3	≤0.3	≤0.2
	CaO+MgO	≤0.3	≤0.3	≤0.3	≤0.2
	NaO+K2O	≤0.5	≤0.3	≤0.3	≤0.2
Crganic Content (%)		5%	5%	≤5%	≤5%
Density(kg/m3)		180-220	180-220	180-220	180-220
Work Temperature		1050	1150	1250	1350
Thickness		1.0mm-10mm
size (mm)		40000x1220x1;40000x610x1; 30000x1220x2;30000x610x2;20000x1220x3;20000x610x3;15000x610x4; 10000x610x5



* Asbestos paper replacement
* Investment cast mold wrap insulation
* One-time consumable insulating applications
* Back-up lining for metal thoughs
* Hot top lining
* Applications where low binder content is required
* Thermal and electrical insulation
* Upgrade for fibreglass paper and blanket products
