Specifications
Detailed Product DescriptionPlastic Rosette Ring
Material: PP, PE, PVC, PVDF, PPR etc
Plastic Rosette Ring
Introduction
Plastic Rosette Ring Plastic is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics
Introduction
Plastic Rosette Ring Plastic is made up of twelve radial arranged small rings. It is also an economical and versatile industry standard with well known performance characteristics
Features
1. Big void ratio, hard to block, huge flux and litte resistance.
2.The liquid detents in the gap with the result that the liquid in the tower holds back longer.
3.It prolongs the contacting period of gas and liquid and improves efficiency.
Application:
It has been used as packing of high corrosion resistance and low pressure drop with extensive application for Gas Absorber, Cooling Tower ,Deaerator , Reactor and other gas-liquid contact systems. Various data on equilibrium, design and materials based on a long experience in using the packing are available on request
Technical data
Spec. |
D*H*T(mm) |
Number per m³ |
Bulk density (Kg/m³) |
Surface area (m²/m³) |
Free volume (%) |
Dg25(5-ring) |
25*9*(1.5*2) |
170000 |
90 |
195 |
82 |
Dg47(9-ring) |
47*19*(3*3) |
32500 |
111 |
185 |
88 |
Dg51(9-ring) |
51*19*(3*3) |
23500 |
103 |
180 |
98 |
Dg59(12-ring) |
59*19*(3*3) |
17500 |
72 |
150 |
92 |
Dg73(12-ring) |
73*28*(3*4) |
8000 |
80 |
127 |
89 |
Dg95(18-ring) |
95*37*(3*6) |
3900 |
78 |
94 |
90 |
Dg145(20-ring) |
145*48*(3*6) |
1100 |
48 |
65 |
95 |
Note: The above data are reference to material PP.

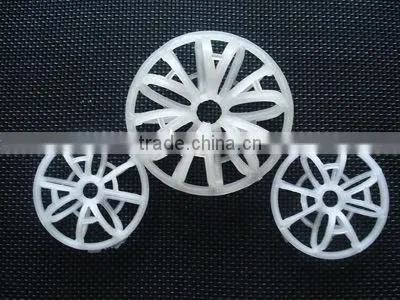

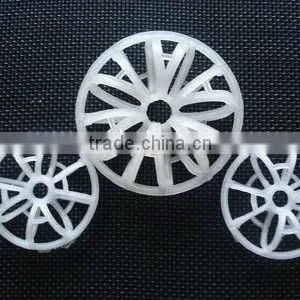

Product photo:
Chemical Packing Laboratory:
