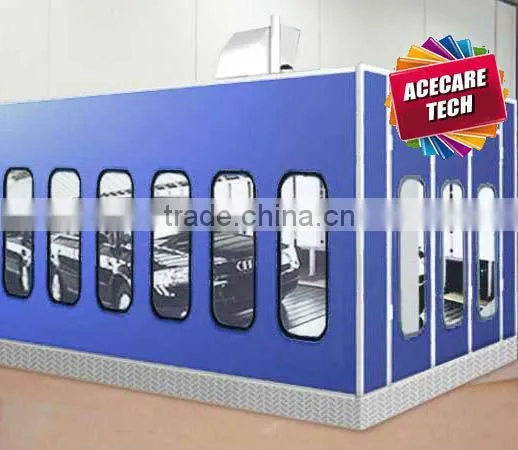

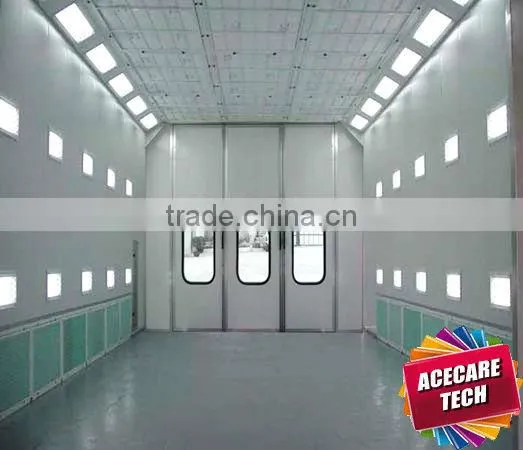

Electric spray painting line, coating production line

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port dalian

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	Acecare Tech
Model Number	ATPL050

Product Description

Specifications

Painting line
1. high quality production line
2. widely used in social factory

Painting Line

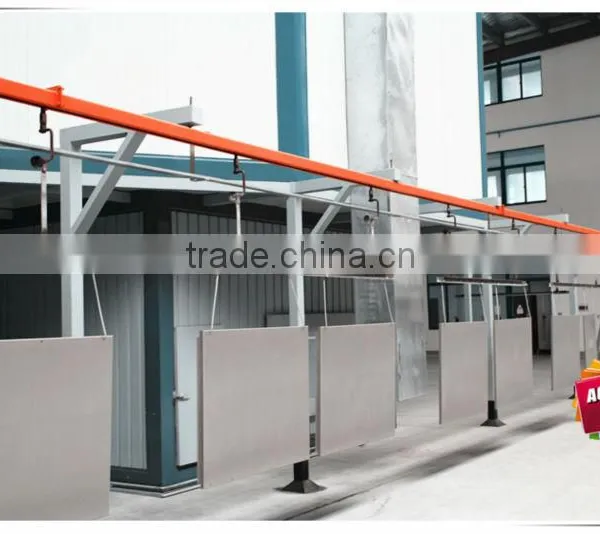

Powder coating line is a continuals working line and use to powder the steel and non-stop baking and coveying.
High efficiency.

Powder curing oven

Equipment structure: chamber, hot air circulation system, temperature control system
Supporting equipment: hot air circulation fan, heating mode, temperature controller .

Electric control device
Component: spray powder control system, curing furnace, control system, hanging chain, conveying control system, the control system consumption

Basic design conditions

Serial number	Name		Parameters
1	Workpiece name		cylinders
2	Material		Steel parts
3	The biggest size through		Φ406*H1500mm(max)
4	(max)Workpiece weigh		170kg(max)
5	Coating way		Automatic spray powder + artificial fill spray
6	Annual production		150000-250000
7	Work system		8 hours/class Single class system
8	Workpiece transportation mode		Suspension conveyor chain
9	Conveying chain model		XT-100 single point hanging heavy: 250 Kg
10	Production line speed		1.2m/min (0.5--5.0m/min adjustable)
11	Equipment comprehensive utilization		90%
12	Energy	Electricity	220VAC; 380VAC;50Hz; Voltage fluctuation range:±10%
		Electrical heating heat source	Drying stove: electric heating
13	Design overview		Includes automatic spray powder room 1, powder curing furnace 1, suspension and conveying equipment, electrical control device 1 set 1 set

More information, please contact us freely
