Industrial Spraying paint line for Aluminum,Motorcycle painting line
- 10 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
You May Like
-
Automatic painting machine, Painting Line for Vehicles
-
Good quality powder coating production line, Painting Line for Vehicles
-
Acecare Painting Line for machinery and tools, Powder coating production line for machinery,Motorcycle painting line
-
Acecare Powder Painting Line, Paint spraying line for steel plate
-
Liquid Painting Line, coating line
-
Painting line for bottle
Product Details
| Type | Coating Production Line | Substrate | Steel | |
| Coating | Painting | Place of Origin | Liaoning, China | |
| Brand Name | ACECARE-TECH | Model Number | TAPL-01 |
Product Description
Specifications
Painting line1. high quality production line
2. widely used in social factory
Painting line
Powder coating line is a continuals working line and use to powder the steel and non-stop baking and coveying.
High efficiency.

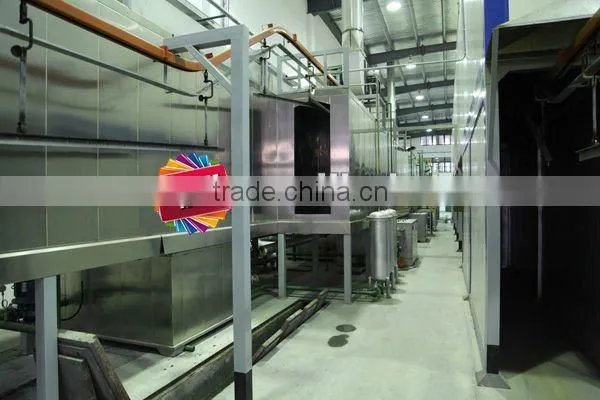

Powder curing oven
Equipment structure: chamber, hot air circulation system, temperature control system
Supporting equipment: hot air circulation fan, heating mode, temperature controller .
Electric control device
Component: spray powder control system, curing furnace, control system, hanging chain, conveying control system, the control system consumption
Basic design conditions
Serial number
| Name | Parameters | Remarks | |
1 | Workpiece name | cylinders |
| |
2 | Material | Steel parts |
| |
3 | The biggest size through | Φ406*H1500mm(max) |
| |
4 | (max)Workpiece weigh | 170kg(max) |
| |
5 | Coating way | Automatic spray powder + artificial fill spray |
| |
6 | Annual production
| 150000-250000 |
| |
7 | Work system
| 8 hours/class Single class system |
| |
8 | Workpiece transportation mode | Suspension conveyor chain |
| |
9 | Conveying chain model | XT-100 single point hanging heavy: 250 Kg |
| |
10 | Production line speed | 1.2m/min (0.5--5.0m/min adjustable) |
| |
11 | Equipment comprehensive utilization | 90% |
| |
12 |
energy | Electricity | 220VAC; 380VAC;50Hz; Voltage fluctuation range:±10% |
|
Electrical heating heat source | Drying stove: electric heating
|
| ||
| 16 | Design overview | Includes automatic spray powder room 1, powder curing furnace 1, suspension and conveying equipment, electrical control device 1 set 1 set |
| |
