Shot blasting machine

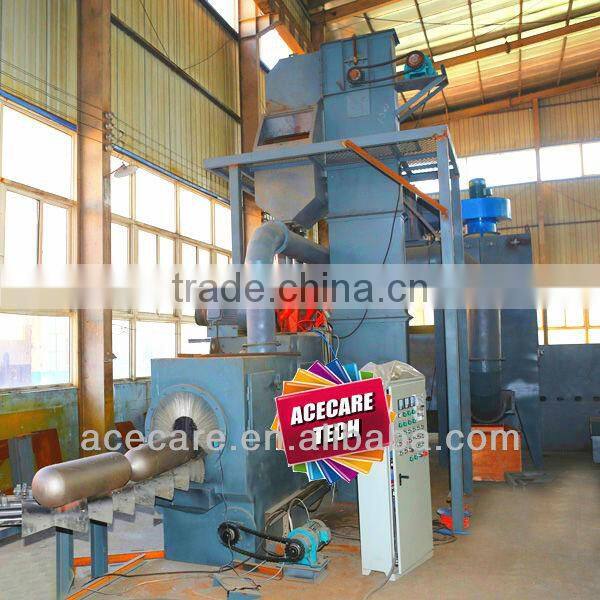

QGW36 roller-type external shot blasting machine for cylinder outside can clean the cylinder and steel structure
With Professional Test Equipments in our company, we can test electric system and parts in various Voltage and Hertz worldwide . The test range is 0 - 600V, 45 - 500HZ. Passed the test, it can ensure our machine working normally under specific power at the User side.
Functional overview
QGW36 roller-type external shot blasting machine is to clean outside surface of the cylinder and steel structure .It not only can remove the work piece surface corrosion weld dregs, but also can eliminate the welding stress of work piece, enhances the anti-fatigue strength of the work piece, increase the film adhesion when painting work piece and enhances superficial and the intrinsic quality finally. The shot blasting machine has the following characteristics:
The layout of shot blasting room and shot blaster are determined after the dynamic three-dimensional computer ejection simulation.
Uses the centrifugal-type shot blaster which has high ejection speed, it can obviously raises the cleaning efficiency, obtain the satisfied cleaning quality.
The non-pit structure can reduce the charges of pit operating.
V roller adopts round incline method to achieve the rotation and running forward of the work piece. Thus it can guarantee the cleaning effects.
The V-wheel in the shot blasting machine is made up of the anti-friction material.
Technical specification
NO. |
Item |
QTY |
Indicators |
1 |
The largest size of the workpiece |
|
Diameter × length: φ185-φ406*2000 ,According to OD232 standard computation |
2 |
Clean-up requirements |
|
With GB8923-88 AB Sa2 1 / 2 standard, the surface roughness Ra12.5 |
3 |
Productivity |
|
2m/min(OD232) |
4 |
Blasting (Switzerland + GF + DISA technology company) |
2 |
Model: HTQ034 |
5 |
The use of shots |
|
Steel shot: OD1-OD1.5 |
6 |
The amount of bullets at first time |
|
2.5t |
7 |
the screw conveyer of the bottom |
1 |
Throughput: 30 t / h Power: 3 KW |
8 |
Bucket Elevator |
1 |
Amount of upgrading: 30 t / h Power: 4 kW |
9 |
Separator |
1 |
Amount of separation : 30 t / h |
10 |
Projectile controller |
2 |
Model: electromagnetic valve pneumatic |
11 |
Precipitator |
1 |
Filter area: 26 m2 Filter drum dust remover or bag collector |
12 |
Roller conveyor system |
1 |
Reducer Model: XWD3-4-1/59 |
13 |
Concentration of dust |
|
≤120mg/m3 |
14 |
Equipment noise |
|
≤92dB |
15 |
Total power |
|
About 45.5 kW |
