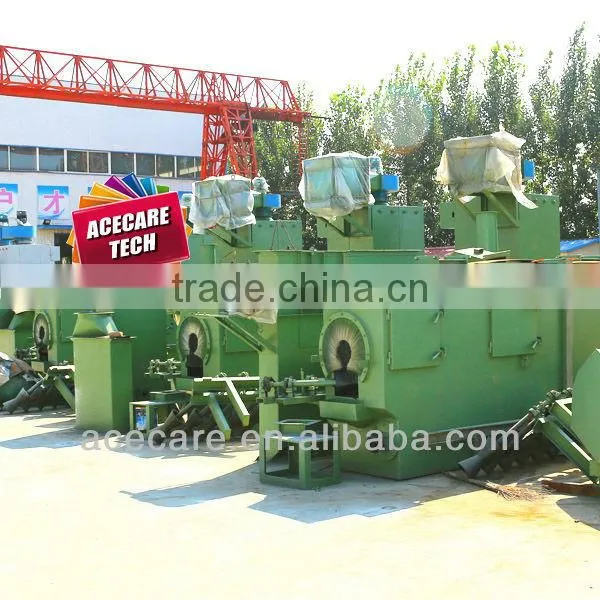

Good Machine of China! Competitive Price~QGW36 External shot blasting machine for cylinders

NO.

Item

QTY

Indicators

1

The largest size of the workpiece

 Diameter × length: φ185-φ406*2000 ,According to OD232 standard computation

2

Clean-up requirements

With GB8923-88 AB Sa2 1 / 2 standard, the surface roughness Ra12.5

3

Productivity

2m/min(OD232)

4

Blasting (Switzerland + GF + DISA technology company)

2

Model: HTQ034
Blasting volume: 250 kg / min
Projectile speed: 70 ~ 78 m / s
Power: 15 kW

5

The use of shots

Steel shot: OD1-OD1.5

6

The amount of bullets at first time

2.5t

7

the screw conveyer of the bottom

1

Throughput: 30 t / h  Power: 3 KW

8

Bucket Elevator

1

Amount of upgrading: 30 t / h  Power: 4 kW

9

Separator

1

Amount of separation : 30 t / h
The wind speed of separation zone: 4 ~ 5 m / s

10

Projectile controller

2

Model: electromagnetic valve pneumatic
The largest flow: 250 kg / min

11

Precipitator

1

Filter area: 26 m2
Fan main air volume: 3500 m3 / h
Power: 5.5 KW

Filter drum dust remover or bag collector

12

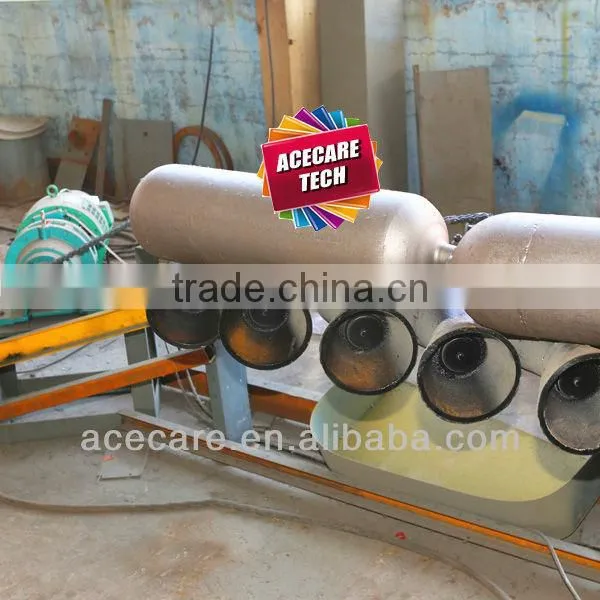

Roller conveyor system

1

Reducer Model: XWD3-4-1/59
Roller distance: 300 mm
Transmission speed: 1 ~ 4 m / min (VVVF)

13

Concentration of dust

≤120mg/m³

14

Equipment noise

≤92dB

15

Total power

About 45.5 kW
