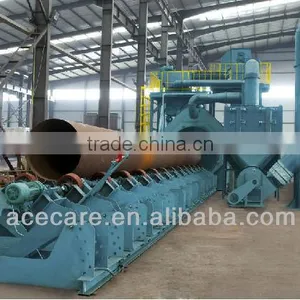

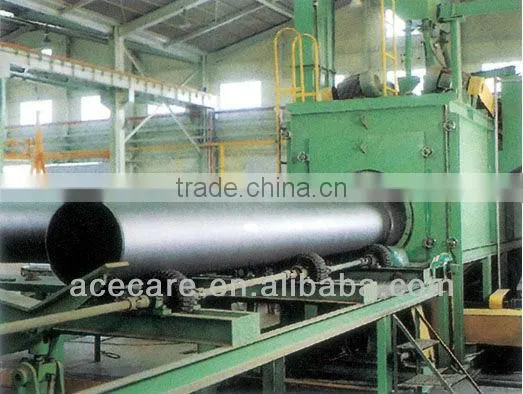

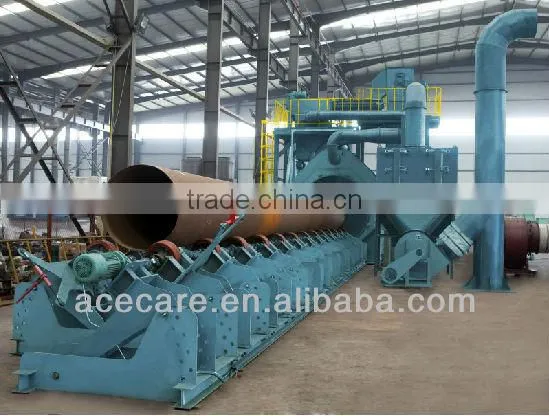

Competitive price~Good quality!QGW Series Pipe/Tube Internal Surface Cleaning Shot Blasting Machine
This machine can effectively remove the oxides, rusts and sundries of the tubes, and recover the metallic luster to be helpful for the antiseptic treatment of the steel.
Order |
Item |
Number |
Indicators
|
|
1 |
The weight of single workpiece |
|
≤220kg |
|
2 |
Cylinder |
4 |
φ219-φ406×650-2000 |
|
3 |
Clean-up results |
|
GB8923-88A-B Sa2.0 |
|
4 |
The shot specifications |
|
φ0.8-1.0mm |
|
4 |
Equipment appearance (excluding Dust remover) |
|
7000×5080×3750mm (L × W × H) |
|
5 |
Rotoblast
|
2 |
Type
|
ST60-DC-2D |
|
Lance number
|
2pieces |
|||
|
Work pressure
|
0.5-0.7MP |
|||
|
Sand storage capacity
|
0.26m3 With sand of 0.5 t
|
|||
|
Compressed air consumption
|
5-6m3/min(Single-shot ) |
|||
The number of injection |
(800-1200)kg/h |
|||
6 |
Cylinder flip agencies |
1 |
Fuel Tanks: 2, visit: 1000 |
|
7 |
Cylinder rotation device |
2 |
Power: 0.55 KW |
|
8 |
The first time the amount of shot |
|
1000kg |
|
9 |
Ventilation |
|
5000m3/h |
|
10 |
Separation device |
2 |
Power:0.37KW |
|
11 |
Dust remover (F355) |
1 |
Bag filter, power: 7.5 KW
|
|
12 |
Noise of machine |
|
≤90dB |
|
13 |
Cylinder loading(unloading) device |
1 |
Hydraulic lifts
|
|
14 |
Spray gun mobile devices |
1 |
Power:1.5 KW |
|
15 |
Traction devices |
1 |
QGBQ80-250MF1-KE2 |
|
16 |
Hydraulic pressure station |
1 |
Power:7.5KW |
|
|
Total power |
|
17.4KW |
|
