Soft Capsule Machine in Capsule Filling Machine
US$ 1 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
15000-20000/h
Control Mode:
Full Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paintball Production Line From Professional SupplierUS$ 1 - 80,000MOQ: 1 Set -
Full Automatic Softgel Encapsulation Machine, Softgel Encapsulation Machine, Full Automatic Softgel Encapsulation MachineNegotiableMOQ: 1 Set
-
Paintball Production Line SupplierUS$ 1 - 80,000MOQ: 1 Set
-
Paintball Automatic Producing MachineUS$ 1 - 80,000MOQ: 1 Set
-
Paintball Automatic Producing EquipmentUS$ 1 - 80,000MOQ: 1 Set
Condition
New
Capacity
15000-20000/h
Control Mode
Full Automatic
Place of Origin
Jiangsu, China
Brand Name
Wenao
Model Number
S403
Dimension(L*W*H)
1050 x 500 x 900
Weight
600kg
Certification
ISO:9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

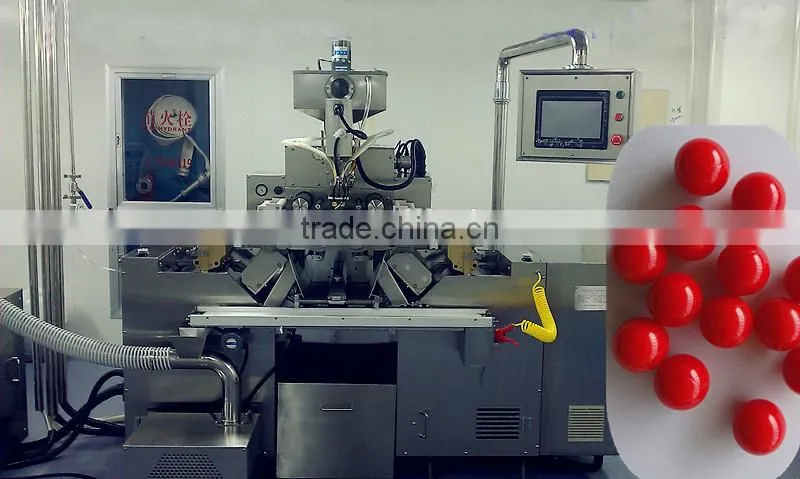

Soft capsule machine in capsule filling machine
Specification of S403 Micro-production Softgel Encapsulation Line:
- Filling tolerance<±1.5%
- Maximum single plunger dosage- 2ml

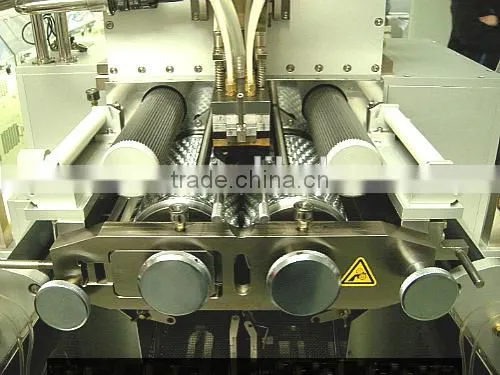

- Die Roller Size— 80x100mm
- Die Roller Speed — 0~5rpm, steplessly adjustable
- Main Motor Power— 0.75 kW
- Main Machine Power — 3kW
- Power — 3 Phase 220V/380V415V,50Hz/60Hz
- Overall Dimensions(L x W x H)— 1050 x 500 x 900)mm
- Weight— 600kg
- The cooling drums are cooled by both water and air.
- Consumption of compressed air— 50NL/h
- Consumption of gelatin— 2.5L/h( at 3 rpm)
- Material consumption — 4.6L/h(at 3 rpm)
- Lubrication oil consumption — 70g/h(Based on 3 rpm)
- The requirement for space — 20m2
Tumble Drier (2 baskets)
To be fit for the main machine
(Basket size)—580 x 900mm
Effective loading storage> 20kg (each basket)
Motor Power —three Phase 380V/415V, 50Hz/60Hz,0.37Kw
Fan Motor Power —3 Phase 380V/415V, 50Hz/60Hz,0.32Kw
Running speed —0-20rpm (The speed is variable steplessly)
Weight—310Kg
Gelatin Melting and Service Tank (Model: GST—105)
- Electrical heating
- Three layers ( Thermal insulation and heating)
- Top compressed air supply
- Stirring speed—51rpm
- Motor power—single Phase 220V/240V,50Hz,0.55kw
- Heating power—220V/240V,50Hz 4kw
- Temperature adjusting scope—20~100ºc
- Weight —160kg

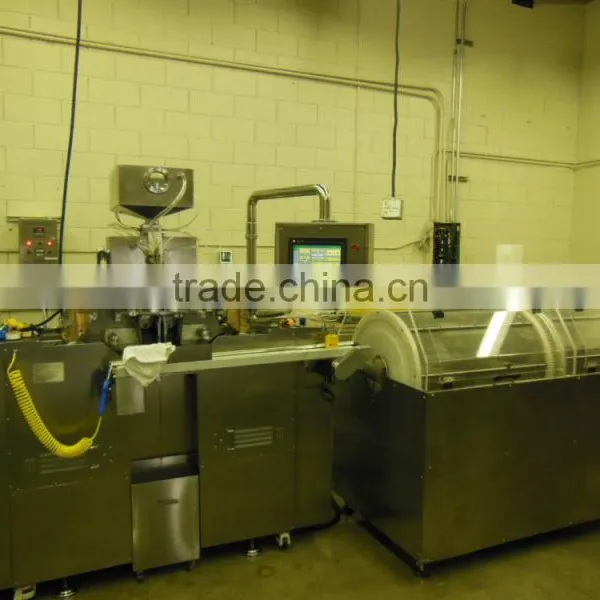

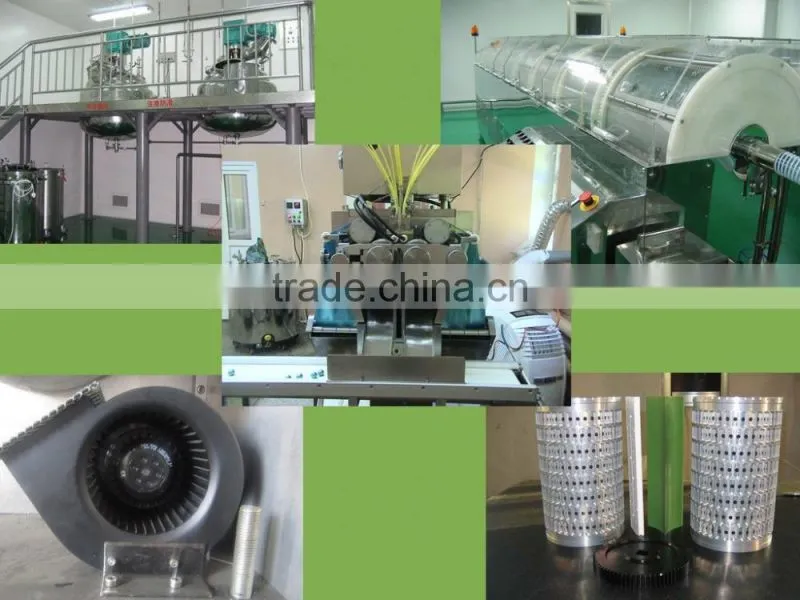

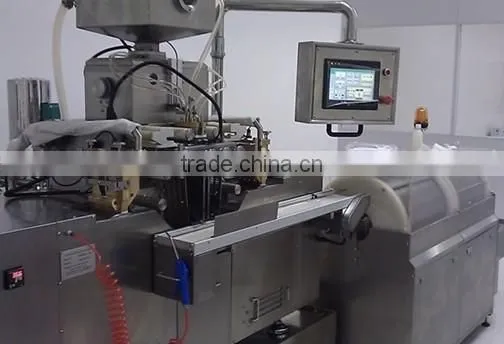

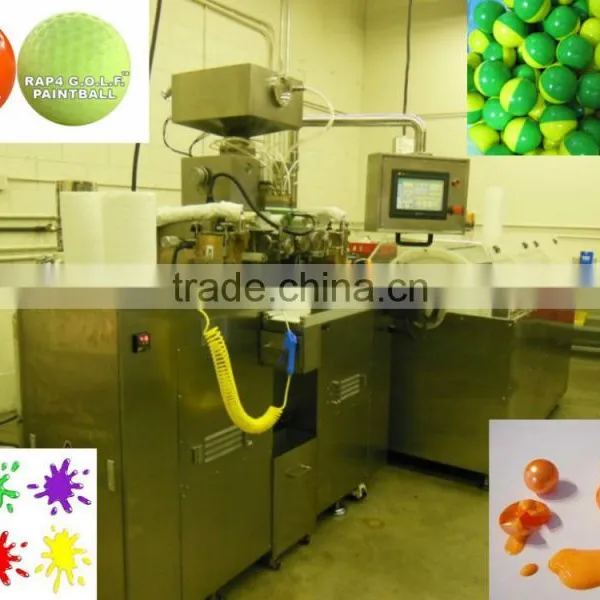

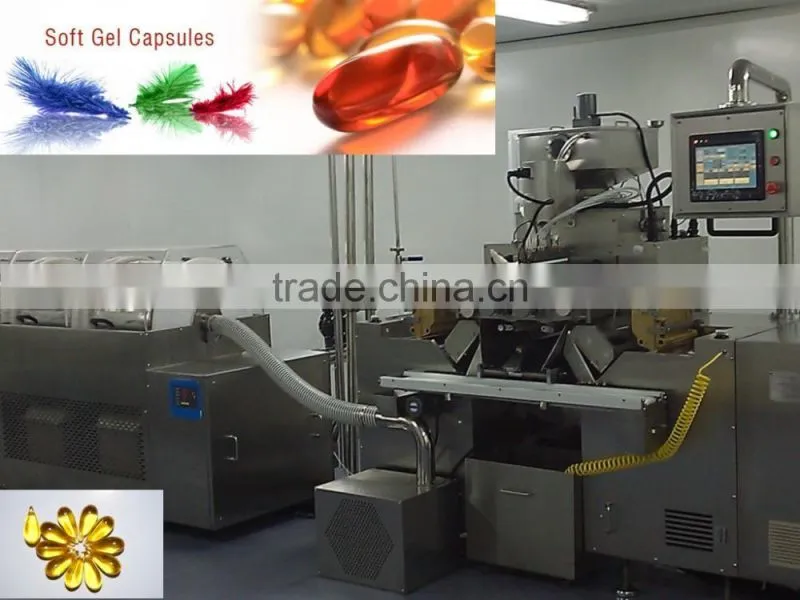

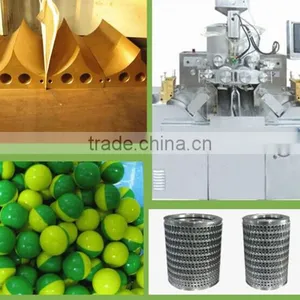

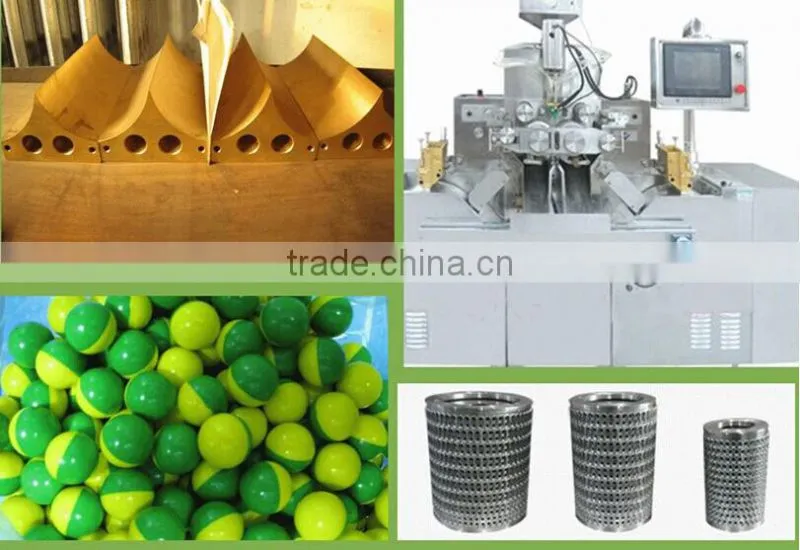

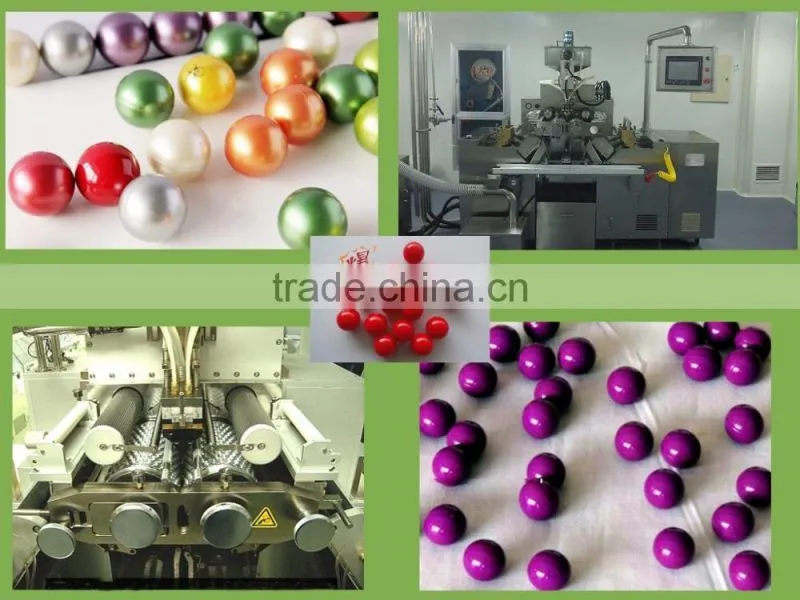

Main machine and drying machine:

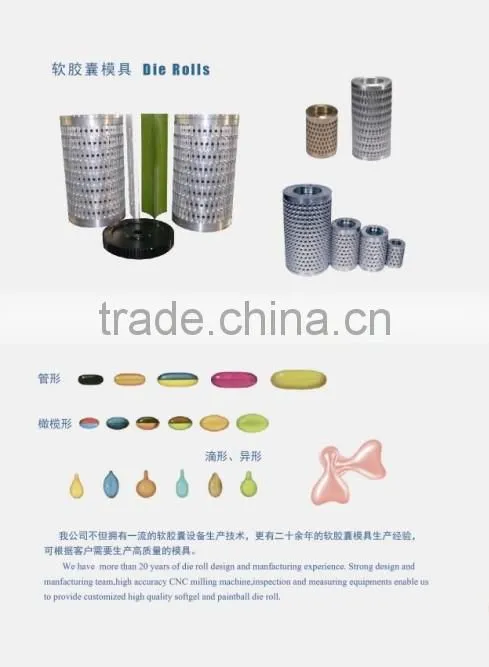

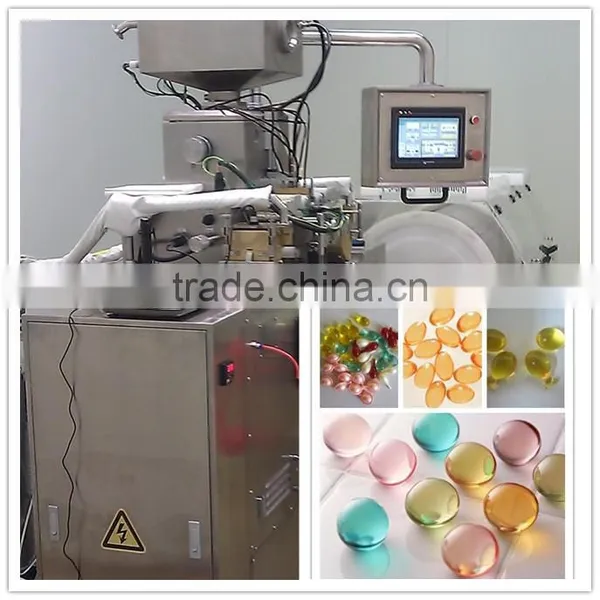

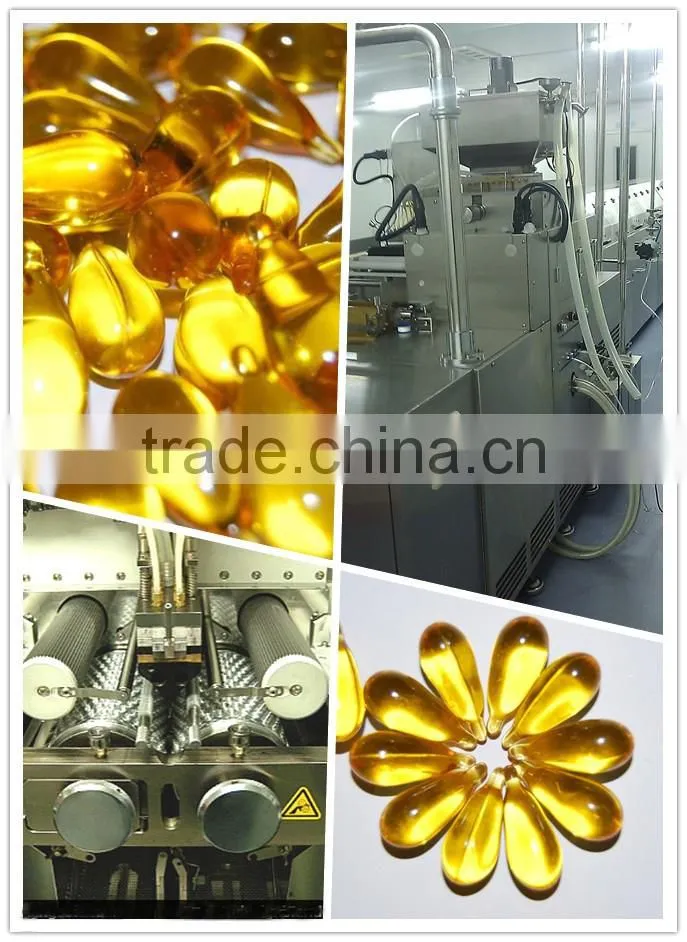

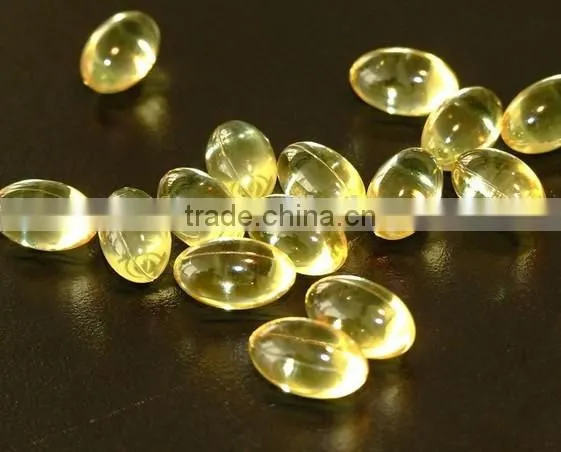

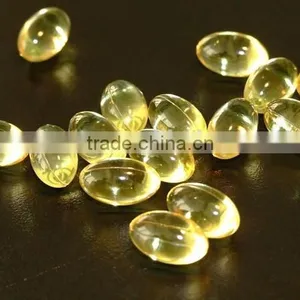

Capsules shapes:

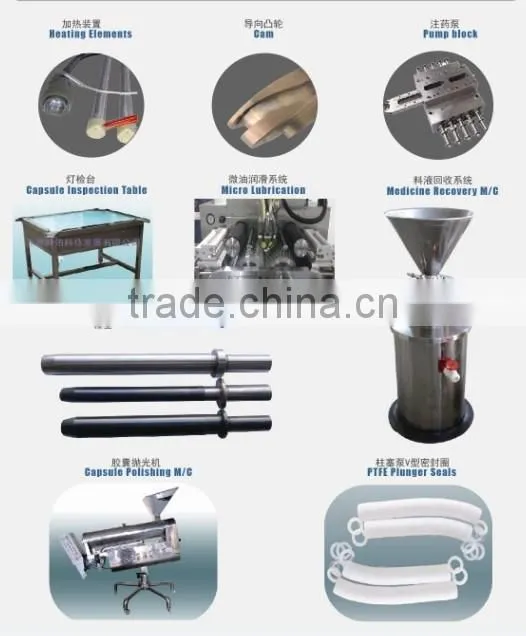

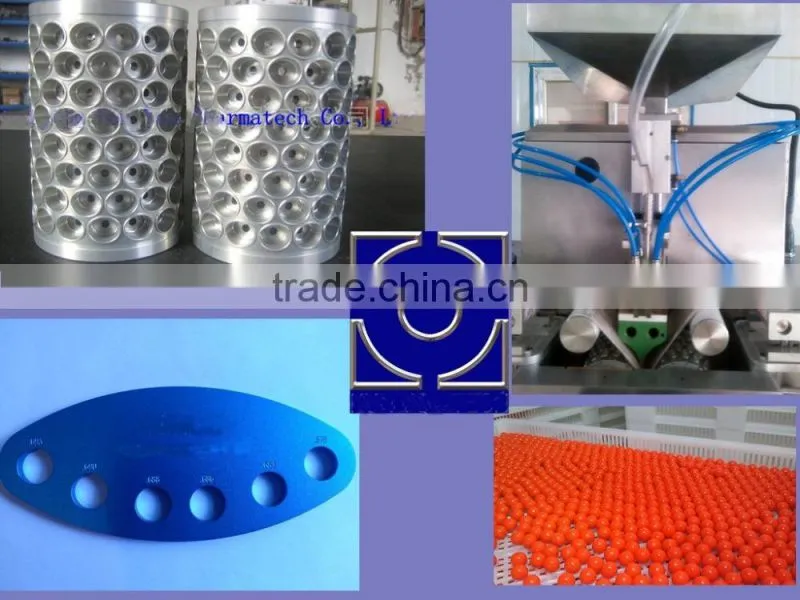

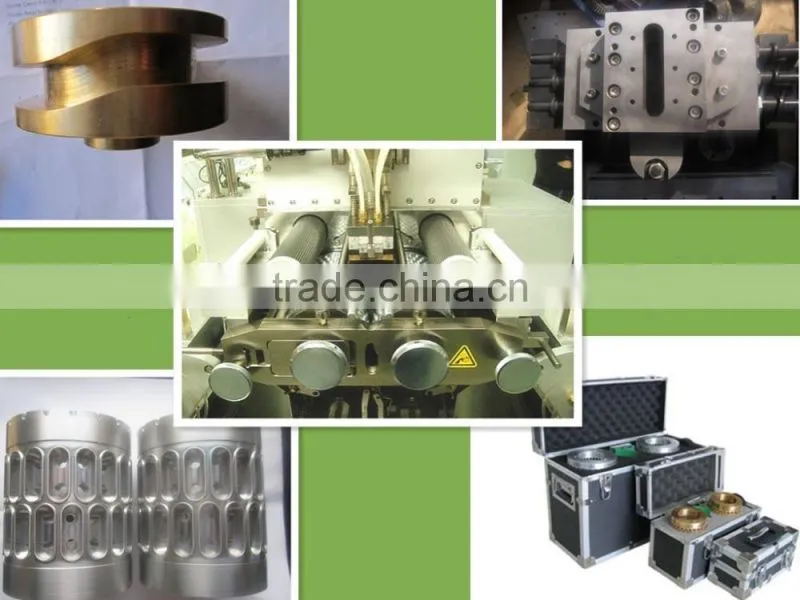

Spare parts of S403 Micro-production Softgel Encapsulation Line :
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2013
Factory Size
10,000-30,000 square meters
Total Employees
11 - 50 People
