Specifications
Full Automatic Softgel Encapsulation Machine1.Filling tolerance
2.High production
3. Non-toxic

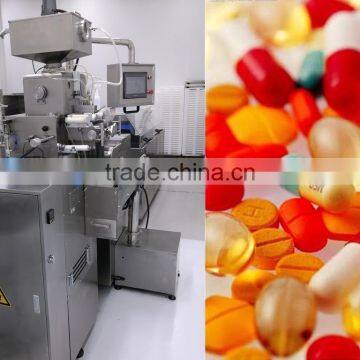

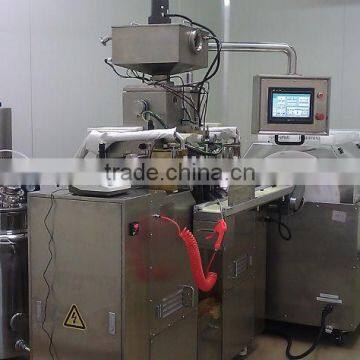

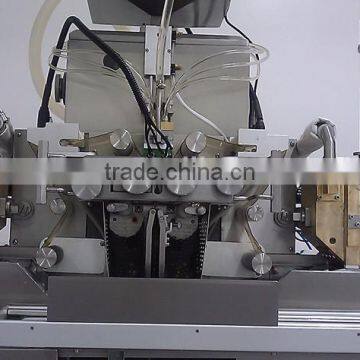

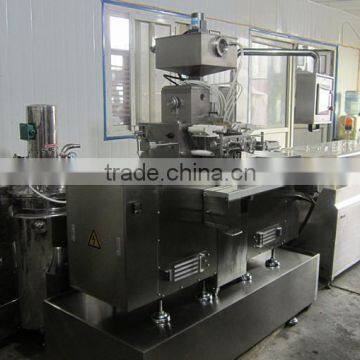

Full Automatic Softgel Encapsulation Machine, Softgel Encapsulation Machine, Full Automatic Softgel Encapsulation Machine
Specification of Softgel encapsulation machine :
The main shaft left and right holes are machined by using the boring mill imported from Switzerland,so that the runout and parallelism of the left and right main shafts are up to the international advanced level.
Micro-quantity lubrication technology is adopted for gelatine skin lubrication,realizing that the soft capsules are free from cleaning.
The compulsory cold air is designed at two sides of soft capsule outlet areas as a result the net gelatine is not easy to wind around the pill dropping unit.
PLC control is adopted for the adjustment of loading quantity the customer can realize the adjustment of medicine loading quantity by regulating the specific weight of the feeding materials and to make it simpler to adjust the loading quantity.
The pill-pressing operation process is simple and reliable because the use of pneumatic clamping system
Electric-driven lifting spray unit it can stop at any position according to needs so as to reduce the worker’s labor intensity
The rotating speeds of each gelatine skin roller and the main shaft are synchronous mechanicaiiy; as a result,the operation is simple instead of complicated adjustment of synchronization during operation
Optimized design of driving system reduces greatly the noise of whole equipment.
With the precision regulation of the gelatine box opening and digital display, it is more convenient, quickly and accurately to adjust the thickness of gelatine film.
The patent air cooling mode is adopted to cool the gelatine skin, it can avoid gelatine skin damage phenomenon under the high temperature and high humidity conditions, because it will affect the soft capsule forming.
The conveyer belt mode is used for the outlet port ,so that the soft capsules,will not be piled up at the outlet port.
The hopper is designed to keep the temperature.Therefore it is easier to press the soft capsules with mixed and suspension liquid and automatic technology is adopted for feeding.
Rectangular spout design makes the forming of suspension liquid soft capsule more beautiful.
The PLC and touch screen from the Garmany Siemens Company is adopted for the electronic control system.The PLC and touch screen from the Germany Siemens Company is adopted for the electronic control system .All frequency converters from Germany Siemens are used; all relays from France Schneider are used;all plug-socket components from German Weidmuller are used. Therefore the electronic control system is more stable and durable.
Full Automatic Softgel Encapsulation Machine Features:
We have more than 20 years of die roll design and manfacturing experience. Strong design and manfacturing team,high accuracy CNC milling machine,inspection and measuring equipments enable us to provide customized high quality softgel and paintball die roll.
Flow chart of capsule filling machine:

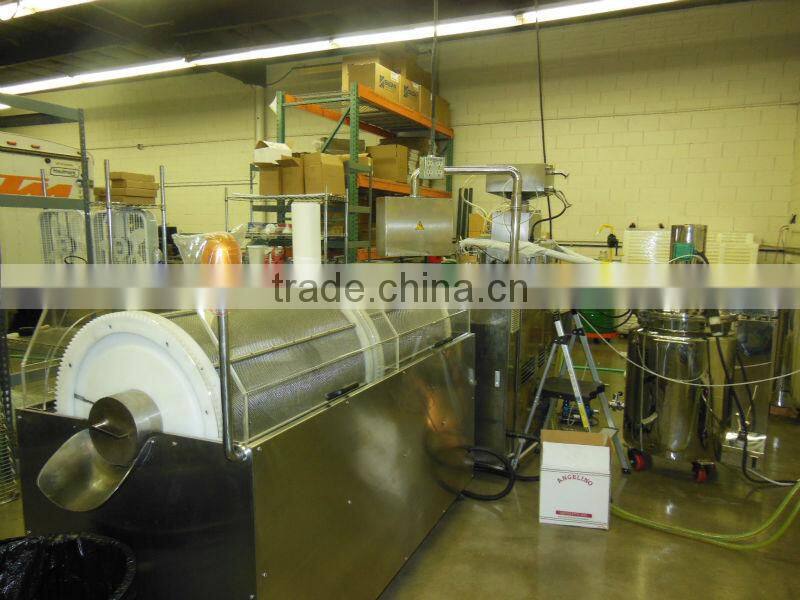

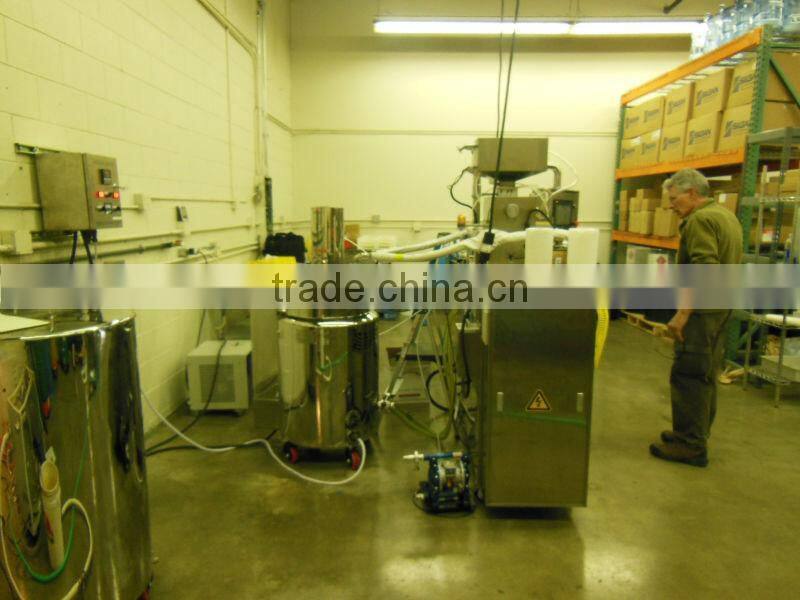

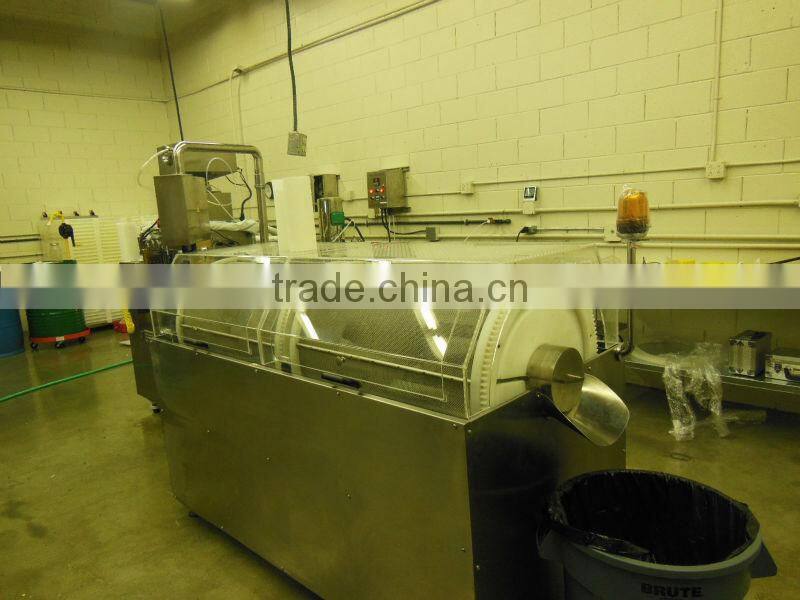

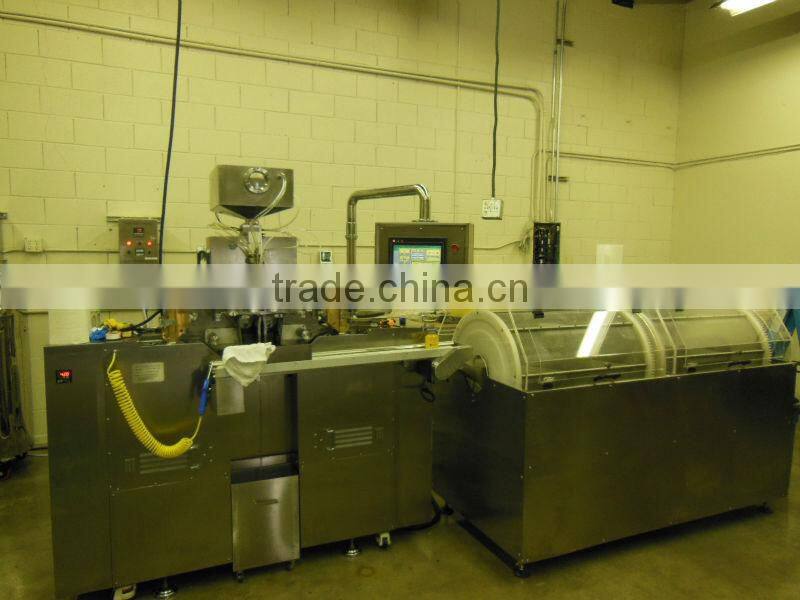

Main machine and drying machine:

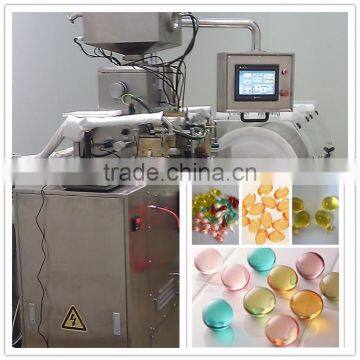

Capsules shapes:

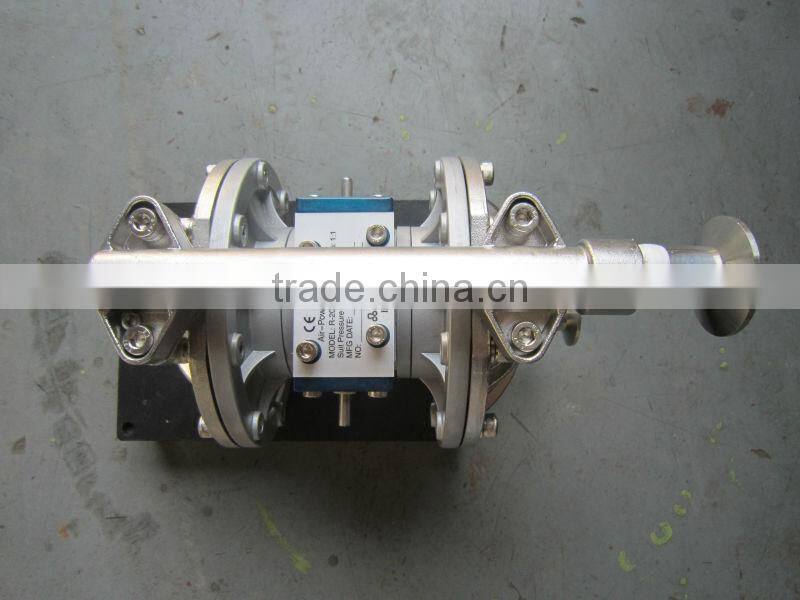

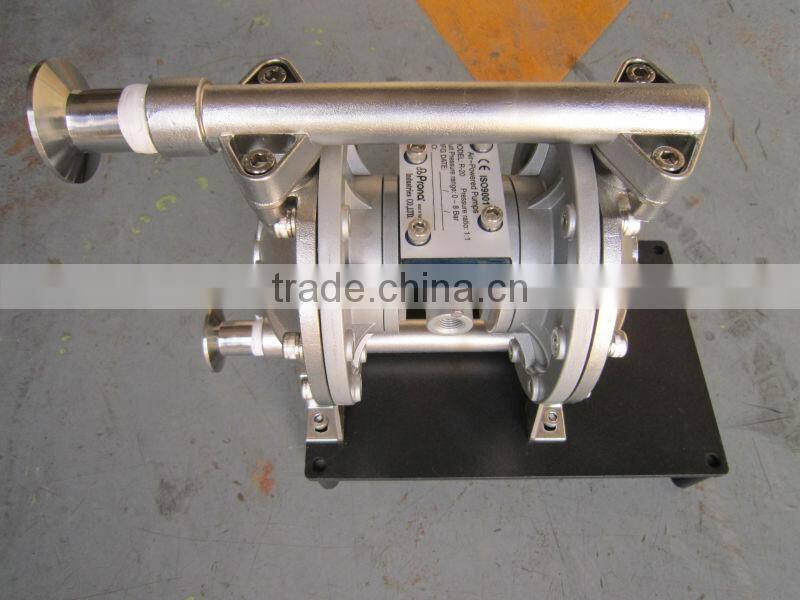

Spare parts of S403 Micro-production Softgel Encapsulation Line :
