Help CenterCNC QC11K Hydraulic Shearing Machine
Related Products
-
Hydraulic Swing Beam Shear/CNC Shearing Machine, Hydraulic Sheet Cutting MachineUS$ 1,000 - 80,000MOQ: 1 Set -
Hydraulic Guillotine Shearing MachineNegotiableMOQ: 1 Set
-
QC12Y-6x4000 Sheet Hydraulic Swing Beam Shear/CNC Shearing Machine, Hydraulic Sheet Cutting MachineUS$ 1,000 - 80,000MOQ: 1 Set
-
Q11 Mechanical Plate Shearing MachineNegotiableMOQ: 1 Unit
-
Hydraulic Swing BeamUS$ 10,000 - 40,000MOQ: 1 Set
Specifications

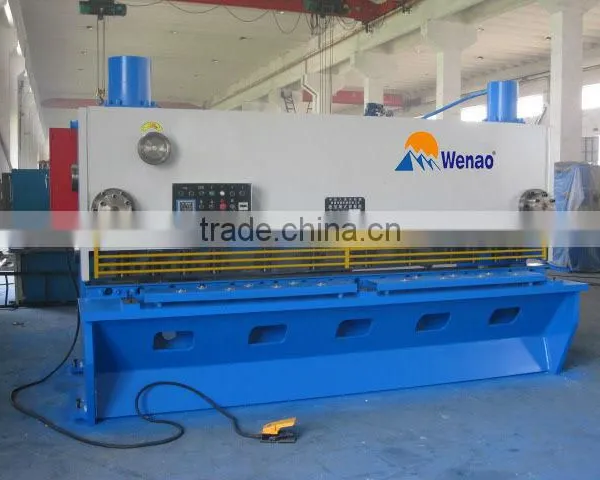

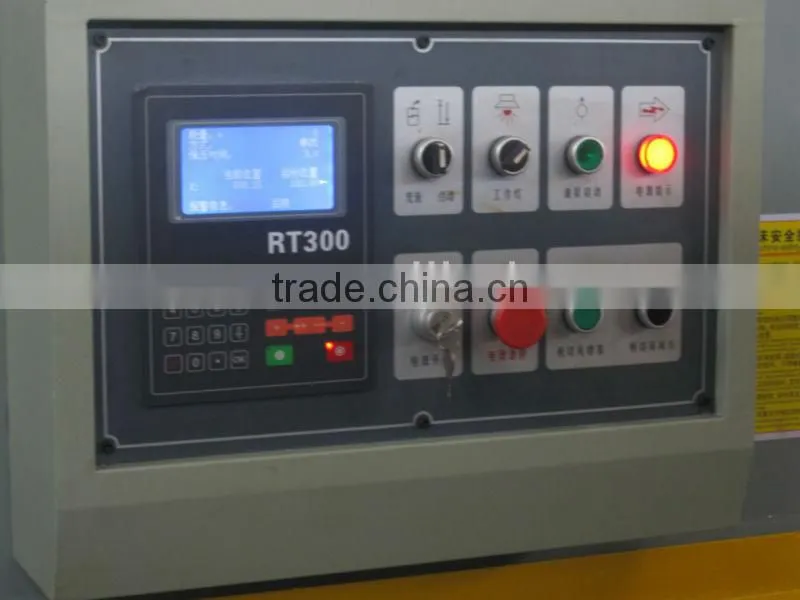

CNC QC11K hydraulic shearing machine1. CNC system
2. With good rigidity and stability.

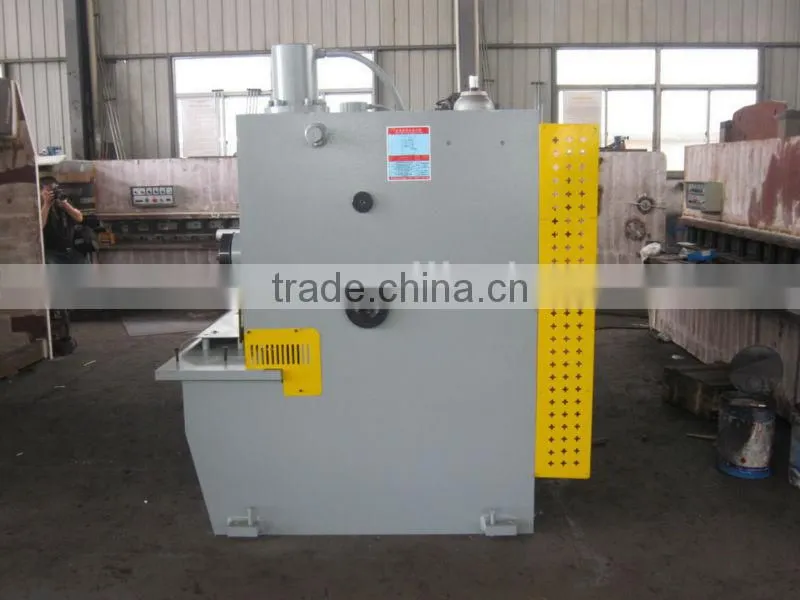

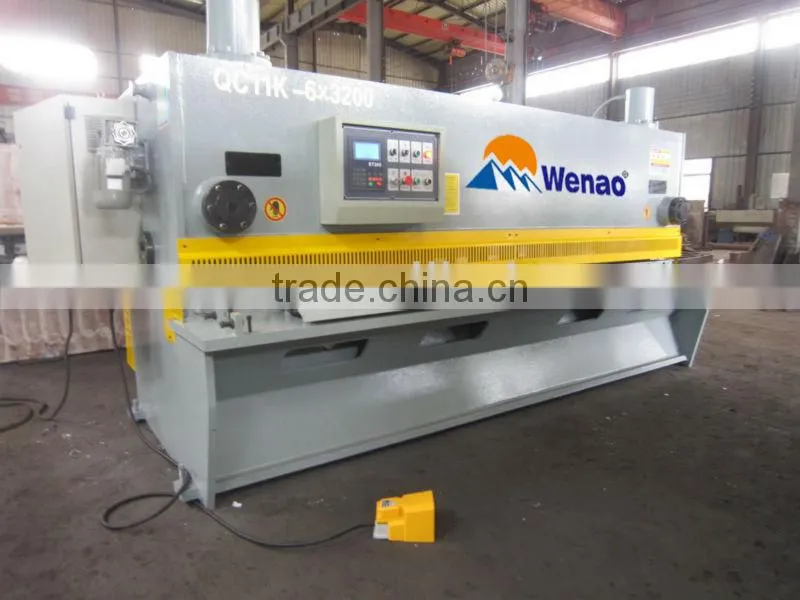

CNC QC11K hydraulic shearing machine | CNC QC11K hydraulic shearing machine | CNC QC11K hydraulic shearing machine
What is your machine quality ?
- Answer: We accept SGS to check our quality before shipping.
How to do if the machine is broken ?
- Answer: Free repair within one year.
What is your payment terms ?
- Answer: 30% advance payment,70% against copy of B/L(after shipping).
- How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
- How to check shipping cost from China to my country?
Very simple, tell us your city or port.
- How to check imported charges or tax ?
Call your Customer. tell them machine HS code.
Press brake and rolling machine are 84622990. shearing machine is 84623990.
- How to see our machine in your local place?
We have sold lots of machines to the world, in most situation, you can see our machine in your country, however, we can not promise 100%,so,confirm with us by email.
- How to repair&maintain our machine ?
Generally, the hydraulic machine is not easy to break. even though the problem occur, It is small problem.we can solve it through email and video.
- do you offer commissioning service?
yes, we can offer commissioning service, but, the buyer need to afford plane tickets.
- Do you offer teaching&training ?
yes, we prefer that you arrange your worker to China. or our engineer go to your country.
- what policy for broken parts?
within one year, we offer free parts.
if beyond one year, you need to buy by factory cost.
Description:
Guillotine cutting machine is equipped with the productive features and safety devices for optimum, accurate cutting performance usually only found on more expensive units.
Feature for feature, they are a smart, economical choice for cutting plate. Three pairs of rollers ensure optimum guiding of the cutting beam.
All of these features combined with variable rake angle minimise any deformation of materials even with thin strip cutting.
We can also supply models up to 12000mm in length & cutting capacities up to 50mm plate thickness on request.
Feature
1.motorised back gauge to 800 mm range
2. motorised variable rake and blade gap setting
3.stroke counter, single stroke and continuous cutting modes
4.heavy duty 'ball transfers' fitted as standard
5.heavy duty squaring arm with stainless steel scales
6.rear safety fencing with 'safety cut-off' guards
7.open side throat for long length slitting
8.sturdy remote operation foot-pedal with 'emergency stop' fitted
9.CE compliant
--Washer, some pieces
--Oil gun, 1 piece
--Foot pedal
Character:
1.All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability
2.Integrated hydraulic transmission system, with good reliability
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality
4.Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
5.Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient
6.Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet
7.Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
8.Function of shearing in sections, function of lamplight illume device
9.Optional rear material holding device
Main components:
--Integrated hydraulic system-OMEGA-USA
----Axial plunger pump-SHANGHAI-China famous
-- Main motor-SIEMENS-Germany
--Japan VQUALA seals-JAPAN
-- Main electric parts-SIEMENS-Germany
Accessory:
--Front extensive arm, 5 pieces
--Anchor bolt, 4 pieces
--Nut, some pieces
--Washer, some pieces
--Oil gun, 1 piece
--Foot pedal
Performance:
--Whole
* |
Specification |
Value |
Unit |
1 |
Shearing thickness (Q235A) |
6 |
mm |
2 |
Shearing width |
3200 |
mm |
3 |
plate tensile strength |
450 |
n/mm2 |
4 |
Shearing angle |
0.5-2 |
degree |
5 |
Strokes |
10-24 |
n/min |
6 |
Throat depth |
200 or more |
mm |
7 |
Length of blade |
1300*5+ |
mm |
8 |
Blade material |
6CrW2Si |
CrW2Si |
9 |
Height of working table |
800 |
mm |
10 |
Backgauge range |
20-600 |
mm |
11 |
Main motor power |
7.5 |
kw |
12 |
Oil pump |
40 |
L/min |
13 |
Measurement |
3650*1820*1980mm |
mm |
14 |
Weight |
7000 |
kg |
15 |
Votage |
380V/50Hz/3Phase |
v |
16 |
Number of hold downs |
14 |
piece |
