Specifications
Hydraulic Shearing Machine1. easy for cutting
2. the cutting angel can be adjusted
3. good quality with best service

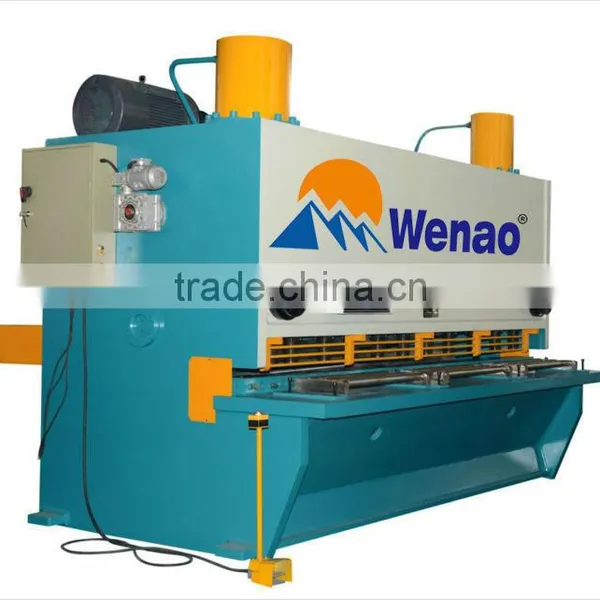

Hydraulic Shearing Machine
QC11Y series hydraulic guillotine shear, QC11Y series shearing machine , hydraulic shearing machine
Performance and Characteristics:
1. Welded steel structure and vibratory stress relief, so the precision is well maintained.
2. Adopts three point rolling guide, disc spring to eliminate the gap betweent guide to improve the quality of cutting.
3. Numerical display ofr blade gap and its adjustment is fast and easy.
4. Electric adjustment for back gauge, and its adjustment is fast and easy.
* |
Specification |
Value |
Unit |
1 |
Shearing thickness (Q235A) |
8 |
mm |
2 |
Shearing width |
3200 |
mm |
3 |
plate tensile strength |
450 |
n/mm2 |
4 |
Shearing angle |
0.5-2 |
degree |
5 |
Strokes |
10-24 |
n/min |
6 |
Throat depth |
200 or more |
mm |
7 |
Length of blade |
1300*5+ |
mm |
8 |
Blade material |
6CrW2Si |
CrW2Si |
9 |
Height of working table |
800 |
mm |
10 |
Bckgauge range |
20-600 |
mm |
11 |
Main motor power |
11 |
kw |
12 |
Oil pump |
40 |
L/min |
13 |
Measurement |
3850x1750x980 mm |
mm |
14 |
Weight |
7500 |
kg |
15 |
Votage |
380V/50Hz/3Phase |
v |
16 |
Number of hold downs |
14 |
piece |
