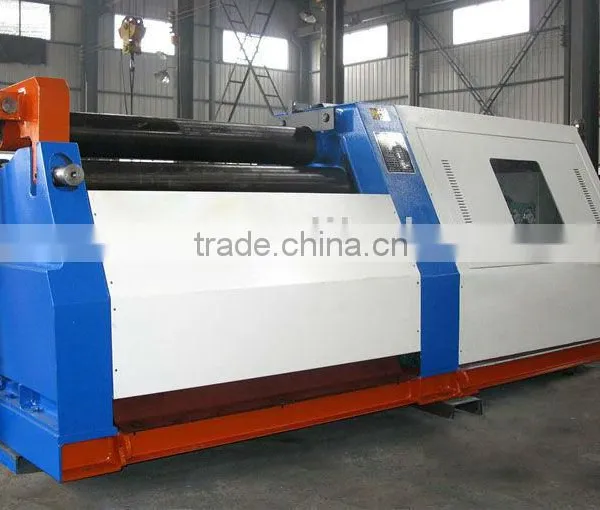

4-roll Hydraulic Bending Machine
US$ 10,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mechanical 3-roller Plate Rolling Machine,Rolling MachineUS$ 5,000 - 99,999MOQ: 1 Set -
Series W11Y Hydraulic 3-roller Symmetrical Plate Rolling MachineUS$ 1,000 - 455,000MOQ: 1 Set
-
Upper-roller Universal Rolling Machine & Plate Rolling MachineUS$ 30,000 - 79,999MOQ: 1 Set
-
Hydraulic Universal Plate Bending Rolls MachineUS$ 2,000 - 80,000MOQ: 1 Set
-
Mechanical Symmetry Type Three Roller Bending/ Rolling MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
WENAO
Model Number
W12NC-30x2500
Machine Type
Roll Forming Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Other, Hydraulic, 37kw
Automation
Automatic
Extra Services
Heat Treating
Certification
Other, ISO 9001:2000 CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

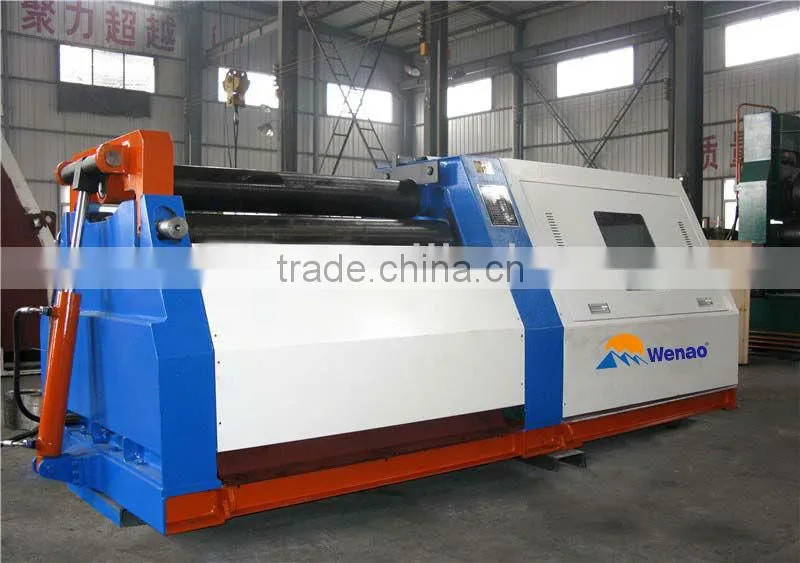

4-roll hydraulic bending machinehigh efficiency(driving power equivalent 60% traditional)
Permanent lubrication technology
4-roll hydraulic bending machine, Thread rolling machine, Metal rolling machine Rolling diameter can catach 1.1 times of the top roller
MACHINE CHARACTERISTICS SL FOUR ROLLER ROLLING
CNC control system MACHINE TWO STRUC-
Leveling easily TURAL CHARACTERISTICS
Once circle forming Arc swing of the side roller,leverage increased
Large cone rolling more convenient pressure forces
Easy to correct the wrong edge Proportional valves on both sides of the roll syn-chronization
FOLLOWING USERS APPLY TO USE THE MACHINE
First use of the user,because this is one of the most easy-to-operate machine
Operators lack of inspection requires high productivity
Requires high accuracy,improving quality
Want only one operator,reducing labor costs
Due to the large size of the board,production of high or for security reasons require handling device,
Feeding plate form,side and upper feeding device
Want to use CNC operations,reduce operational personnel action levels and other factors
| Model | Max.rolling | Max.pre-rolling | Plate | Diameter of upper roller | Main motor |
| thickness | thickness | width | power | ||
| mm | mm | mm | mm | kw | |
| W12NC-25x2000 | 25 | 20 | 2000 | 350 | 22 |
| W12NC-25x2500 | 25 | 20 | 2500 | 400 | 37 |
| W12NC-30x2000 | 30 | 25 | 2000 | 300 | 37 |
| W12NC-30x2500 | 30 | 25 | 2500 | 400 | 37 |
| W12NC-30x3000 | 30 | 25 | 3000 | 470 | 45 |
| W12NC-40x3000 | 40 | 32 | 3000 | 550 | 55 |
| W12NC-50x3000 | 50 | 40 | 3000 | 610 | 55 |
| W12NC-60x3000 | 60 | 50 | 3000 | 670 | 75 |
| W12NC-70x3000 | 70 | 60 | 3000 | 730 | 75 |
| W12NC-80x3000 | 80 | 65 | 3000 | 780 | 90 |
| W12NC-90x3000 | 90 | 75 | 3000 | 820 | 90 |
| W12NC-100x3000 | 100 | 80 | 3000 | 880 | 110 |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2013
Factory Size
10,000-30,000 square meters
Total Employees
11 - 50 People
