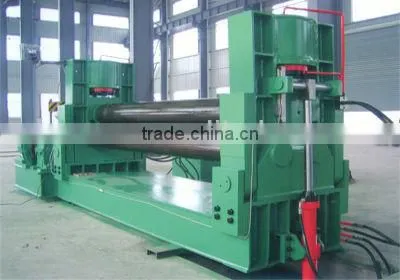

Hydraulic 3-roller Symmetrical Plate Rolling Machine

Hydraulic 3-roller Symmetrical Plate Rolling Machine thumbnail-1
Hydraulic 3-roller Symmetrical Plate Rolling Machine photo-1
US$ 8,000 - 48,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name WENAO
Model Number W11Y-25X2500
Machine Type Roll Forming Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Other, Hydraulic, 7.5kw
Automation Automatic
Extra Services Machining
Certification Other, ISO 9001:2000 CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Hydraulic 3-roller symmetrical plate rolling machine
Cone device
Up driver roller
Pre-bending function
ISO&CE

Hydraulic 3-Roller Symmetrical Plate Rolling Machine, Specification plate bending machine, Plate rolling machine

Detailed Product Description

 This machine structure pattern three roller symmetrical type, have roller act as vertical sport of going up and down in two roller central symmetrical position, but acquisition through the mother’s worm transmission of pole silk of silk, the roller two times does rotatory sports, through moderate output gear wheel of plane and lay roller gear wheel clench the teeth , make for roll panel offer torsion.





Specification type
The largest thickness mm of a board
The largest width mm of a board
A board surrenders limit Mpa
Speed m/min of a board
Fully loaded with the minimum diameter mm
Have the diameter mm of the roller
Make the diameter mm of the roller
Put roller centre-to-centre spacing mm
Power kw of the main electrical machinery
Power kw of electrical machinery of the hydraulic pressure
W11-30*2000
30
2000
245
4
1200
360
290
480
22
7.5
W11-25*2500
25
2500
245
4
1200
370
300
480
22
7.5
W11-30*2500
30
2500
245
4
1200
420
360
550
30
11
W11-25*3000
25
3000
245
4
1200
430
370
550
30
11
W11-30*3000
30
3000
245
4
1200
450
390
600
30
11
W11-40*2500
40
2500
245
3.5
1400
500
400
600
37
15
W11-40*3000
40
3000
245
3.5
1600
540
440
600
45
18.5
W11-50*3000
50
300
245
3.5
2000
580
480
750
55
22
W11-60*3000
60
3000
245
3.5
2400
660
560
800
75
30
W11-70*3000
70
3000
245
3.5
2800
710
620
850
90
37
W11-80*3000
80
3000
245
3.5
3200
770
680
900
90
37
W11-90*3000
90
3000
245
3.5
3600
820
730
950
110
45
W11-100*3000
100
3000
245
3.5
4000
860
770
1000
110
45
W11-110*3000
110
3000
245
3.5
4400
900
810
1080
132
55
W11-120*3000
120
3000
245
3.5
4800
950
860
1160
132
55





                           Hydraulic 3-roller symmetrical plate rolling machine
