Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Stone Crusher Machine/High-quality Crusher

Stone Crusher Machine/High-quality Crusher

Stone Crusher Machine/High-quality Crusher thumbnail-1
Stone Crusher Machine/High-quality Crusher photo-1
US$ 1 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Application:
crush, mining, construction, smelt, railway, highway, railway
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Nantong/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Impact Crusher
Application crush, mining, construction, smelt, railway, highway, railway
Motor Type AC Motor
Power(W) 110-132kw
Capacity(t/h) 70-120
Place of Origin Jiangsu, China
Brand Name Wenao
Model Number PF1210
Dimension(L*W*H) 2690*2338*2890 mm
Weight 15T, 15t
Certification ISO9001:2000 CE
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1,Good capacity
2,Different kinds of specifications
3,Widely used

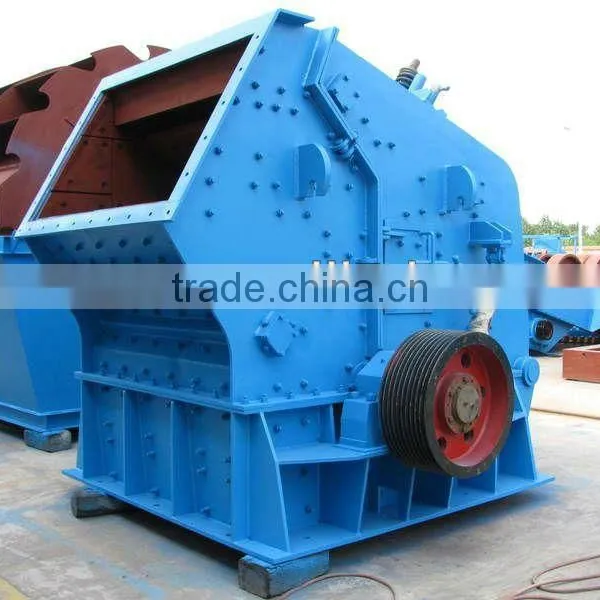

stone crusher machine/ PF/PFV Series Impact Crusher



 Main Descriptions :



 PFV Series Impact Crusher is mainly applied in secondary crushing and capable of crushing the



material with compressive resistance not more than 320 Mpa which is suitable to produce



aggregates for high class road, hydroelectric power, construction industry.The machine can produce



excellent shape of product and mainly the shape of product is cubic with small fraction of elongated



flak particle shape, suitable for aggregate shaping. And the machine is equipment with new type



wear resisting below bar and liner plate which has longer life expectancy.



The Technical Parameters of   PF/PFV Series Impact Crusher





Model

Rotor Spec(mm)

Feed Opening Size(mm)

Max Feed size(mm)

Capacity

(t/h)

Motor Power(kw)

Overall Dimensions       L×W×H (mm)

Weight(t)

PF1007

1000×700

400×730

300

30-50

37-55

2400×1558×2660

9.5

PF1010

1000×1050

400×1080

350

50-80

55-75

2400×2250×2620

12.2

PF1210

1250×1050

400×1080

350

70-120

110-132

2690×2338×2890

14.9

PF1214

1250×1400

400×1430

350

100-180

132-160

2690×2688×2890

18.6

PF1315

1320×1500

860×1520

500

160-250

180-260

3096×3273×2667

19.3

PF1415

1450×1520

1145×1520

950

220-450

220-315

3745×3022×3519

27

PF1520

1520×2000

830×2050

700

300-550

315-440

3581×3560×3265

38.7

PF1818

1800×1800

1600×1850

1000

600-850

650-900

4180×4200×4900

75



 stone crusher machine/High-quality crusherstone crusher machine/High-quality crusher
