Specifications
PCKW Series Reversible Hammer Crusher1.High crushing ratio
2.Even final particles
3.Stable performance
PCKW Series Reversible Hammer Crusher
Introduction:
The series product is a new type product belonging to Hammer Crusher. It is called as Reversible Nograte
Hammer Crusher because it is reversible without grate. It solves the problem of crusher being b
locked by wet material, improves hammer utilization ratio, reduces frequency of hammer change and
ensures uniform granularity of discharged material.
The series crusher can be used as a primary equipment for finely crushing medium-hard brittle material such as coking coal, small limestone, gypsum, alum, brick, tile, etc.
compressive resistance of which is up to 150MPa
Features And Bebifits
This product has the feature of big feeding size: can from 80-150 mm, small grain-size, high yield, finished product ratio can reach more than 90% under 5mm, uniform grain type, high
production capacity, reversible operation, adjustable plate, simply process, simple structure, convenient
maintenance, stable operation is the major feature of this series of crusher
1)Gate bar manufactured with special spring steel, both sides can use, long using life.
2)270 ° direction discharge in crushing cavity, higher yield.
3Feeding from the central of top machine, and positive and negative can reversing, t
he hammer head not head back that is its can both use.
4) Drag screen frame can be adjusted up or down, so the sand rate is higher
Work Principle Of Reversible Crusher:
Reversible Impact Hammer Crusher Materials enter crushing chamber from feeding hopper, and are
impacted to wear-resisting toothed plates on inlet by high speed hammers, this is the first crushing process. Crushed
materials with almost the same size enter the main crushing chamber for second crushing. Materials
from main crushing chamber are impacted between toothed plates and hammers for many times, and
discharged from the outlet. Final product size can be controlled by adjusting space between rotor and
impact plates

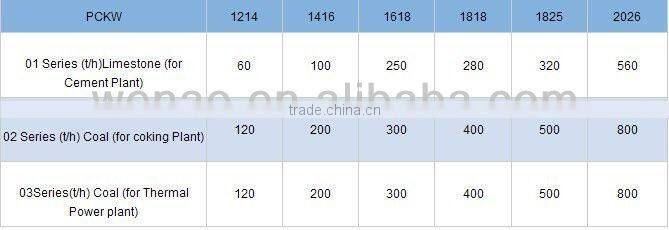

Parameter:
Appendage
Apart from the drum dryer , other related machine such as feeder, grinder, crusher and dryer are also available in our factory, it means we can offer a whole product line.
• We have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most
competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your
first inquiry order.
• Our equipments have been exported to more than 100 countries all around the world and gain
a good reputation both at home and abroad.
• We have established cooperation relationship with many universities to update technology and
meet various needs from our customers.
• Our company not only provides kinds of mining equipment( crushers, ball mills, dryer, but also offers the small machines for industrial
experiment and spare parts.)
& In order to give you the quotation in time,please tell me the answers of the following
question
1.What's raw materials?
2.The moisture and size of raw materials?
3.Capacity you need?
4.The shape and size of the final product you prefer?
