Home > Products > Packing and Printing Machine > high efficiency and professional double chamber vacuum packing machine
high efficiency and professional double chamber vacuum packing machine
- 500 Set / Sets per Month
- Qinagdao/Tianjin
- T/T Credit Card
You May Like
-
200-400 boxes/h and have stock keep fresh vegetable box packing machine
-
have stock and compatitive price inner & outer tea bag packing machine
-
2014 high efficiency and professional coding machine
-
200-400 boxes/h and have stock Modified Atmosphere Packing machine
-
high efficiency and low price pellet electronic quantitative packing machine
-
Automatic and high efficiency Automatic incense stick packing machine with counting and sealing function
Product Details
| Condition | New | Application | Food, Medical | |
| Packaging Type | Bags | Packaging Material | Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 220v/380v | Power | different | |
| Place of Origin | Henan, China | Brand Name | Taizy | |
| Model Number | tz | Dimension(L*W*H) | different | |
| Weight | 280x380x350mm | Certification | ISO/CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
high efficiency and professional double chamber vacuum packing machine 0086-13503826925
the introduction of double chamber vacuum packing machine
We apply the most advanced Model TZ-500~1000 vacuum and nitrogen-filling packing machine in the world.This multi-functional packaging equipment integrates the automatic nitrogen making,vacuum extraction,heat-sealing into one.The work programs are automatically controlled by micro-computer system.
The characteristics of double chamber vacuum packing machine
1)Applicable to all kinds of plastic film bags, composite film bag, vacuum-packed foil bags.To pack meat products,poultry products,pickled products,seafood,garlic products,wild vegetable,food medicine,biological products,electronic components and so on.
2)packaging machine can prevent the products from oxidization and mildew as well as mousture .keeping the quality and frehness and prploging the storage time.
The specification of double chamber vacuum packing machine
single chamber
Machine Model | TZ-220Y | TZ-400S | TZ-500S | |
Maximum Vacuum Degree | -1MPa | |||
Working Speed | 3-4 Cycles/Min | 3-4 Cycles/Min | 2-3Cycles/Min | |
Effective Chamber Size | 200mm×240mm×50mm | 440×440×130mm | 525×525×130mm | |
Sealing Width | 8mm | 12mm | ||
Sealing Length | 300mm | 400mm | 500mm | |
Power Supply | 220V/50Hz/1Ph | 380V,50Hz,3 Phase or 220V,50Hz,Single Phase | ||
Power Consumption | Sealing | 0.12kw | 0.8kw | 1.0kw |
Vacuum Pump | 0.18kw | 0.75kw | 0.75kw | |
Net Weight | 35kg | 100kgs | 120kgs | |
Shipping Dimensions | 280mm×380mm×350mm | 520×490×930mm | 640×540×1000mm | |
Vacuum Pump Capacity | 1.8m3/h | 20m3/h | ||
double chamber
Machine Model | TZ-400D | TZ-500D | TZ-600D | |
Maximum Vacuum Degree | -1MPa | |||
Working Speed | 4-5 Cycles/Min | 3-4 Cycles/Min | 3-4 Cycles/Min | |
Effective Chamber Size | 400×465×110mm | 500×465×110mm | 600×465×110mm | |
Sealing Width | 12mm | |||
Sealing Length | 400mm | 500mm | 600mm | |
Power Supply | 380V,50Hz,3 Phase or 220V,50Hz,Single Phase | |||
Power Consumption | Sealing | 1.7kw | 2.0kw | 2.3kw |
Vacuum Pump | 0.75kw | 1.5kw | 1.5kw | |
Net Weight | 135kgs | 135kgs | 193kgs | |
Shipping Dimensions | 1030×640×920mm | 1230x680x935mm | 1230x680x935mm | |
Vacuum Pump Capacity | 20m3/h×2 | |||

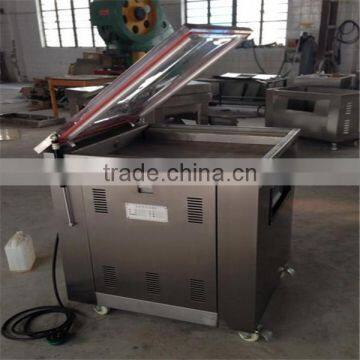

The pictures of double chamber vacuum packing machine
the product of double chamber vacuum packing machine
