Home > Products > packing machine > High Speed Vacuum Emulsifier
High Speed Vacuum Emulsifier
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
Product Details
| Application | Apparel, Chemical, Medical | Condition | New | |
| Packaging Material | Plastic | Packaging Type | Barrel, Belt, Bottles, Cans, Pouch |
Product Description

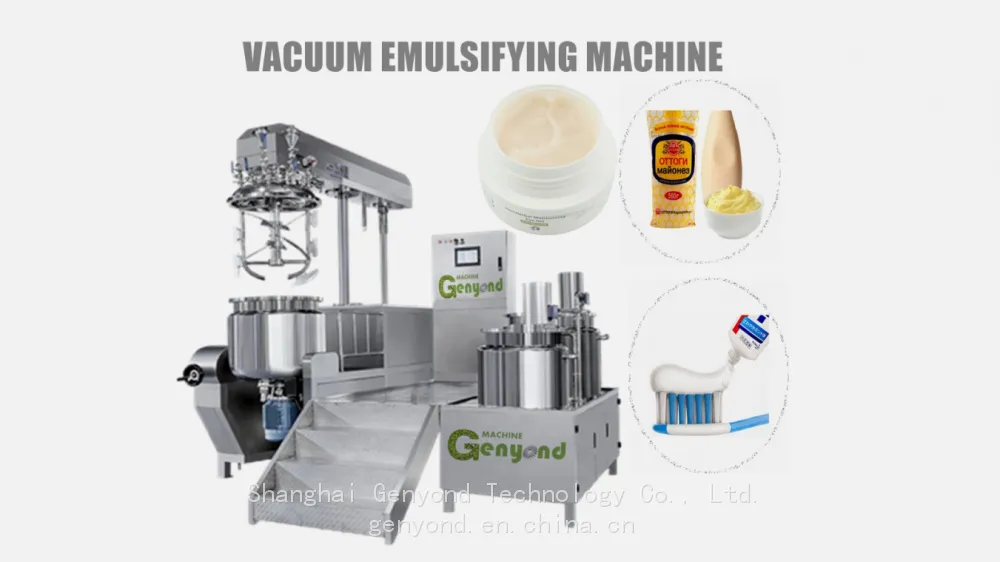

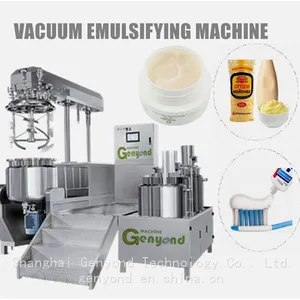

vacuum emulsifier
Description
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilier, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Features:
1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min
No | Item | Data |
1 | Voltage | AC380V/3PH (customized) |
2 | Capacity | 300L (100L -5000L can be customized) |
3 | Mixing system | Frame scraper mixer and high shear homogenizer emulsifier mixer |
4 | heating system | Electric heating ( steam heating is optional) |
5 | control system | Button control panel ( PLC touch screen is optional) |
6 | Motor | Siemens or ABB |
7 | Converter | Delta or Mitsubishi |
8 | Working pot structure | 3 layers stainless steel , double jacker |
9 | Function | Vacuum mixer, vacuum defoaming, vacuum mixing , vacuum emulsifying, heating, |
Technical parameter
Model | Effective | Emulsifying Motor | Agitator | Vacuum pump | electirc Heating power/kw | Steam heating pressure /Mpa | |||
Capcity/L | |||||||||
KW | RPM | KW | RPM | KW | Limit Vacuum | ||||
GYE-5L | 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
GYE-10L | 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
GYE-20L | 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
GYE-50L | 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
GYE-100L | 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
GYE-200L | 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
GYE-300L | 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
GYE-500L | 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
GYE-1000L | 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
GYE-2000L | 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam hetaing | 0.2 |
GYE-5000L | 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
The parameters for reference ONLY, all the machines can be customized accordingly. | |||||||||
Company Profile

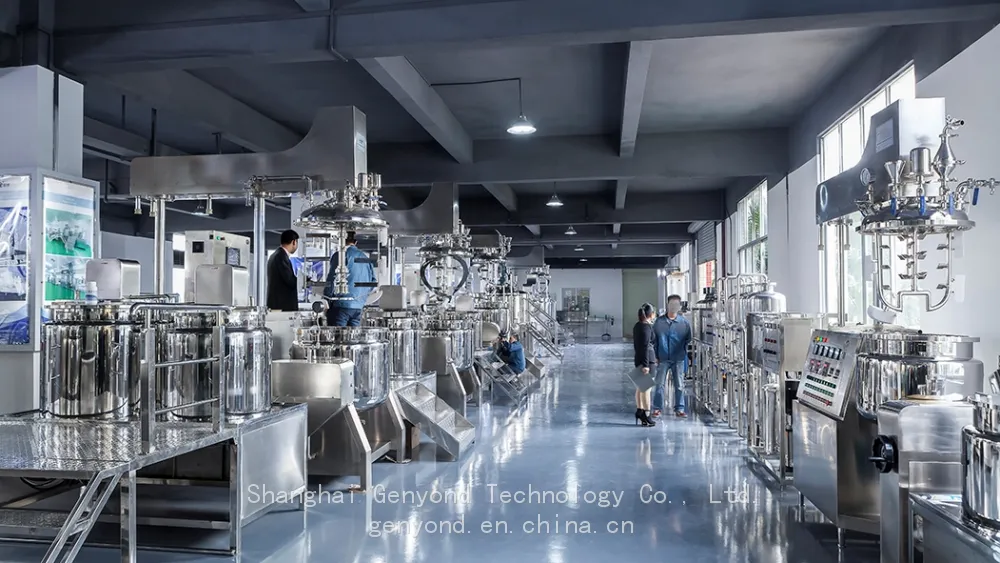

Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
