Hot sale automatic simple dry mortar production machines
we are professional for 20 years
Contact:Ms lena
Mobile: 0086-13837162172
Skype: lenamachinery
QQ:2949647558
Features
1. The mixer is horizontal cylinder, has three layer inside and outside,
has a unique structure, low noise, smooth operation, long service life,
easy installation and maintenance;
2.Widely used in external thermal insulation mortar powder, paint,
waterproof materials, chemical, ceramics, refractory materials, and
other industries; we also can do stainless steel mixer use for food.
3.Fast mixing speed, high uniformity, no dead Angle,small residual.
Can be fitted with screw hoist or bucket elevator according to the
customer required, Horizontal body is equipped with a moving door,
easy to clear up; Can be made of carbon steel, stainless steel, stainless
steel mixer.
Working principle
Dry mixing machine designed into three layers inside and outside the
spiral blades. When the machine work, inside and outside spiral turning,
Internal screw drives the material near the axis to do the axis of rotation,
steering on both sides to promote from within,the material being into the
wall; The outside screw drive the material close to the wall do the axis of
rotation, axial by both sides to promote, the material being into the inter
nal gathered together, and make the ribbon agitator maximum range of
turning in cylinder body , materials in the barrel convective circulation,
shear mixing, complete material fast mixing in a short time.
Application
Widely used in chemical,pharmaceutical, food, compound fertilizer,
health care products, dyes, paints, rubber, building materials, refrac
tory materials, rare earth, plastic, glass, thermal insulation mortar,
putty powder, putty paste, Lacquer , pharmaceutical, chemicals, feed,
refractory materials, ceramic materials and new materials, nuclear
power industry such as solid - solid (i.e., powder and powder), solid-plasma (i.e., powder in rubber slurry) material mixing.
Technical parameters
Model |
TZ-300 |
TZ-500 |
TZ-1000 |
TZ-2000 |
Capacity |
300KG/batch |
500KG/batch |
1000KG/batch |
2000KG/batch |
Output |
1000-2000kg/h |
2000-3000kg/h |
4000-5000kg/h |
5000-7000kg/h |
Thickness |
3mm |
3mm |
3mm |
3mm |
Main power |
3kw |
5.5kw |
7.5kw |
11kw |
Volume |
450L |
850L |
1800L |
3500L |
Mixing time |
3-8min/batch |
3-8min/batch |
3-8min/batch |
3-8min/batch |
Weight |
500kg |
1000kg |
1500kg |
2000kg |
|
Screw conveyor |
2.2*0.165 |
2.8*0.165 |
3.2*0.165 |
3.5*0.219 |

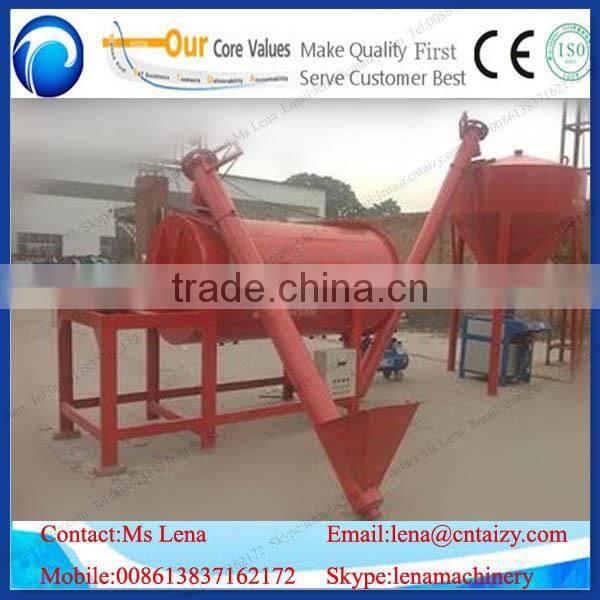

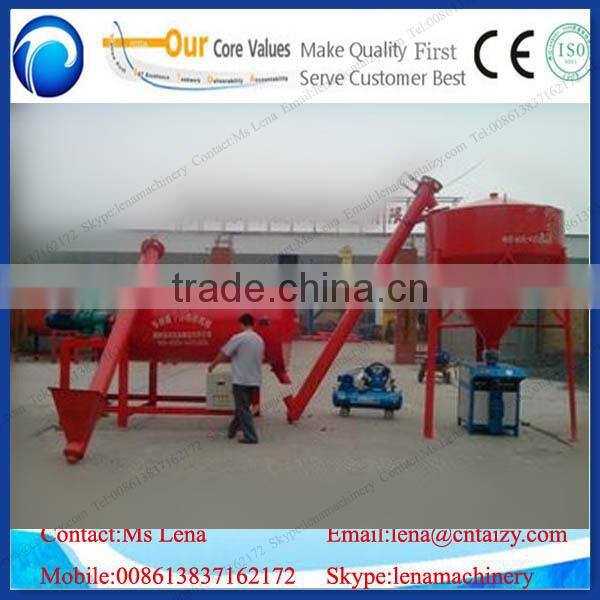

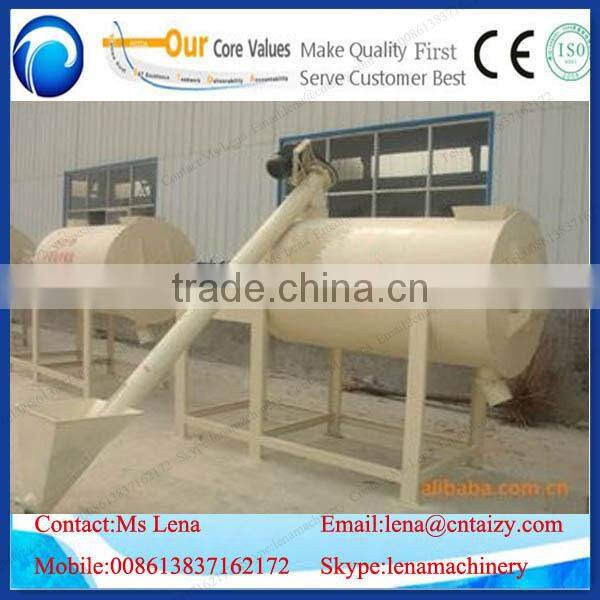

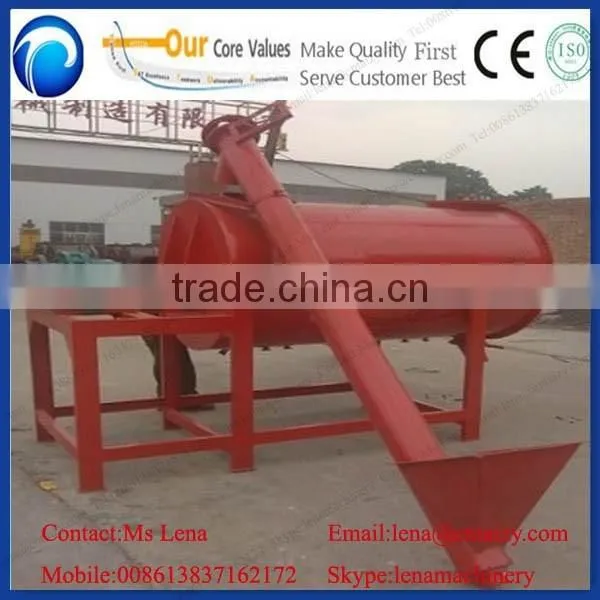

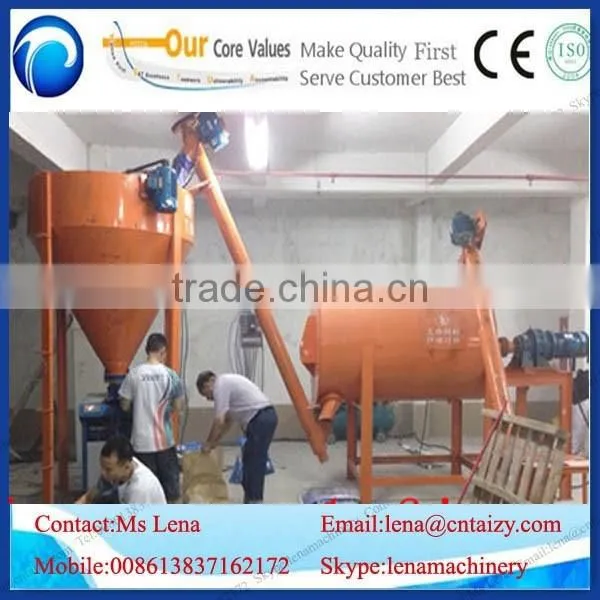

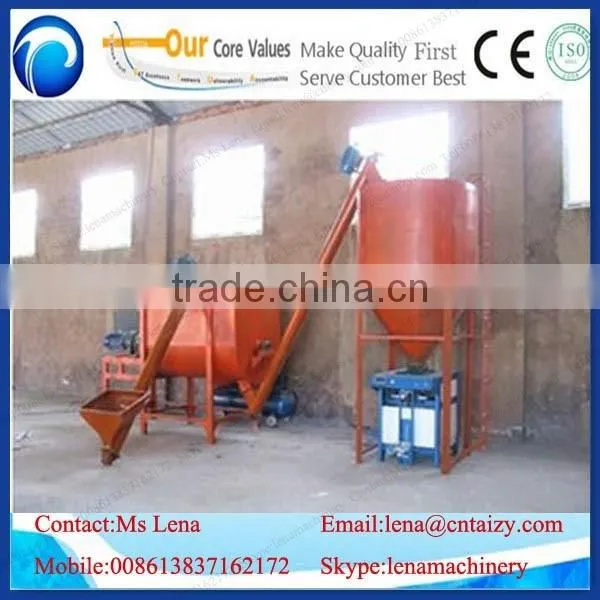

Machineshow

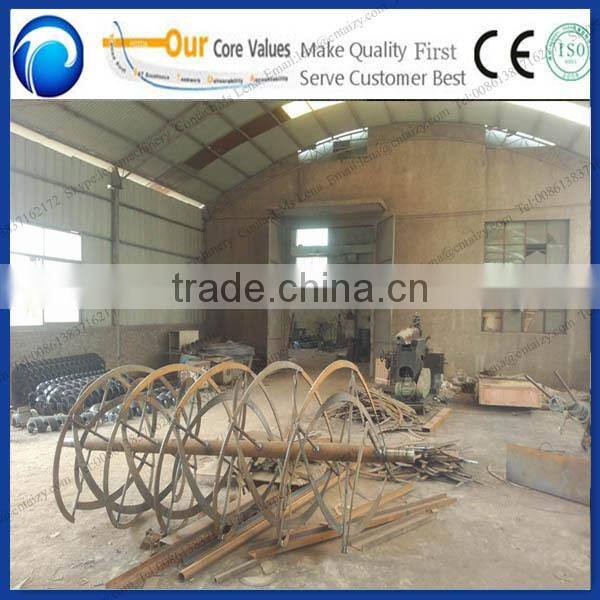

Details

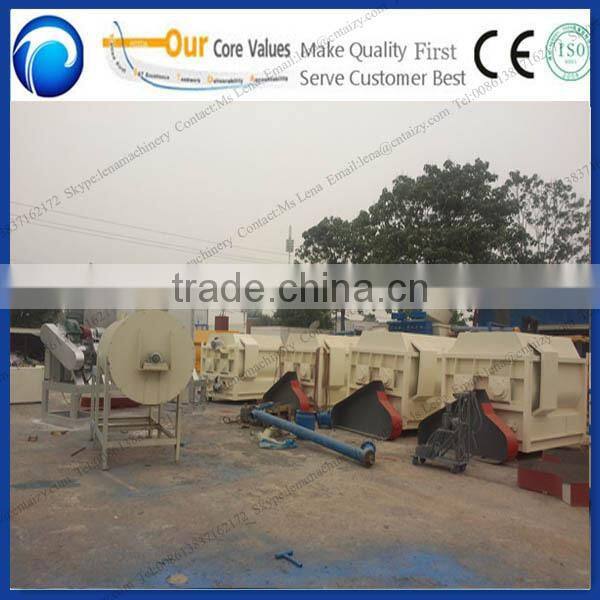

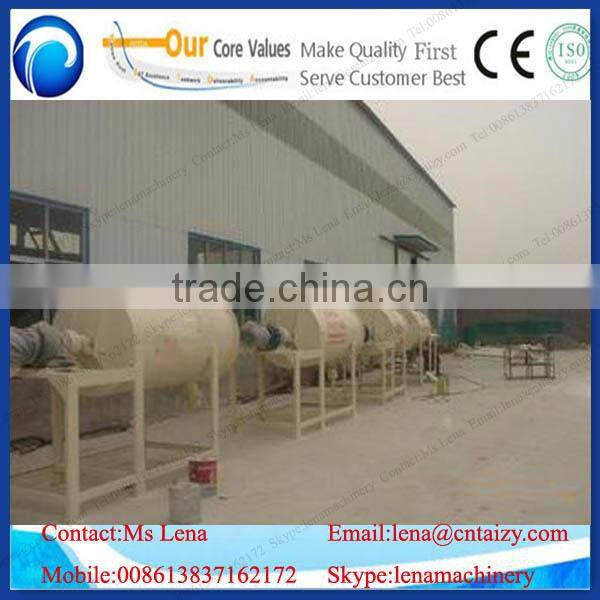

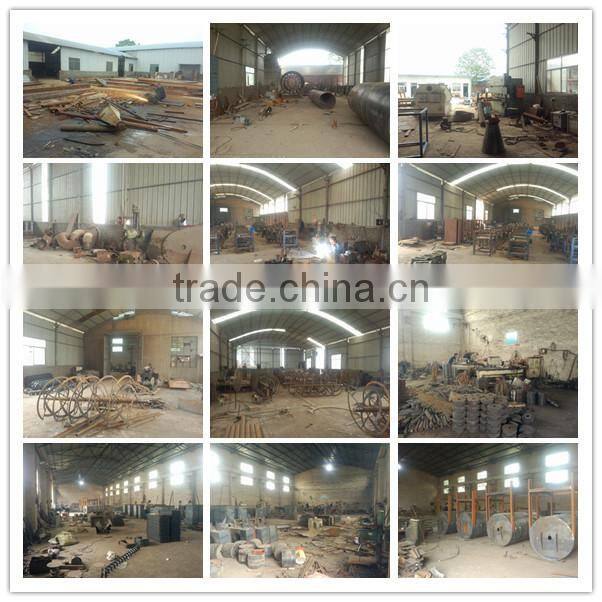

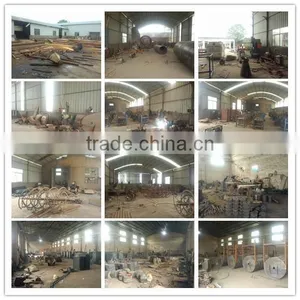

Factory view

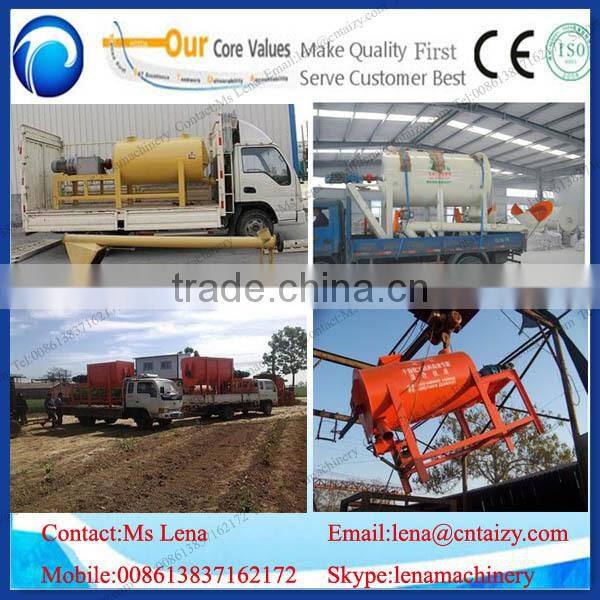

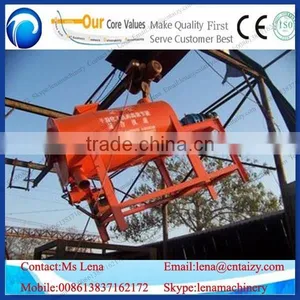

Delievery
If you are interested in our machine or would like to know more
information, please contact with us now.
We are looking forward to cooperating with you.
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best design
* cost/benefit analysis
* to support factory layout
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
