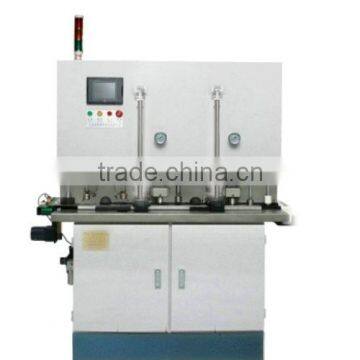

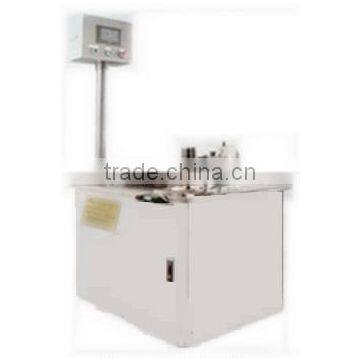

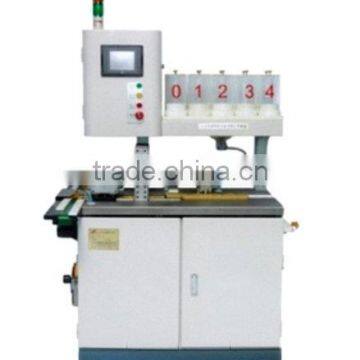

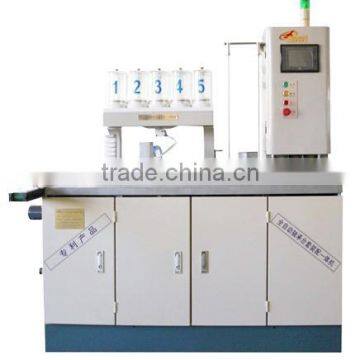

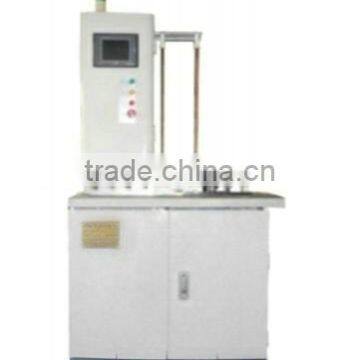

Full automaticcombination all-in-one machine for deep groove ball-bearings

Full automaticcombination all-in-one machine for deep groove ball-bearings

Work flow

Feeding→inspection for inner outer rings→calculate for inner outer rings→Supporting closed→riveting assembling for choosing balls→separating for choosing balls→separating for balls→vacuum inspection for balls→add upper retainer→add down retainer→flexible contraposition→vacuum inspection for nails→riveting→inspection for products→discharge

Function

>Inner and outer rings automatic loading;

>Automatic calibrating sample rings,measuring with the standard ones,

Adopting the form of nailing bearings and Italic import measuring instrument;

>Display of data including the press-fit count,the working position,the working position,the calculated statistics,the indication and the guideline of elimination;

>Inner and outer rings automatic choosing,the computer will choose fit rings respectively based on the meassuning data,NG goes into the loading plate by outer measuring,also it can be into line by inner measuring;

>And when the number of steel ball automatically checks, less since fil,lack the ball automatic alarm;

>Low breakdown rate,when there is wrong with PC sets,all of the work position go back to the beginning position;

>Steel ball 10 groups, can be set through by itself,inner and outer rings 10 groups respectively;

>Measuring mechanism;vacuum test used for missing ball,missing cage,multi-cage or mobile electric resistace in an leakage;

>Automatically discharging of each NG assortment;

>Inspection before;inventing missing cage,multi-cage,missing  nail,deformation;

>Inspection after;riveting can detect missing nall,missing cage,overtop very low and pressure;

>Have the multi-method detection of location number detection contact detection;

>Simple remodel and meet the production made of small-jot and composite variety;

>Simple remodel and meet the production made of smaa-jot and composite variety;

>Special mold design with ball gathering,separating added with retainer,non-damage steel ball and retainer;

>The cycle time is 2.5s-3.3s
