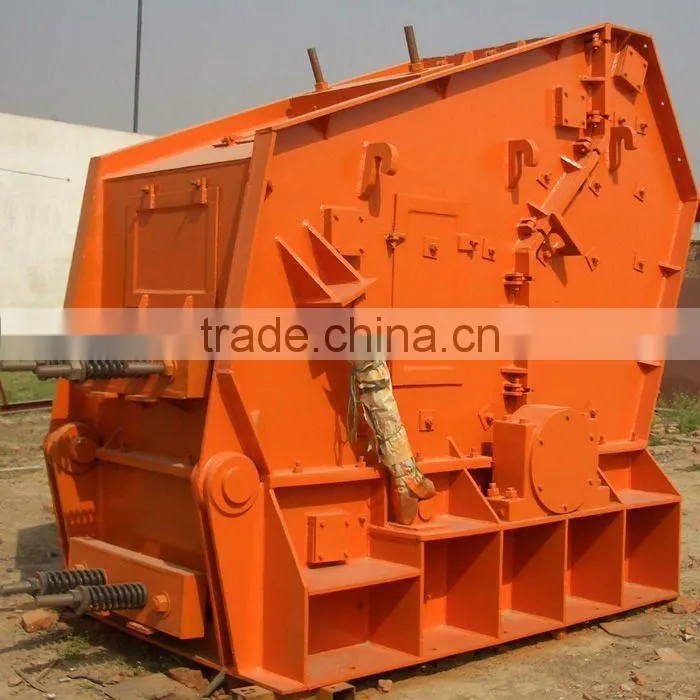

Impact Crushing Machine Professional Manufacturer
- 100 Set / Sets per Month
- TIANJIN SHANGHAI
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Impact Crusher | Capacity(t/h): | 10-350 |
Place of Origin: | Henan, China | Brand Name: | HT | Model Number: | Impact Crushing Machine Seller |
Product Description
Hot Sale Impact Crushing Machine
Impact crusher can be widely used in water, electricity, highway, artificial aggregate production, crushing business and so on. The type of impact crusher can be dealing with the material( (granit, limestone, concrete and so on) with the side length 500mm, not more than 350Mpa anti-pressure strength.
This series of impact crusher which is fit for hard rock crushing has special crushing structure, high chromium plate hammer, special impact plate.
Impact crusher supplied by Hongji Group can be adjusted so as to simplify the crushing circuit. Our impact crusher has the advantages of big crushing ratio, high crushing efficiency, cube showing of the product shape and optional crushing function.
Working Principle of Impact Crusher:
Impact crusher is the machine which breaks materials using the impact energy. The rotor rotates of our impact crusher with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that they spring back to hammer impacting area from impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1,2,3 impact cavity from big to small to take repeated crushing. When the material is crushed to the required size, it's discharged from the outlet. The material's discharging size and shape can be changed through adjusting the gap between impact frame and rotator.
Main technical parameters of Impact Crusher:
1.Connected with locking sleeve assembly.
2.Final product with cubical shape.
3.The blow bar with high chrome.
4.Easy maintenance. Hydraulic or hand opening.
5.Easy maintenance and reliable operation.
6.High reduction ratio and crushing efficiency.
7.No-board connection; The blow bar with high chrome (high chromed blow bar).
8.Impact plate with a special shape.
9.Crushed product with cubical shape.
Specifications of Impact Crusher
Model | specifications (mm) | Feeding size(mm) | Biggest size of material(mm) | Capacity (t/h) | Motor power(kw) |
PF-0607 | ø-644*740 | 320*770 | 100 | 10-20 | 30 |
PF-0807 | ø-850*700 | 400*730 | 300 | 15-30 | 30-45 |
PF-1008 | ø-1000*800 | 400*830 | 300 | 30-50 | 37-55 |
PF-1010 | ø-1000*1050 | 400*1080 | 350 | 50-80 | 55-75 |
PF-1210 | ø-1250*1050 | 400*1080 | 350 | 70-120 | 110-132 |
PF-1212 | ø-1250*1250 | 400*1300 | 350 | 100-150 | 132-160 |
PF-1214 | ø-1250*1400 | 400*1430 | 400 | 130-180 | 160-200 |
PF-1315 | ø-1320*1500 | 860*1520 | 500 | 160-250 | 180-260 |
PF-1320 | ø-1320*2000 | 860*2030 | 500 | 300-350 | 300-375 |
