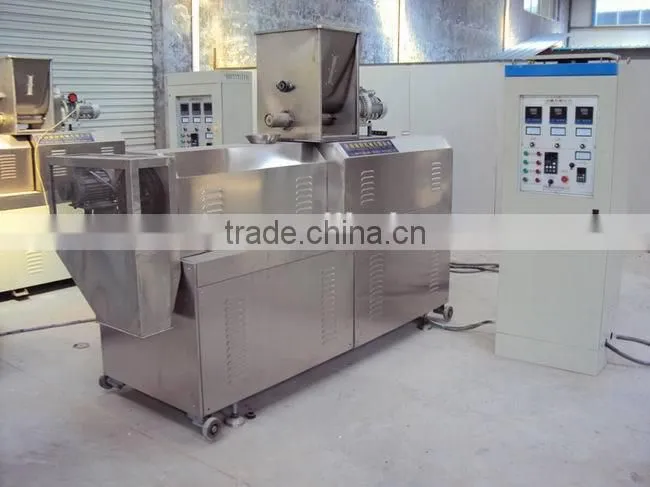

Popular Industrial Pet Food Processing Machine
1. The body shell of pet food processing machine is made of stainless steel material, to avoid getting rusty.
2. The machine consists of feeding system, extruding system, peeling systems, heating system, transmission system, control system.
3. It adopts advanced screw extrusion technology, the material can be formed through high temperature and high ressure pressure to extrusion molding.
4. With frequency control, it ensures the stability of the production process.
5. With automatic oil lubricating system, to prolong the using life.
6. The extruder can produce puffing food, floating fish feed, pet food.
Pet food processing machine parameter
| Model | Capacity | Installed power | Real power | Dimension |
| AZSPH-56 | 100-120KG/H | 23KW | 16KW | 2000X750X1600mm |
| AZSPH-65 | 150-180KG/H | 46KW | 30KW | 3500x1000x2000mm |
| AZSPH-70 | 200-250KG/H | 60KW | 45KW | 3600x1000x2000mm |
| AZSPH-85 | 300-500KG/H | 95KW | 80KW | 4500x1200x2300mm |
We have 3 capacity: 100-150kg/h, 200-300kg/h, 300-500kg/h. The floating fish feed and pet food line consists of 7 units of machines.
- Mixer
- Screw conveyor
- Twin screw extruder
- Air conveyor
- Electric oven for drying
- Flavoring line
Model |
AZSPH-56 |
AZSPH-70 |
AZSPH-85 |
Voltage |
380V/50HZ |
380V/50HZ |
380V/50HZ |
Installed Power |
66.84 kw |
97.65 kw |
146.65 kw |
Real Power |
47.84 kw |
76.65 kw |
97.05 kw |
Output Capacity |
100-150 kg/h |
200-250 kg/h |
300-500 kg/h |
Installation Size |
17.0 x1.2x 2.5 m |
18.0 x1.2x 2.5 m |
22.0 x1.2x 2.5 m |
Workers Required |
1 ~2 workers |
1 ~2 workers |
1 ~2 workers |
The pet food processing machine can produce fish feed and pet food with different shape, only need to change the mould, The shape of mould can be made according to your request.
Please do not hesitate to contact BELLA WU, if you need any more information or have any other questions. We will be at your service at any time.
