Reverse osmosis is a reverse migration movement of the infiltration. Driven by the pressure, it is a separation method which can separate the solute and solvent in the solution with the help of semi-permeable membrane’s interceptive roles. It has been widely used in the purification and concentration of various liquid. One of the most common examples is its usage in water treatment technics. With reverse osmosis technology, it can remove the inorganic ions, bacteria, viruses, and organic matter and colloidal impurities from the original water, so as to obtain high-quality pure water.
Reverse Osmosis membrane
Reverse osmosis (RO) membrane is a polyamide composite membrane which is composed by permeating liquid core columns, isolated networks, film, membrane and crust. Its filter aperture is only 0.0001 microns, the operating pressure is between 0.6-1.5 Map, and the desalting rate is high to 99%, so the chemical ions, bacteria, viruses are not passed and discharged with the wastewater. It only allows the water molecules and Oxygen molecules which are smaller than 0.0001 microns to pass, so as to achieve the purpose of purification.
Product advantage
The pretreatment machine makes good use of stainless steel multiple-medium filter, active carbon filter, ion exchanger to remove large particles and suspension effectively, which is aimed at improving water quality and enhancing input water index of RO membrane. At the same time it effectively discharges additional smell and residue chlorine, and improves the taste of water. The principle part is equipped with American efficient and low-voltage composite membranes; the desalination rate of each one is up to 99%. Imported from South Korean, the high and low voltage protection decreases the failure of the machine to 0. The effluent water is up to national purified water standard. All of the parts are integrated to one so that it is convenient to install and transport. Its structure is reasonable, and appearance is generous. Main components: RO membrane (United States), high pressure pump (Denmark Gelanfu), conductivity (Taiwan, China), high and low voltage protection (South Korean), steel (Japan). It is in particular for small and medium enterprises, the group hotels, living quarters, personal investment to establish water storage station and self feeding point.

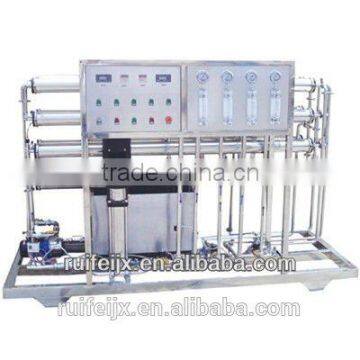

RF-ZYRO-4000L/H | |
Parameter index | |
Product |
One stage reverse osmosis machine
|
Model |
RF-ZYRO-4T/H |
frame |
Stainless steel |
|
Membrane shell and RO membrane
|
SUS304 stainless steel (or FRP),2pcs 8080# membrane shell, 4pcs 8040 Hydranautics membranes |
|
High pressure pump
|
CDL8-120 4.0KW,NANFANG |
|
Sophisticated filter machine
|
5um 30inches ,5pcs of cartridges |
|
Pipe fitting,valve
|
Material: SUS304 stainless steel,dia32-38mm pipe fitting ,valve
|
Chemical cleaning circle water tank |
201# thickness 1.0mm stainless steel, 200L |
Electrics |
automatically computer-controlled screen display panel controller |
Our company has rich experience to help customers to establish the different production lines for different use, for example: Soybean Processing Plants. Our Web: . We can arrange technical staff to help customer set up whole production line for mineral water, pure water. Coca-cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time, you will see the machine working and running condition in our factory!
