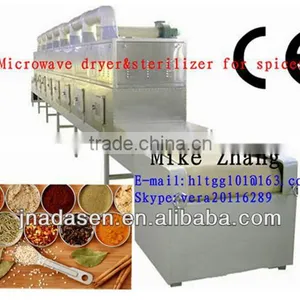

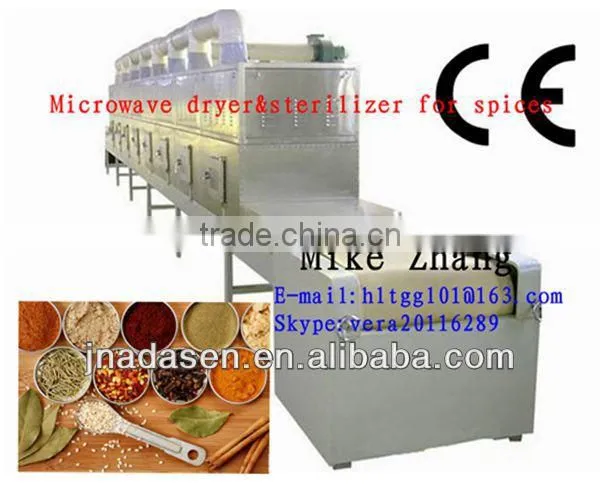

Industrial High yield conveyor belt type microwave oven for drying and sterilizing spices
1.save energy/efficient
2.easy to control
3.high quality CE
1.Application:
This machine fits for drying and sterilizing powder ,granular, sheet-like or gel-like food ,and additive, flavoring, medicine, raw material of herbal medicine, nutritional health products, agriculture & sideline products, non-fried(or oil-saving)instant noodles, noodles, rice powder noodles, soy products, beef jerky, preserved meat, dried fish ,tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food ,pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food ;and for drying beans; and for thawing the frozen fish ,poultry; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, cork, alveolate cardboard, corrugated ,and so on.
2.Introduction:
Dried beef is savory, making with various condiments with many technologies, so there are a lot of flavors to sufficiently satisfy the people everywhere. People are fond of dried beef as a sock during leisure time. In the past time, dried beef was produced by solarizing under the sun, drying or warming it by burning the soil, in these ways, the quality is bad and lead to serious pollution. Later, there were some factories to refine the technology that built steam baking room, so that the sanitary condition got improved and the dust, bacteria was decreased. However, there are three big problems in it. First: taking long time to dry it. After soaking and drying the beef, the water in it is about 30%, if it should meet the requirement that only 10%-12% water in it ,it must take a long time that limit the improvement of output. Second: This method consumes more vapor and electricity that result in high cost and low profit. Third: The
bacteria can’t be sterilized thoroughly, the sanitary index can’t meet the requirement.
I.Introduction to the equipment
It adopts the technology of radiation with several microwave sources and it is equipped with imported temperature controller, The heat is distributed evenly. It is installed suppresser against the microwave leakage at the heater's inlet and outlet for the materials. Its leakage index has met America UL standard, we can assure it is absolutely safe. During the course of roasting, the dried beef on the trays can rotate at stepless speed that is convenient for the adjustment of various technologies.
III. The key problems in the producing course
There a lot of flavors of dried beef produced by the different factories such as spiced beef, curry dried beef, spicy dried beef and so on. There are different preparation ways for different flavors, but the processing technologies of dried beef itself are similar, just as :select materials---steam and boil ---- slice --- infuse --- cool -- dry.
There are three common ways to make the beef:1.After preparing the seasoning extract ,stir-frying the sliced beef in the boiler, the time and fire should be noticed.2.After preparing the seasoning extract, boiling the sliced beef in the boiler, the time should be noticed. 3.After preparing the seasoning extract, boiling the slices in the boiler, then infusing it under negative air pressure in order to shorten the time.
The former one is economical, when dry and solarize it ,dust and other flies should be prevented, and longer time and more land area is needed ,the latter one can use steam baking house, or electrothermal baking house. General food factories all have steam furnaces, the ready-made steam is used that can save money.
IV. other application field
Microwave energy technology is able to successfully dry and sterilize the dried beef as well as the dried pork, chicken. It also can be used to ripe and sterilize the pastry, bake the melon seeds, process the bean flour and other foodstuff.
3.Reference technical parameters:
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency |
2450±50MHz |
Microwave input apparent power |
≤42KVA |
Microwave output power |
≥30KW |
Microwave power adjustment range |
0-30KW(adjustable) |
Ambient temperature |
-5-40°C |
Relative humidity |
≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
about10680*840*1750 mm |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery |

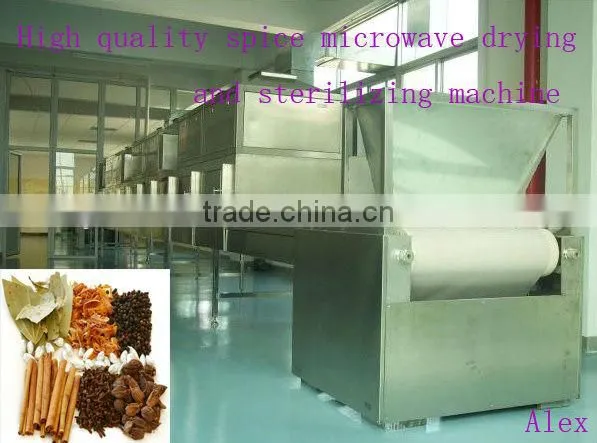

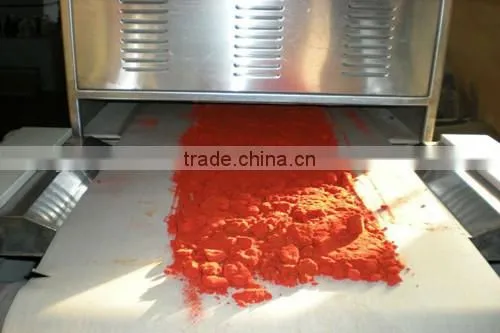

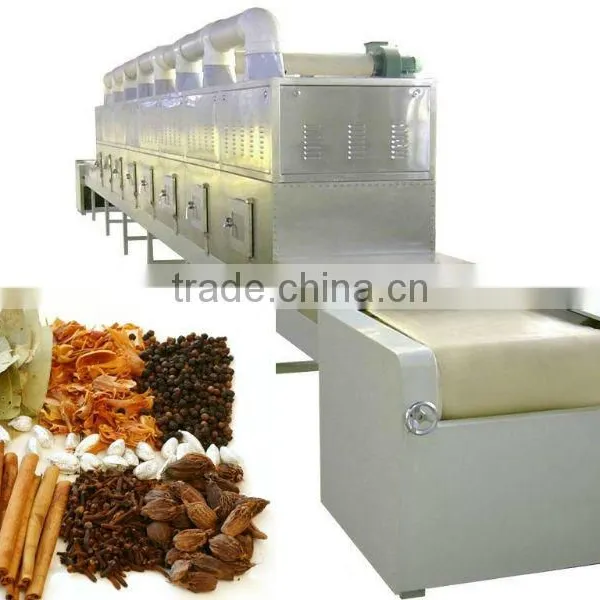

5.Reference pictures:
