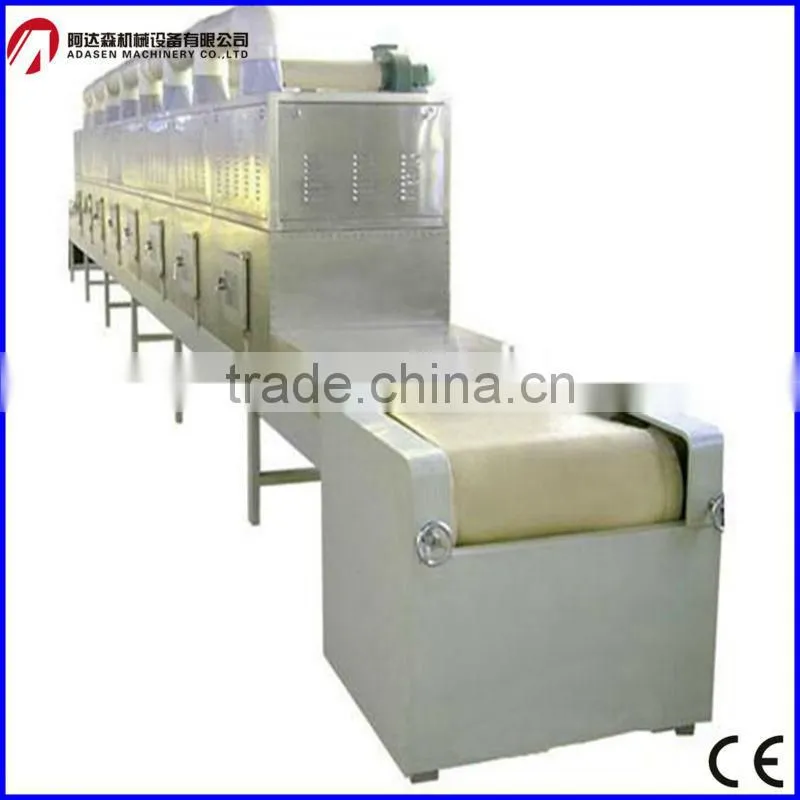

Industrial tunnel conveyor belt type raisins drying and sterilizing microwave oven
1.high efficient/energy
2.easy to control
3.high quality CE
1.Machine Description
1) Microwave equipment have covered the fields including sterilization,drying,defrosting,cooking,extraction,microwave pyrolysis,chemical reaction,ceramic sintering and so on.
2) Our microwave equipment have many model for your choice,Able to drying and sterilizing more capacity of material.
3) The equipment is made of high quality 304#stainless steel,compact structure,no energy dissipation,save energy.Tunnel type design,cover small area,fast drying and sterilizing,continuous production.
4) Adopt highquality Panasonic magnetron,long life,best effect.And drying and sterilization,keep material character perfect ,keep original ingredient.
5) Fast drying,short drying time,low energy consumption,paperboard is uniform,smooth,no deformation.Sterilization ,drying, mould proof and insecticide are processed at the same time.Compared with order dryer,save 2/3 drying time and 1/3 electrical energy.
6) Easy to operate,save the production cost.
7) Fast and uniformly heating,the high degree of automation.
8) Very suitable for heating poor thermal conductivity products.
2.Technical parameters
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency |
2450±50MHz |
Microwave input apparent power |
≤42KVA |
Microwave output power |
≥30KW |
Microwave power adjustment range |
0-30KW(adjustable) |
Ambient temperature |
-5-40°C |
Relative humidity |
≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
about10680*840*1750 mm |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery |
3.Guarantee and after-sales service
For the whole equipment,warranty is 12 months,within 12 months,if have equipment quality problems,we will provide accessories freely. After the expiration of the warranty period,if have spare parts problem,we only receive the cost of required replacement parts.We commit we will provide free technical support of equipment all whole life.
If you have any questions about our equipment,please feel free to contact me!
