Specifications
paper microwave drying machine for paper tube1.Heating rapidly and uniformity
2.Technology advanced and easy to control

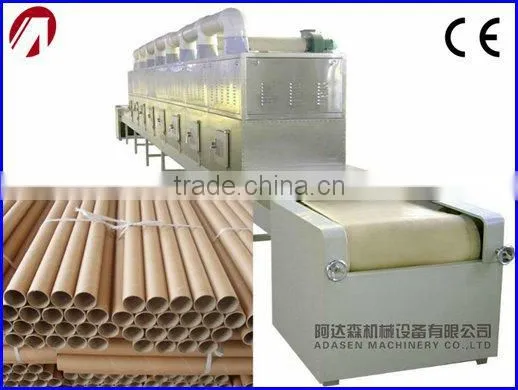

paper microwave drying machine for paper tube
Our products can be according to your need to any form of inspectors paper products, can be board, can be a paper bag and so on, but also can choose to the shape of the paper products. Our products are high efficiency energy saving, advanced technology, easy control, reduce cost, comprehensive mentioned
Technical parameters
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
|
Microwave Output Frequency
|
2450±50MHz |
Microwave input apparent power |
≤70 |
Microwave output power |
≥50 |
Microwave power adjustment range |
0-50KW(adjustable) |
Ambient temperature |
-5-40°C |
Dehydrate |
50kg/h |
Relative humidity |
≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
11810*1440*1750 mm |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/m^2) |
Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security index |
The main features:
1, Fast heating. Microwave heating is completely different with traditional heating mode. It makes heating medium
become heater, do not need heat transfer process. Although thermal conductivity is poor materials, also can
achieve heating temperature in a very short time.
2,Save energy and efficiency. Because materials contain water absorb microwave easily and fever, so in addition to a
small amount of transmission loss outside, almost no other loss, so high thermal efficiency, save energy.
3, Heating even. No matter how shape of each part of the body, microwave heating all can make the object and
evenly infiltration and electromagnetic wave list to produce the heat. So heating good uniformity, won't appear the
endogenous phenomenon focal.
4, Mouldproof, sterilization, fresh. Microwave heating has thermal and biological effect, can sterilize and mould proof
in low temperature. Due to heating rapidly, the time is short, can maximum limit save material activity and the
vitamin original colour and lustre and nutrition of food.
5, Craft is advanced, control easily. Microwave heating just have the basic conditions of water, electricity, as long as
control power, can realize microwave heating or terminate immediately, use microwave equipment can process
automation control of heating process and heating process specification.
6, Covers less area, safety and harmless. Because microwave can be controlled in made of metal heating indoor
and wave, so microwave leak is few, no radiation hazards and harmful gases, do not produce the waste heat and
dust pollution; Neither polluting food, also do not pollute the environment.
From the economic efficiency analysis, microwave drying also have advantages than traditional methods , such
as compared with the far infrared drying, usually save energy more than a third.
In actual work,microwave dry and sterilization equipment basically use in material with low moisture (moisture
content below 30%). Also can be used for high moisture.At this time, traditional drying method (hot air, electric oven
d )drying rate low, consume energy , and tunnel type microwave drying equipment from start to finish drying ,need
three to five minutes. Traditional methods, equipment, covering a large area, many employees, often have the
pollution, fire control, etc.
