Help CenterJN-30 Tunnel Microwave Drying Sterilizer Machine for Talcum Powder--SS304
Related Products
Specifications
Tunnel Talcum Powder Microwave Conveyor Sterilizer1 save energy
2 fast drying&sterilizing
3 SS304,CE
JN-30 Industrial Tunnel Conveyor Belt Type Microwave Drying Sterilizer Machine for Talcum Powder--SS304 Features:
1.Application:
The equipments are used for the rapid desiccation of power ,granular,pasty materials,such as Glass fiber, chemical raw materials, cellulose (eg hydroxyethyl cellulose, carboxymethyl cellulose, etc.), mannitol, nickel hydroxide, lithium cobalt oxide, graphite, carbon brushes, silicon carbide, calcium chloride dihydrate, activecarbon, zirconium oxychloride, zirconium oxide, copper oxide, aluminum oxide, zirconium hydroxide, zirconium carbonate, copper carbonate, manganese carbonate, is zirconium sulfate, ammonium zirconium carbonate, zirconium silicate, zirconium potassium carbonate, oil-based ink drying agentcross-linked anti-agent, water-based ink, expandable graphite, a variety of ceramic zirconium oxide, iron oxide, cobalt oxalate etc.Water content from 40% to 0.5% after drying ,drying time only need 5~6 minutes,temperature can be controlled in 0~200celsius degrees.
2.Advantages:
Moisture of chemical products is very low in general,such as ammonium chloride (1%),products purple(4%)have drying process in the production .
Traditional crafts often use steam-heated drying,long production cycle,dried quality is poor,such as copper sulfate,although centrifugal dewatering,but there is still a small amount of absorbed water stained ,in order to dehumidify these stained water ,while heating using steam ,must evaporate absorbed water and copper sulfate materials,require more heat to complete the drying task.Microwave heating features:
1 Penetrating whole heating,microwave can penetrate material internal,heating inside and outside at the same time,the heating rate is very fast;
2 Selective heating,due to the different electrical characteristics of material media,water and material have different microwave absorption capacity,microwave is preferred role to the materials that have strong absorption ability.
Use microwave heating characteristics,not only can shorten the production cycle,improve product quality,save energy(efficient),but also can improve the working environment,there is no dust pollution.Therefore, chemical products drying is playing advantages of microwave heating and drying technology.
3.Technical Parameters:
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency |
2450±50MHz |
Microwave input apparent power |
≤21KVA |
Microwave output power |
≥15KW |
Microwave power adjustment range |
0-15KW(adjustable) |
Ambient temperature |
-5-40°C |
Dehydrate |
15~20kg/h |
Relative humidity |
≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
8420*840*1750 mm |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety |
accord with GB-5226Electrical safety standard |
accord with a country GB16798-1997 Food machinery health security index | |
NOTE |
We can design according to your requirements! |

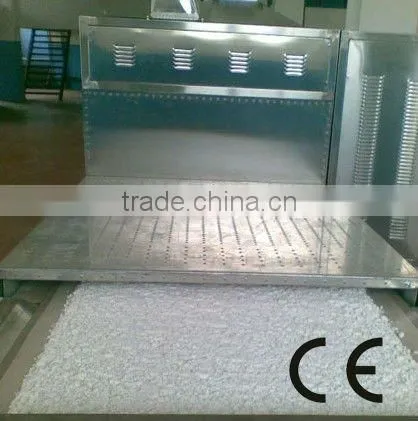

4.Reference pictures:
