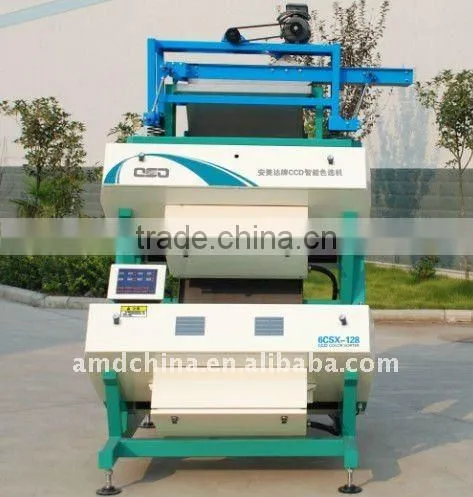

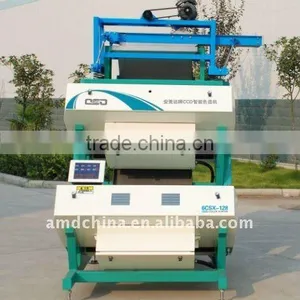

Help CenterTea Color Sorter
Related Products
Specifications
Tea color sorterccd technology, suitable various of tea, high efficiency, good quality and low price.
Technical Characteristics:
1. Adopt double-layer design, reduce percentage of damaged seed and improve the purity of finished product; suitable for color sorting of various teas;
2. Adopt two sets of vertical feeding system and flat slide, the tea leaves can falls down more evenly;
3. Adopt a bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;
4. Adopt real color 8.4 display; equipped with high-reliability four-wire resistance touch screen; correct location of touch screen at any time; user-friendly operation interface; simplified Chinese operation, simple and easy to learn;
5. Simple and easy maintenance; easy to replace the light source and magnetic valve.
6. Automatic malfunction indication and one key recovery function;
7. Highly corrosion resistant appearance, nice and durable.
| Machine Type | ZK-SC2 | ZK-SC3 | ZK-SC4 | Model | 6CSX-128 | 6CSX-192 | 6CSX-256 | Output (kg/h) | 350 | 420 | 580 | Sorting Accuracy (%) | ≥99 | ≥99 | ≥99 | Voltage | 220V 50HZ | 220V 50HZ | 220V 50HZ | Power (kw) | 1.8 | 2.0 | 2.8 | 0.8kw | 0.8kw | 0.8kw | Air Pressure (Mpa) | ≥0.6 | ≥0.6 | ≥0.6 | Air Consumption (L/min) | 1.0-2.0 | 1.5-2.5 | 1.5-3.0 | Weight (kg) | 750 | 860 | 960 | 1310×2000×2200 | 1510×2000×2200 | 1910×2000×2200 |
| Finished Product of Round Tea | Unqualified Round Tea | Finished Product of Strip Tea | Unqualified Strip Tea |
|
|||
| Sorted Tea | Sorted Tea Stem |
The above are photos of parts of tea sorting effect
Notes:
Installation
In order to keep a good working condition of color sorter, please avoid vibration and other interference.
Environment
Keep the color sorter under the suitable room temperature (10-30°C), with the minimum dust interference, and good ventilation installation; good environment plays an important role in working condition and service life of color sorter.
Light
Avoid direct sunlight. Otherwise, it will influence its sorting effect.
Maintenance
As the color sorter works, please don’t open the cover of sorting box to avoid that the dust enters and damages the CCD lens. If there is dust on the lens, please clean with the special lens paper; regularly remove the dust on the color sorter and clean the filter.
