Specifications

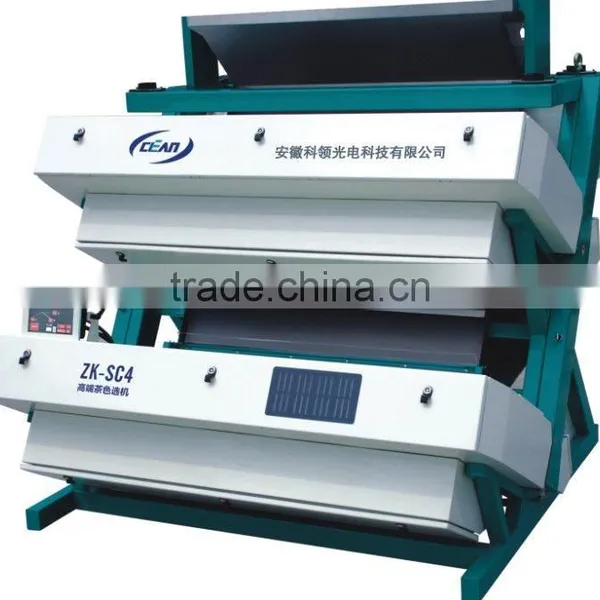

Colorized Sorter | Used for separating different tea.
Technical Characteristics:
1. Adopt double-layer design, reduce percentage of damaged seed and improve the purity of finished product; suitable for color sorting of various teas;
2. Adopt two sets of vertical feeding system and flat slide, the tea leaves can falls down more evenly;
3. Adopt a bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;
4. Adopt real color 8.4 display; equipped with high-reliability four-wire resistance touch screen; correct location of touch screen at any time; user-friendly operation interface; simplified Chinese operation, simple and easy to learn;
5. Simple and easy maintenance; easy to replace the light source and magnetic valve.
6. Automatic malfunction indication and one key recovery function;
7. Highly corrosion resistant appearance, nice and durable.
Machine Type |
SC2 |
SC3 |
SC4 |
Model |
6CSX-128 |
6CSX-192 |
6CSX-256 |
Output (kg/h) |
<350 |
<420 |
<580 |
Sorting Accuracy (%) |
≥99 |
≥99 |
≥99 |
Voltage |
220V 50HZ |
220V 50HZ |
220V 50HZ |
Power (kw) |
1.8 |
2.0 |
2.8 |
Motor Power (kw) |
0.8kw |
0.8kw |
0.8kw |
Air Pressure (Mpa) |
≥0.6 |
≥0.6 |
≥0.6 |
Air Consumption (L/min) |
1.0-2.0 |
1.5-2.5 |
1.5-3.0 |
Weight (kg) |
750 |
860 |
960 |
|
Overall Dimension (mm) Long * Width * Height |
1310×2000×2200 |
1510×2000×2200 |
1910×2000×2200 |
Notes: The performance parameters in the above table take black tea with color sorting content of 5% and moisture no more than 8% as example; the specific index may change according to different impurity content of tea.
The data mentions above are for reference only. The parameters are subject to change without notice
