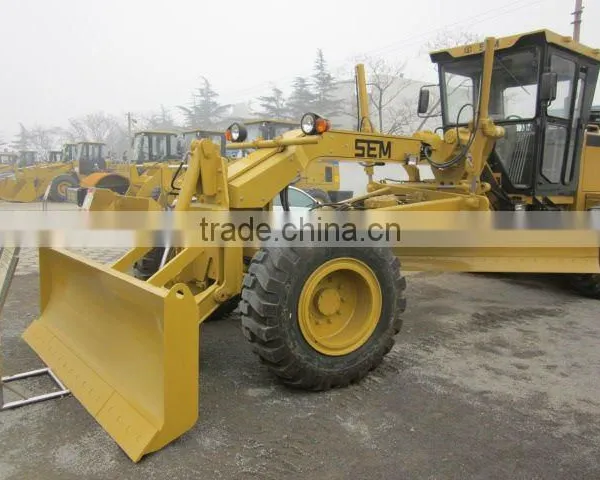

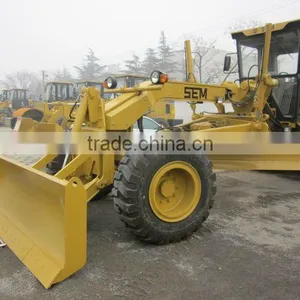

190HP 15TON SEM921 Motor Grader WITH SHANGCHAI Engine

190HP 15TON SEM921 Motor Grader WITH SHANGCHAI Engine photo-1
US$ 35,000 - 160,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name SEM
Model Number SEM921
Weight 15130KG
Certification ISO CE
After-sales Service Provided Overseas service center available

 motor grader



Main specifications

Overall weight

15,130 kg

Blade length

3974 mm

3974 mm

≥78 kN

Engine

Rate power

140kW/190HP

Rate speed

2200rpm

Model

Shangchai SC8D190.1G2

Max Torsional force

720 Nm

Scraper knife

Max lifting height

475mm

Max Cutting depth

715mm

Max lean angle of front wheel

40º

Max rear incline angle

Tyre

Model

17.5-25

Hydraulic system

Force

22 MPa

Steering system

Max oscillation angle of front axle

47.5°

Min turning radius

≤7.8m

Concatenationtransmission box

Front side upper angle

15°

Rear side upper angle

25°

Gearbox

Model

6WG180

Max speed

40km/hr

  190HP 15TON SEM921 Motor Grader WITH SHANGCHAI engine
