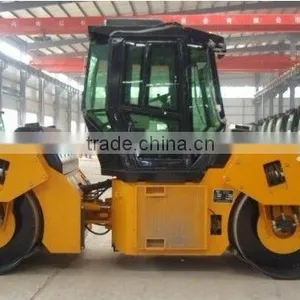

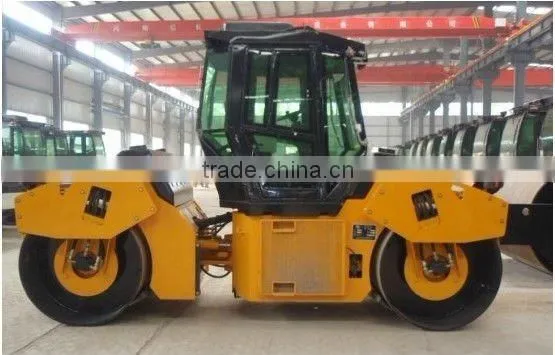

Help CenterLTC212 Hydraulic Vibratory Road Roller
Related Products
|
|
LTC212
|
Operating mass |
kg |
12000 |
Font axle load |
kg |
6000 |
Rear axle load |
kg |
6000 |
Stactic linear load |
N/cm |
286 |
Form of frame |
|
fork-type |
Crabwise movement distance |
mm |
±170 |
Water tank capacity |
L |
2x600 |
Fuel tank capacity |
L |
154 |
Hydraulic tank capacity |
L |
65 |
Vibration fraquency |
mm |
|
High ampl |
|
0.8 |
Low ampl |
|
0.4 |
Vibration fraquency |
hz |
|
High ampl |
|
40 |
Low ampl |
|
46 |
Centrifugal force |
kN |
|
High ampl |
|
160x2 |
Low ampl |
|
90x2 |
Travel speed |
km/h |
0-12 |
Turning radius |
mm |
7000 |
Grade ability |
% |
40 |
Steering angle |
|
±35 |
Drum diameter |
mm |
1350 |
Drum width |
mm |
2100 |
Drum rim thickness |
mm |
20 |
Transverse swing angle of the vibrating wheel |
|
±8 |
Type of water spray |
|
pressure |
Wheel base |
mm |
3717 |
Overall length |
mm |
5062 |
Overall width |
mm |
2250 |
Overall hieght |
mm |
3000 |
Ground clearance |
mm |
324 |
Diesel model |
|
6BT5.9 |
Diesel power |
kW |
110 |
Diesel speed |
r/min |
2300 |
Guarantee Time: one year or 1500 working hours which comes first after the date of B/L.
